Description

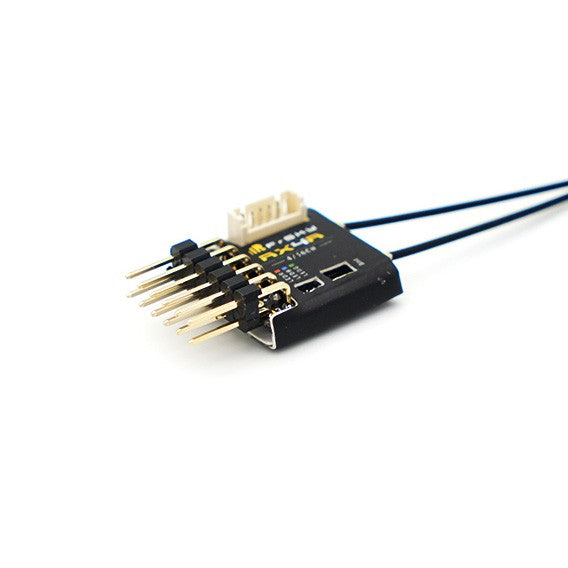

The RX4R is a standalone receiver with all the functions of X4R, it features 4 PWM outputs with high precision and low latency. The PWM output latency is 9ms less than that of the X4R in high-speed mode. The RX4R also supports the redundancy function, this means you can add another receiver as a back-up in case the first one fails. Last but not least, the RX4R and the whole RX-line has a 40% increased operating range compared to the previous X series receivers.
SPECIFICATIONS
- Dimension: 18×17×7mm (L×W×H)
- Weight: 2g / 2.4g (with two antennas)
- Number of Channels: 16CH (1-4CH PWM from conventional channel outputs, 1-16CH from SBUS OUT port)
- Operating Voltage Range: 3.5V-10V
- Operating Current: 100mA@5V
- Operating Range: >2km
- Servo Frame Rate: 9ms (HS—High Speed Mode)/18ms (FS—Normal Speed Mode)
FEATURES
- Small and High sensitivity (40% Increase of the range compared to previous X series receivers)
- Higher precision PWM
- Low latency PWM output
- Lower power consumption
- Redundancy function supported
- Smart Port enabled and telemetry data transmission supported
- Battery voltage detection supported

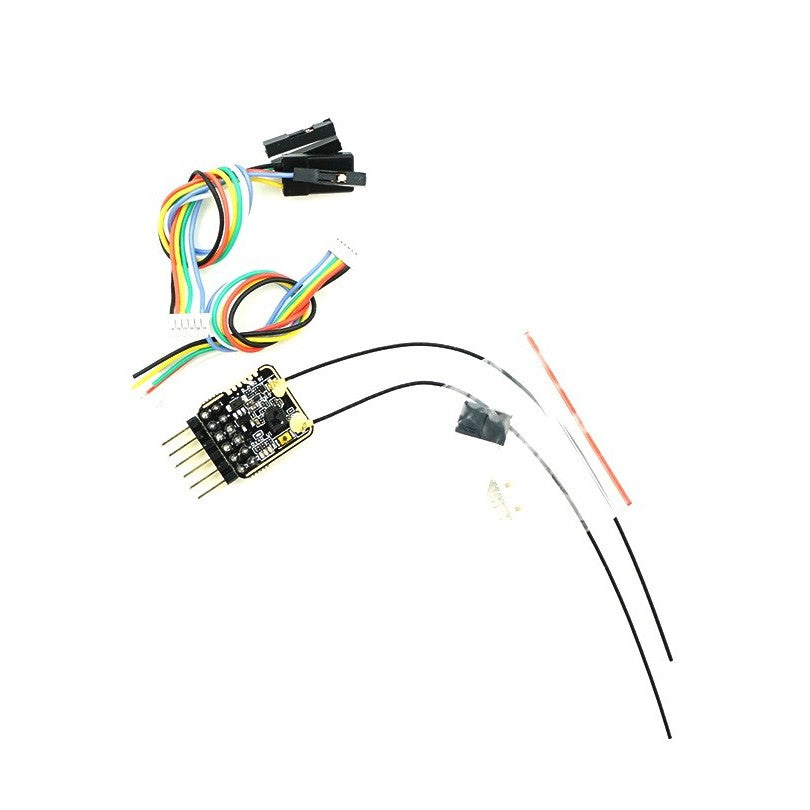

- 2 detachable IPEX 4 connector antennas
- PCB protection with the conformal coating craftwork
