Descripción

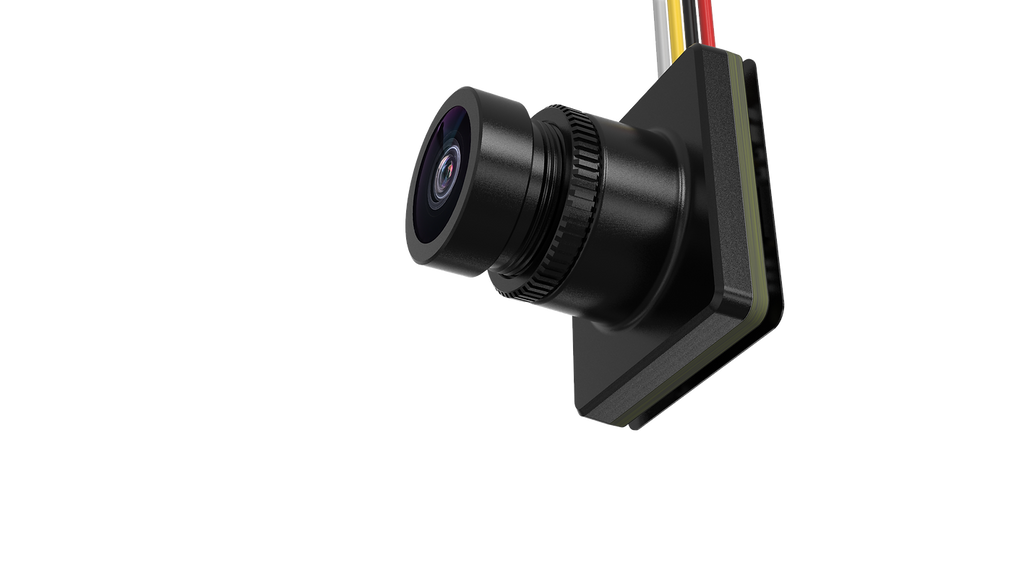

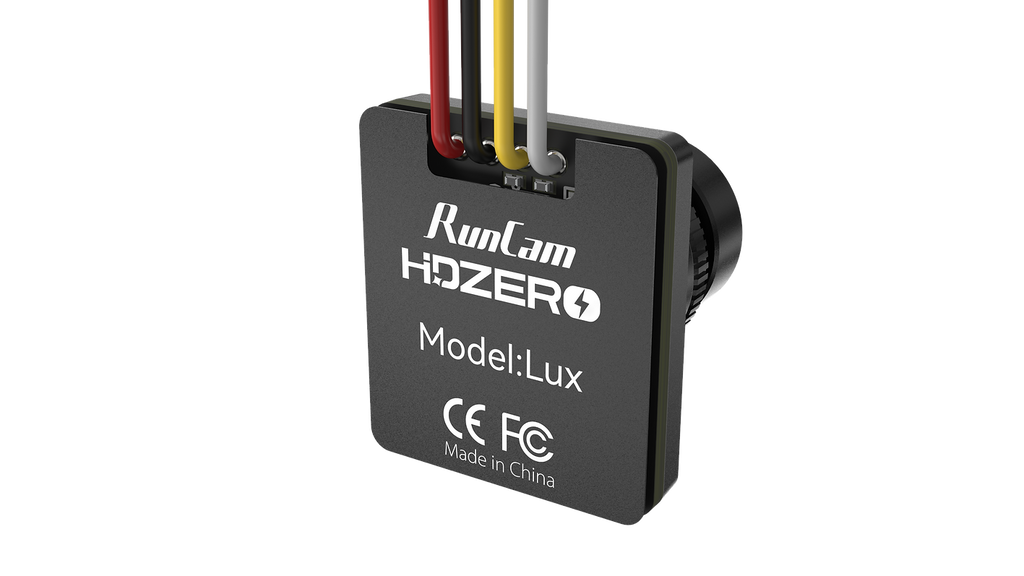

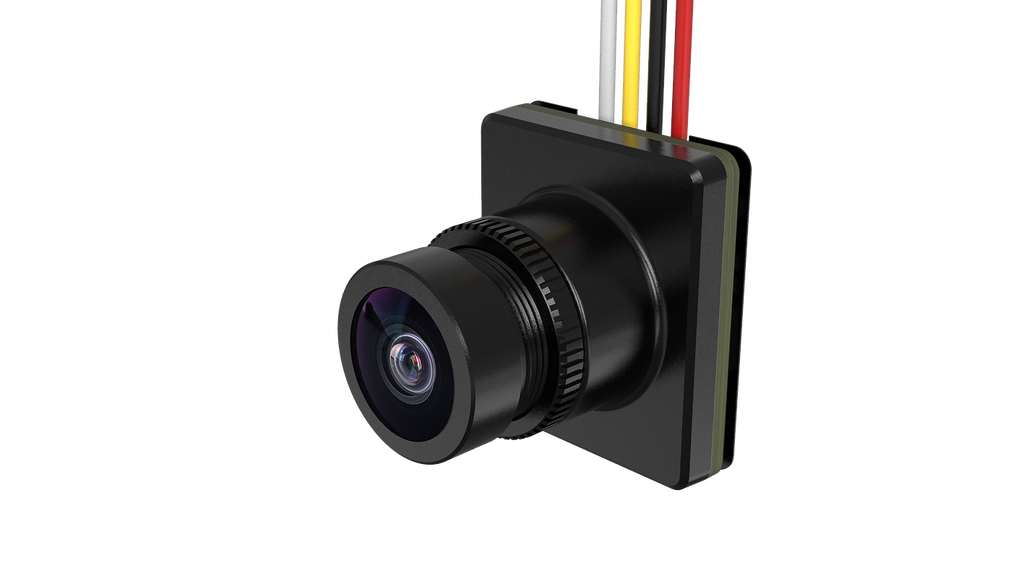

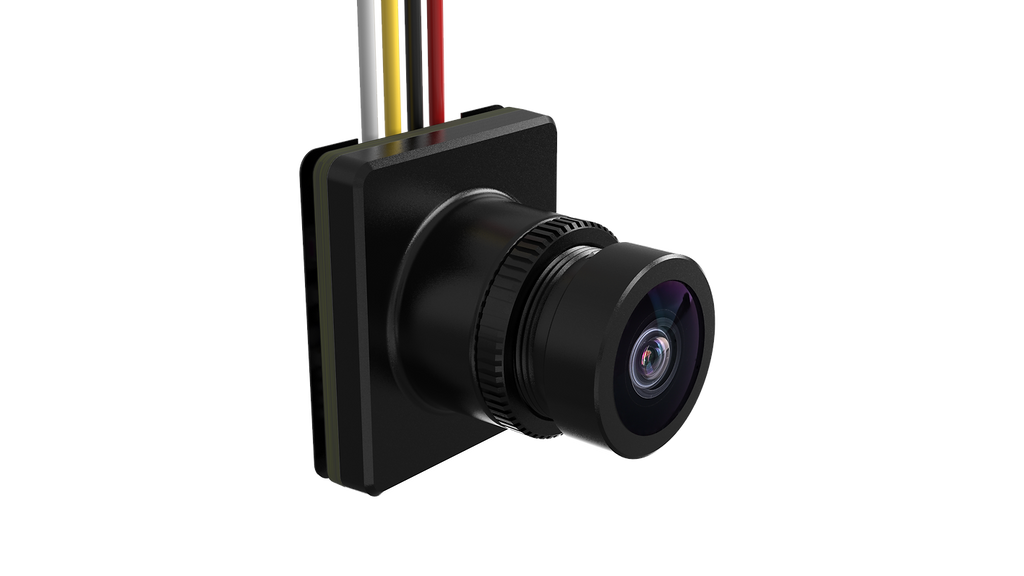

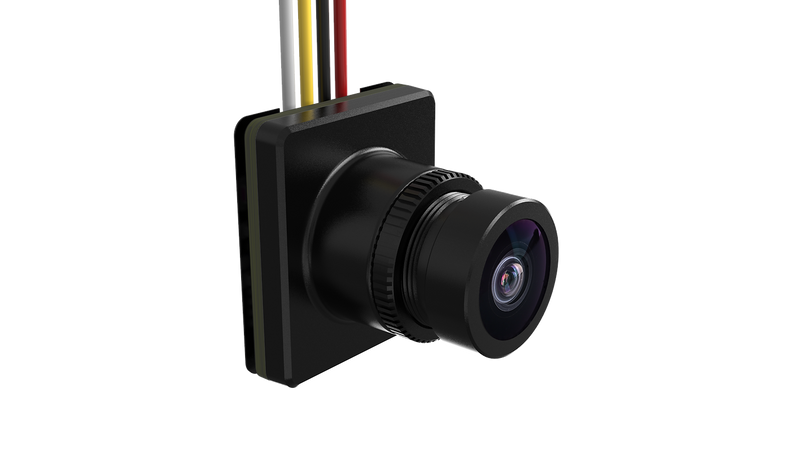

The Runcam HDZero Lux camera is compact, lightweight, and durable, making it perfect for whoop and micro drones. It features a half-inch CMOS sensor that delivers sharp image quality and excellent low-light performance. The camera outputs HD composite video via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability.
Optimized for a 4:3 aspect ratio, it can also be configured for a 16:9 aspect ratio with a reduced vertical FOV. Designed meticulously for ultra-lightweight drones like Tiny Whoops, where every fractional of a gram matters, the camera boasts a large 94-degree vertical FOV, ideal for fast indoor and outdoor proximity flying.
Specifications
- Manufacturer: RunCam
- Model:HDZero Lux
- Sensor Size: 1/2 inch
- Resolution: 720@60fps
- Sensitivity: 10650mV/Lux-sec
- Shutter: Rolling Shutter
- FOV:D:155° H:126° V:94°(4:3) D:170° H:145° V:82°(16:9)
- Input Power: 3.3~5V
- Power Consumption: 0.5W
- Weight: 2.3 g
- Dimensions: L14mm*W16mm*H14mm
How to change 4:3/16:9
The HDZero AIO5 and LUX VTX lack a communication mechanism to automatically retrieve the Lux camera settings, such as aspect ratio. Users need to manually set the aspect ratio for both the AIO5/ECO VTX and the Lux camera. Here’s a short video demonstrating how to do that:
https://youtu.be/aenS9-K2mU4?si=9znMQGq9YQZuYC5T
