Descripción
SPEEDYBEE ADAPTER 3
NO LAPTOP, NO POWER BANK, AND NO LIPO CHECKER IN YOUR FPV BAG.
Turn your smartphone into your mobile FPV companion
Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere.
Or flash the latest version of Betaflight/Emuflight/INAV in just 2 minutes before your flight session.
The choice is yours.
The choice is yours.
Analyzing Blackbox data has never been easier
No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight.
Get the most out of your practice sessions now.
Get the most out of your practice sessions now.
*Currently supports Betaflight and Emuflight only
Configure your BLHeli_S ESCs wherever you want
Why stop at flight controller? Change your BLHeli_S ESCs setting or update the firmware anytime, anywhere. Broken motor?
Solder it up, take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app
- now supporting BLHeli_32 and BLHeli_S ESCs.
- now supporting BLHeli_32 and BLHeli_S ESCs.

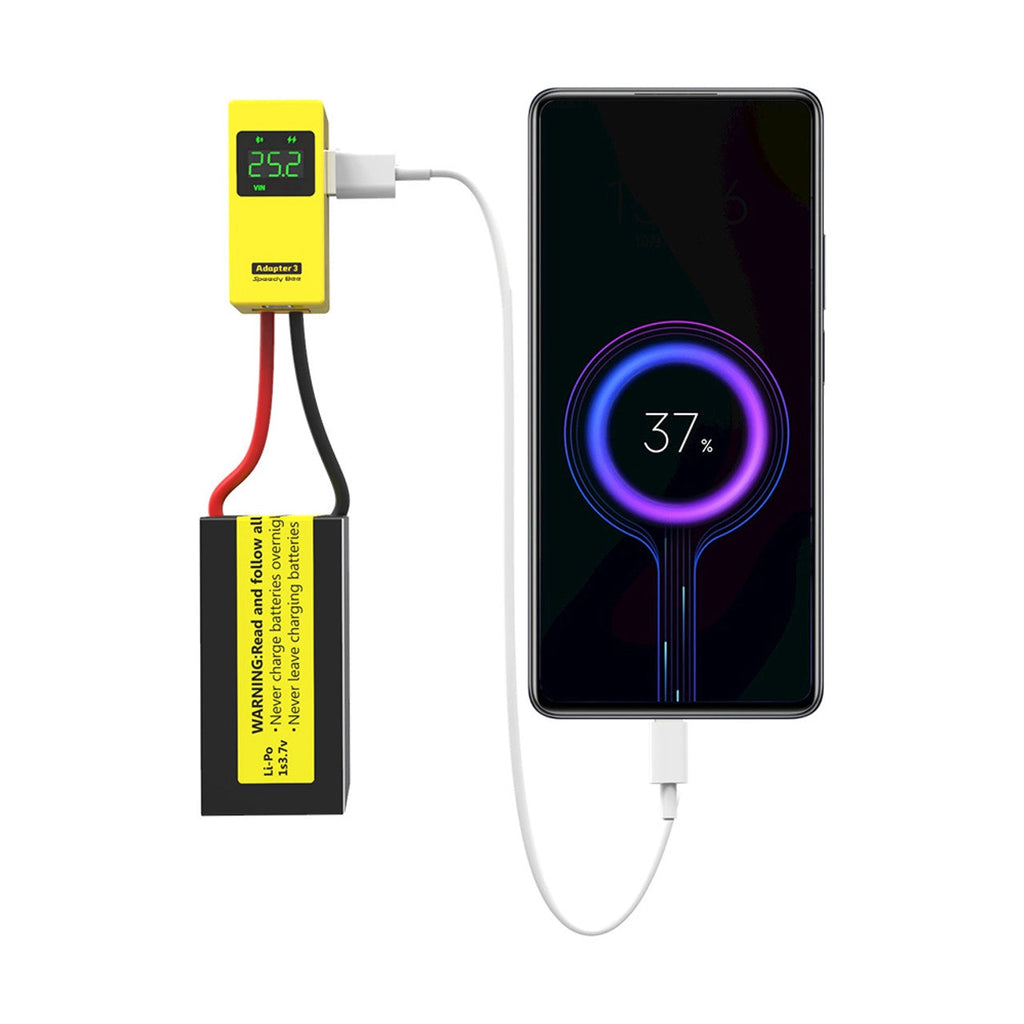

Your LiPo batteries = Powerful 30W power banks
Connect SpeedyBee Adapter 3 to a LiPo battery and charge your mobile phone* and tablets when youneed them the most.
Supports mainstream QC3.0/AFC/Apple 2.4A (iPhone 6s and above) and other fast charging protocols with charging
power up to 30W. Complete with over-current protection, short-circuit protection andover-temperature protection to protect
your gadgets from unwanted accidents.
power up to 30W. Complete with over-current protection, short-circuit protection andover-temperature protection to protect
your gadgets from unwanted accidents.
| Phone Model | Battery Capacity | Battery level after half an hour of charging |
| Mi 11 Ultra | 5000mAh | 52% |
| Samsung S10 | 3400mAh | 49% |
| HUAWEI P40 Pro | 4400mAh | 45% |
| iPhone 11 | 3110mAh | 22% |
*Charging function requires 2S LiPo and above.
Forgot your LiPo checker? Worry not
Connect your 1S - 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*.
The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
*GREEN(>80%), WHITE(40-80%) and RED(<40%).

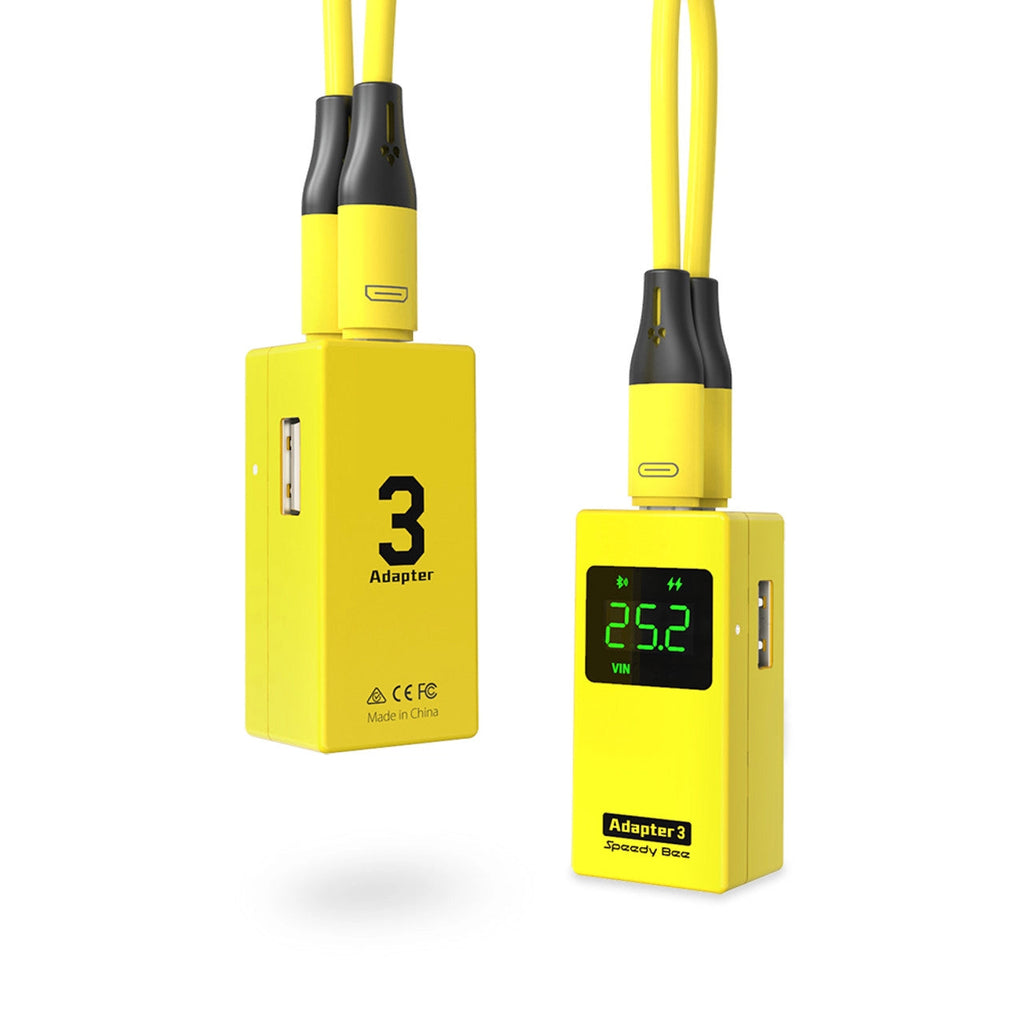

MicroUSB or Type C? Why not both?
SpeedyBee Adapter 3 comes with a dual-head data cable, with MicroUSB 2.0 and USB 3.0 Type C connector on each end. No more worries about connector
compatibility regardless of what flight controller you are using in your build.
compatibility regardless of what flight controller you are using in your build.
WiFi + Bluetooth = the best of both worlds
Use Bluetooth for quick access to your firmware configurator, or switch to Wi-Fi to flash firmware or download Blackbox data at a higher speed.

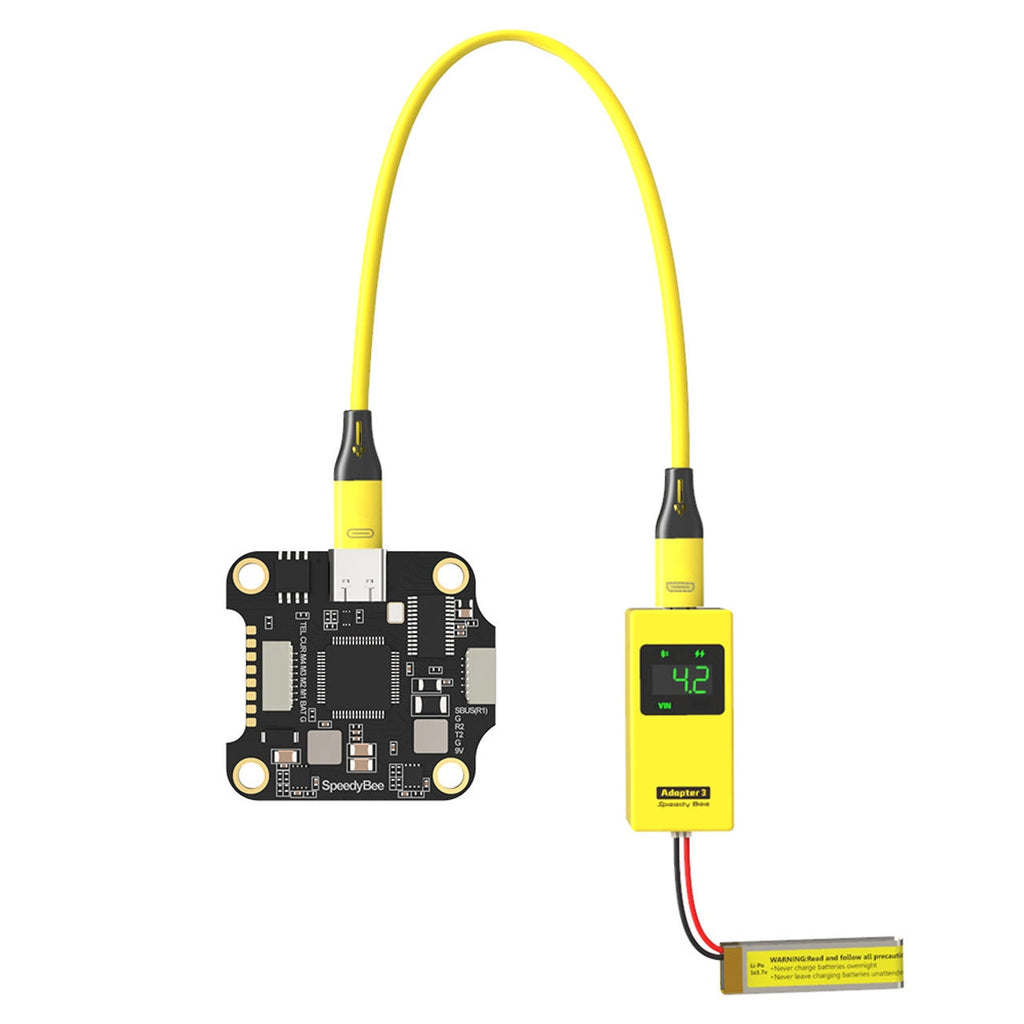

And all you need is just one LiPo
Access the configurator function using any LiPo batteries available to you. Supports all 1S - 6S LiPo with PH2.0 or XT60 connectors.
Plug in that beefy 6S 1500mah, or that tiny 1S Whoop battery (minimum voltage 3.8V), to the SpeedyBee Adapter 3
you are ready to access the configurator.
you are ready to access the configurator.
Specifications:
- Product Name SpeedyBee Adapter 3
- Power Input Voltage Range 1-6S(3.8V+ for 1S)
- Power Input Connector XT60-Male, PH2.0 male
- Required Mobile Device System Version Android 7.0+ | iOS 12.0+
- Supported SpeedyBee App Version V1.6.1 + for iOS | V1.5.6+ for Android
- Maximum Output Current for flight controllers 700mA @5V
- Fast Charging Output interface USB A Port
- Minimum Input Voltage for Charging output 7.4V(2S LiPo)
- Supported Fast Charging Protocol • QC3.0/QC2.0
- • AFC
- • FCP
- • SCP/High SCP
- • PE2.0/PE1.1
- • SFCP
- Max Fast Charging Current 3.5A
- Max Fast Charging Power 30W
- Case Material ABS + PC
- Liquid Silicone Cable Length 12.4cm
- Dimension(Main Body) 24.8*21.8*53.6mm
- Net Weight 35g

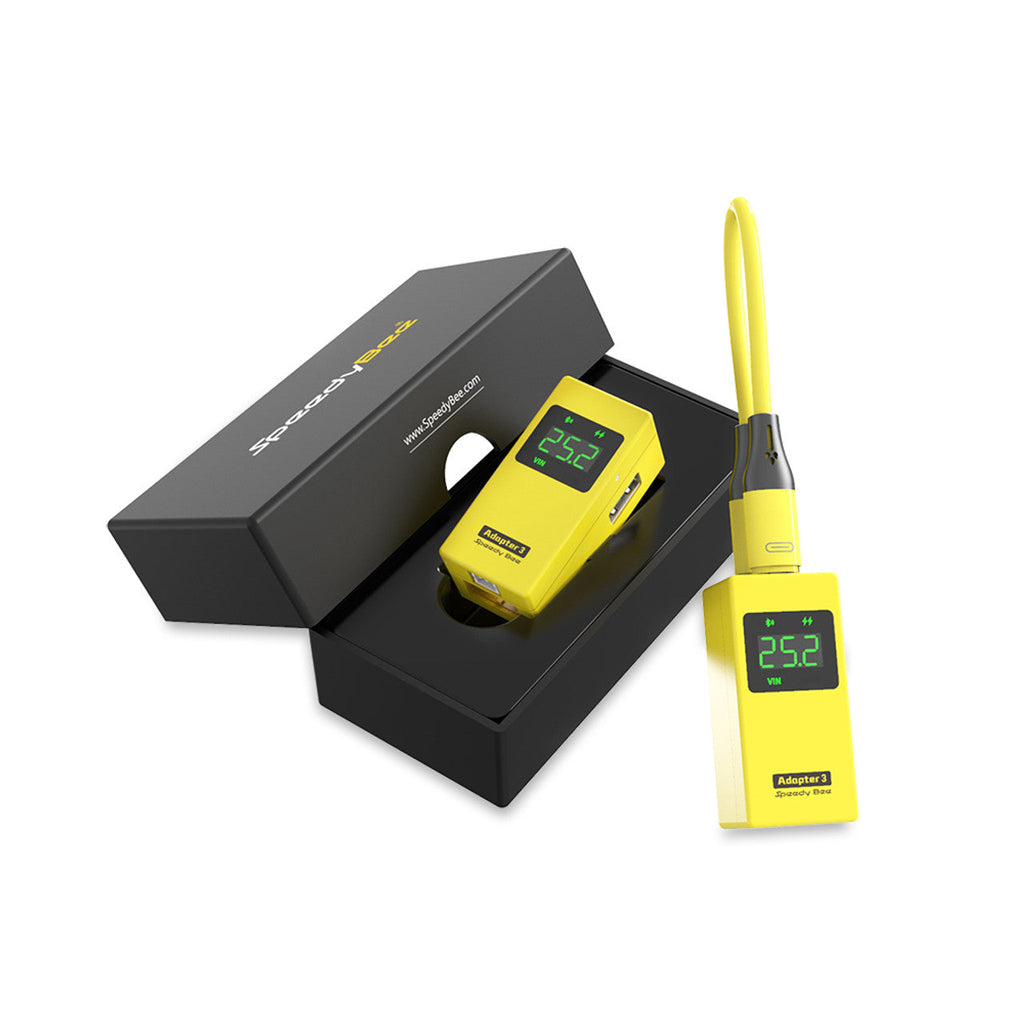

- Package
- 1 x Adapter 3
- 1 x Manual Card
