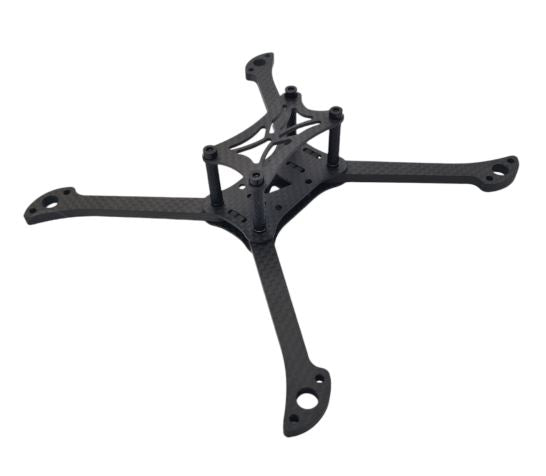

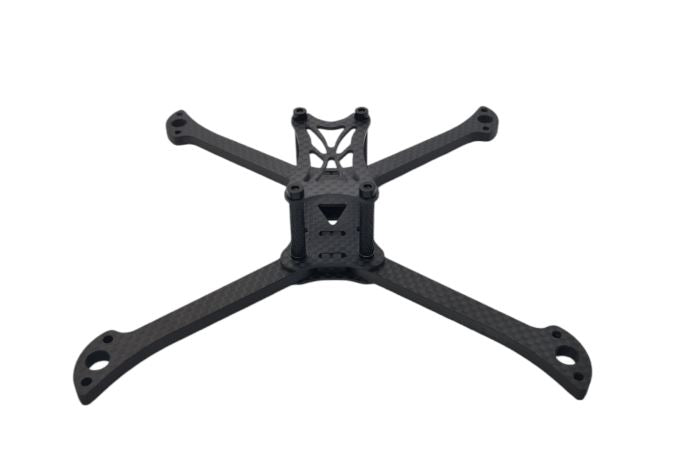

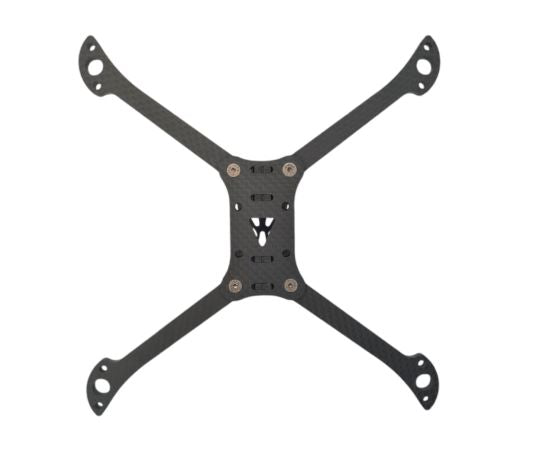

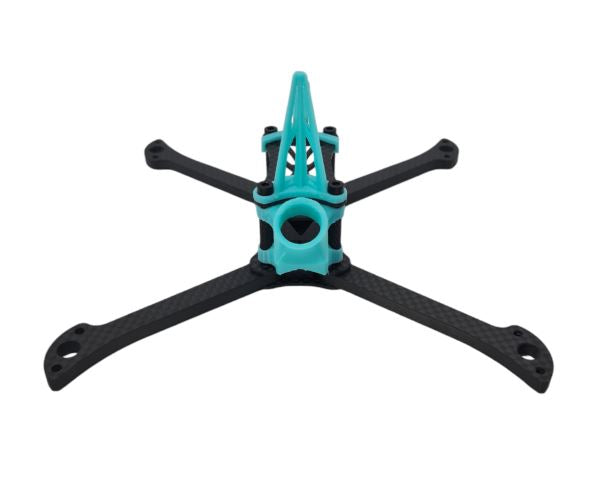

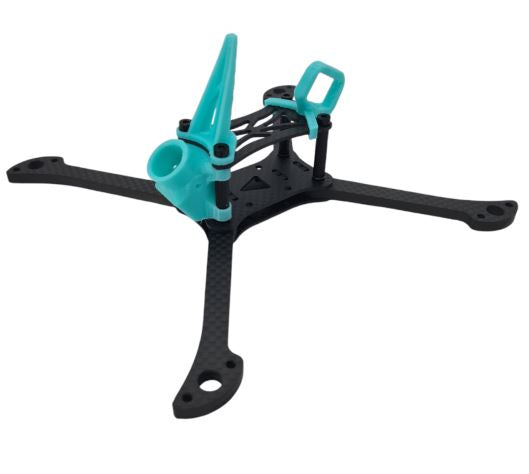

B-LINE FORTY 5 – 5″ FPV Racing Frame

The B-Line FORTY5 is the latest race frame design from the guy who normally scrubs toilets for a living. Moving away from the absolute durability focused Sendstorm and Bolt frame range, the aim of the FORTY5 was to push the limits of frame weight, while still maintaining some of the durability that B-LINE frames are renowned for. Any other frames even close to this weight are well known for being a small hit away from a proverbial frame explosion.

Specifications:

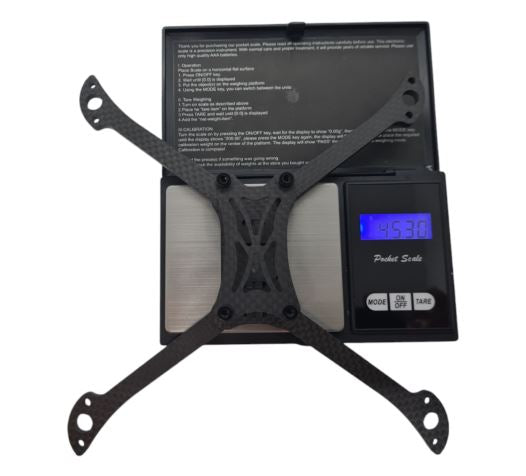

•  45.3 grams including hardware! (Hence the name)
•  3d prints available for download (not included)

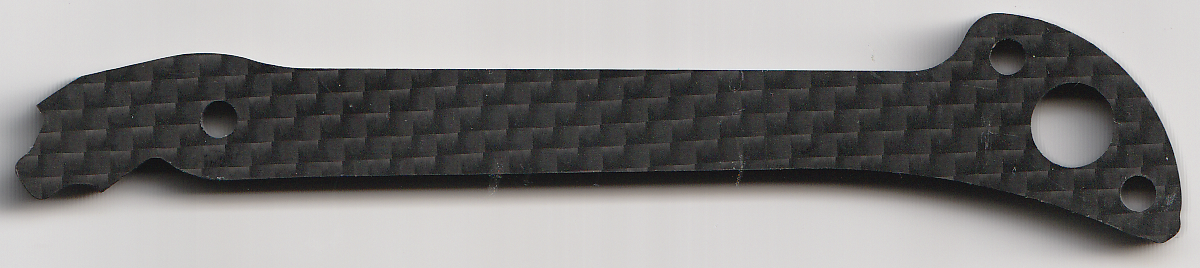

•  5mm arms and pointed ends for optimal launch pad grip

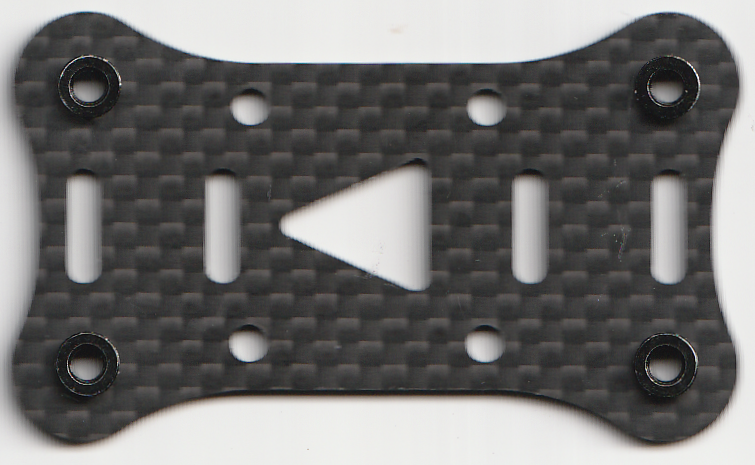

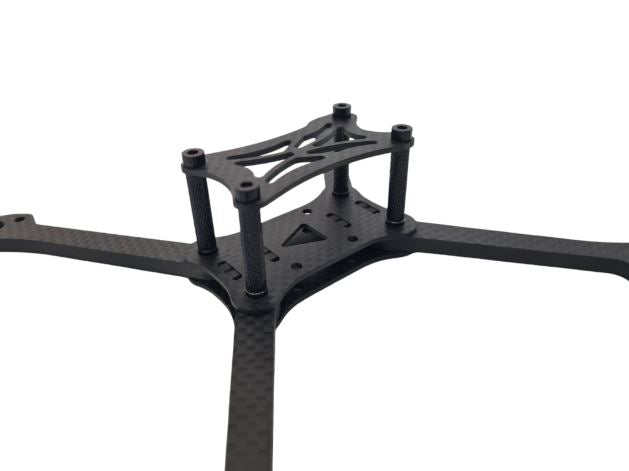

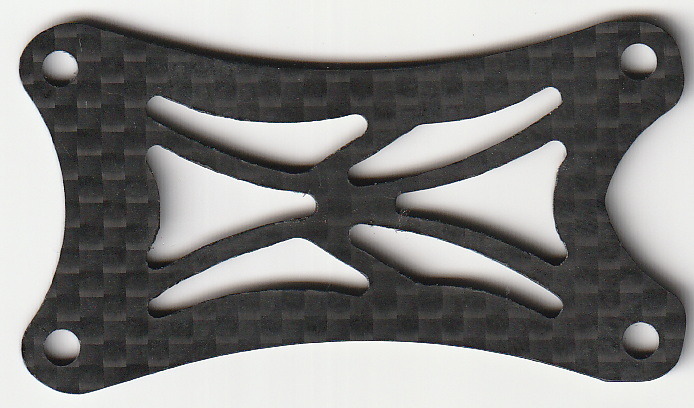

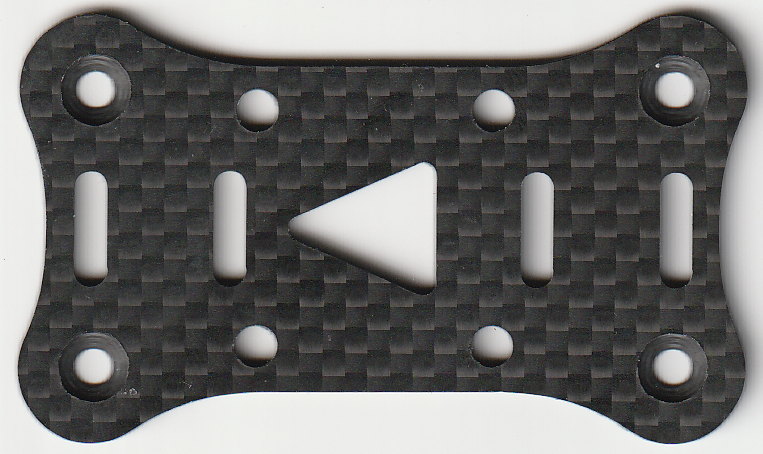

•  Hardware: M3 x 8mm Alu socket head top plate bolts, 14mm steel countersunk standoff bolts, 23mm knurled standoffs, press nuts under standoffs
•  20*20 STACKS ONLY
•  Should fit almost all ESCs
•  Die-cut silicone battery pad

Google Drive link to 3d prints HERE
