FrSky Tandem X18RS TD-ISRM RS RF Performance Transmitter
TD-ISRM RS RF PERFORMANCE
With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations of RF modes, the TANDEM X18RS versions are equipped with the TD-ISRM RS built-in RF module which is capable of supporting multiple protocols (like TW, TD, etc).
The TD-ISRM RS RF module has the dual 2.4G TW RF mode and supports simultaneous activation of working under ACCESS 2.4G and R9 modes with the same module. In this configuration, the ACCESS 2.4G receiver and R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This further enhances the RF signal’s reliability, particularly in long-distance RC operations scenarios.
UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LoRa ANTENNA CONNECTORS
The newly upgraded antenna handle incorporates the good capability of impact resistance facing tough conditions of outdoor fields. The reinforced and thickened antenna casing is better suited for comfort gripping but also does not compromise the antenna’s performance. On the contrary, the redesigned antenna can transmit signal data more effectively, providing pilots with a more reliable flying control experience.

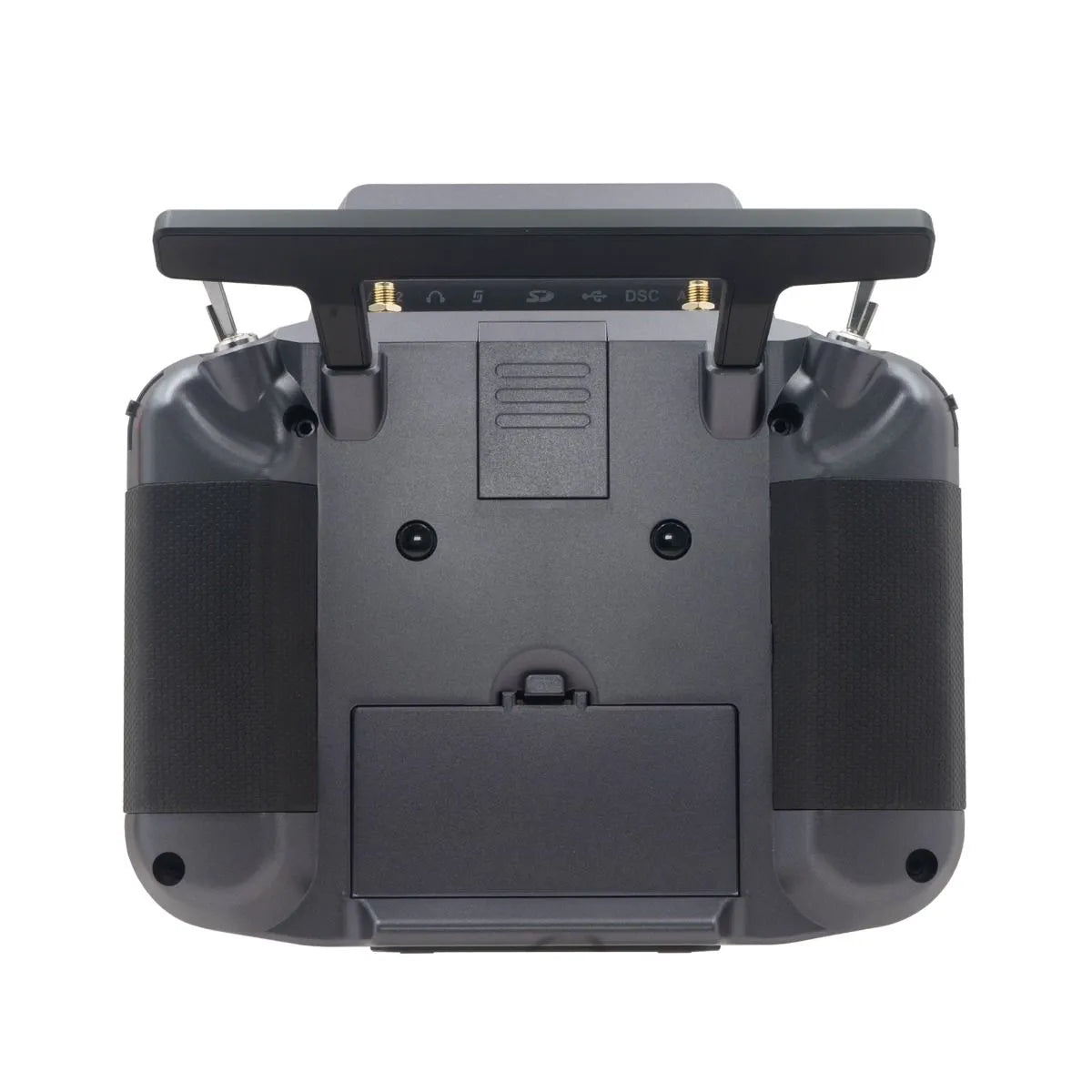

The X18RS is also equipped with 2 external antenna connectors, which can be mounted with additional 2.4G and 900M antennas for enhancing the RF capabilities working under the LoRa modes, to achieve enhanced long-range control.
UPGRADED DISPLAY AND COMPONENTS & 45°/60° TRAVEL ADJUSTABLE MC18 GIMBALS
X18RS uses the upgraded 800×480 resolution screen with great visibility under sunlight. The primary components, including trim caps and knobs, are all made from metal, offering rugged quality and enhanced durability for outdoor use. The MC18 Gimbals are also CNC metal mechanized and can be adjusted to a 45° travel position from the original 60° setup out of the box.
FEATURES
- Built-in TD-ISRM RS Dual-Band Internal RF Module
– 900M/2.4G Dual Band TD Mode
– Dual 2.4G TW Mode
– ACCESS 2.4G & ACCESS R9 Modes
– 2.4G ACCST D16 Mode - Super Low-Latency and Long-Range Control with Telemetry
- Upgraded Robust Antenna Handle
- 900M/2.4G External Antenna Connectors (LoRa mode)
- 800×480 Resolution Outdoor High Brightness Touchscreen
- Easy-to-Reach Top Switches and Sliders
- 2 Knobs, 4 Standard Trims with 2 Extra Trims
- 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
- All Knobs, Trims with All-CNC Metal Caps
- Built-in 512MB Flash Drive Storage
- Built-in 6-axis Gyroscope Sensor
- High-Speed PARA Wireless Training System
- Data Transmission & Recharge System via USB Type-C Interface
- Haptic Vibration Alerts and Voice Speech Outputs
- MC18 All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
– Adjustable 45° / 60° stick travel (Additional Travel Limiter Tool is required)
SPECIFICATIONS
- Dimension: 200×192×98mm (L×W×H)
- Weight: 740g(Battery Excl.) / 880g(Battery Incl.)
- Operating System: ETHOS
- Internal RF module: TD-ISRM RS
- Number of Channels: Up to 24
- Built-in Flash Storage: 512MB
- Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
- Operating Temperature: -10°C~60°C (14°F~140°F)
- Operating Current: 500mA@7.4V (typ.)
- Charging Current: ≤1A ±200mA
- Recharge System for 2S Li-ion Battery (USB Type-C Interface)
- USB Adaptor Voltage: 5V+0.2V
- USB Adaptor Current: >2.0A
- Backlit Touchable LCD Resolution: 800*480
- Compatibility: ACCST D16 & ACCESS 2.4G & R9 ACCESS & TD & TW receivers
- Lite Type External Module Bay

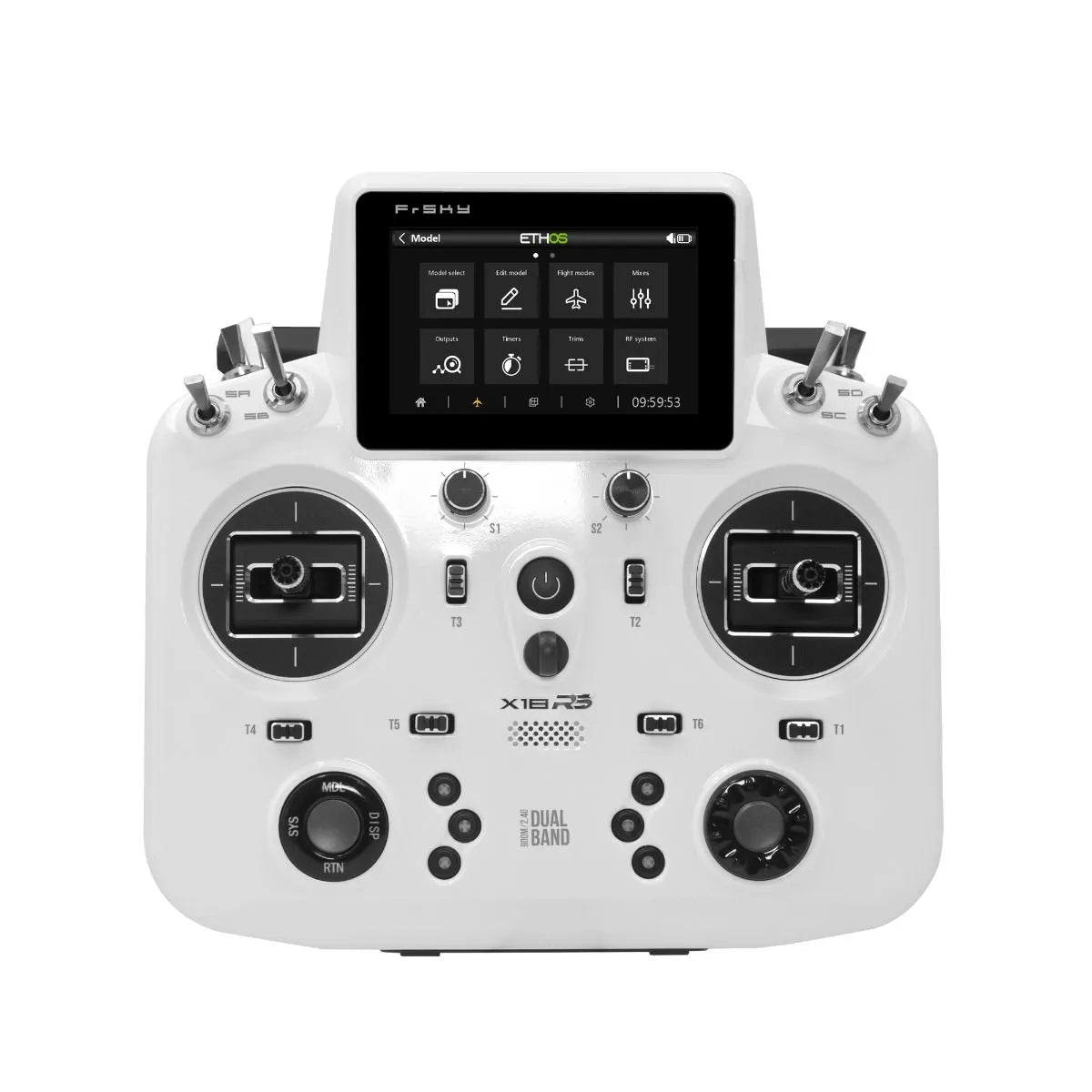

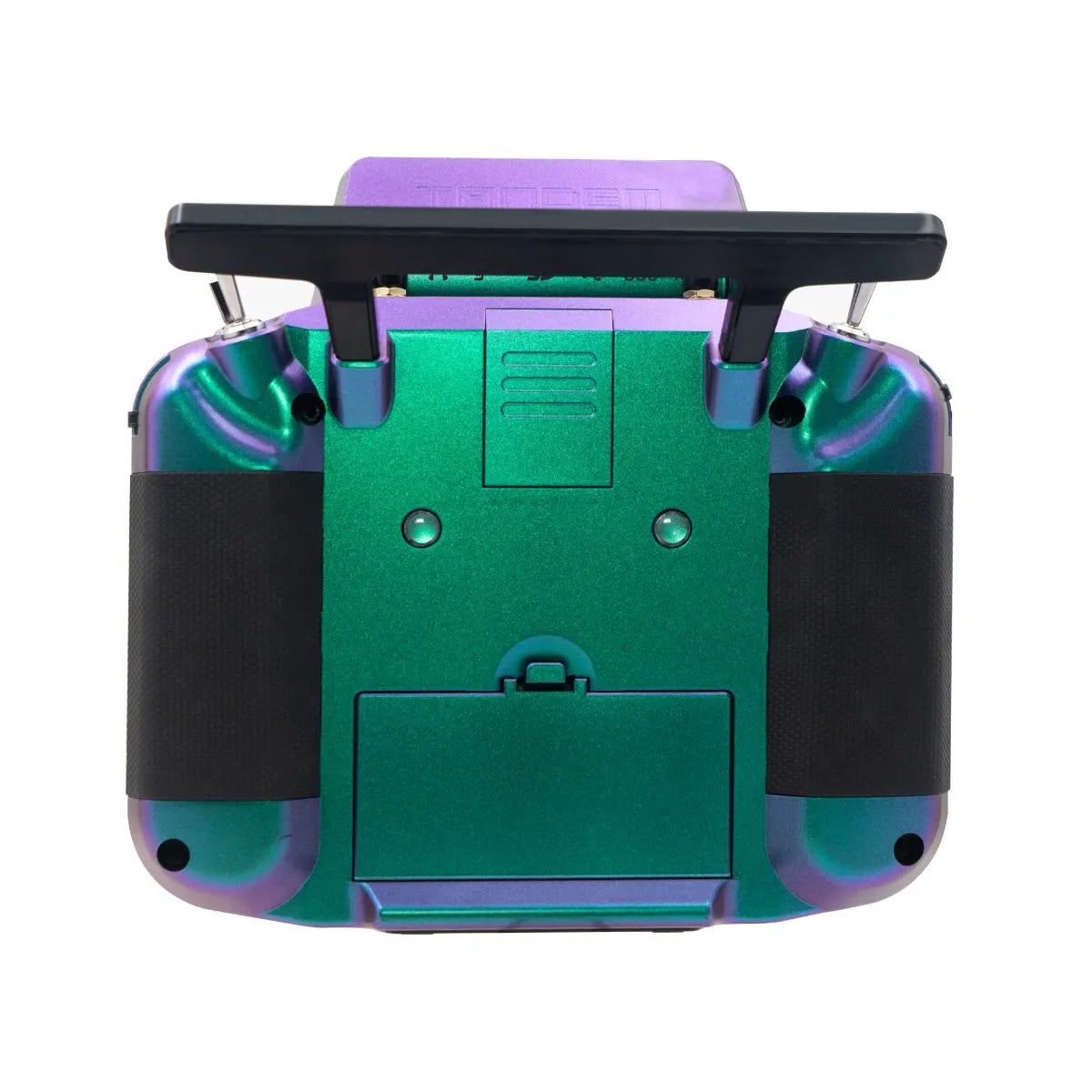

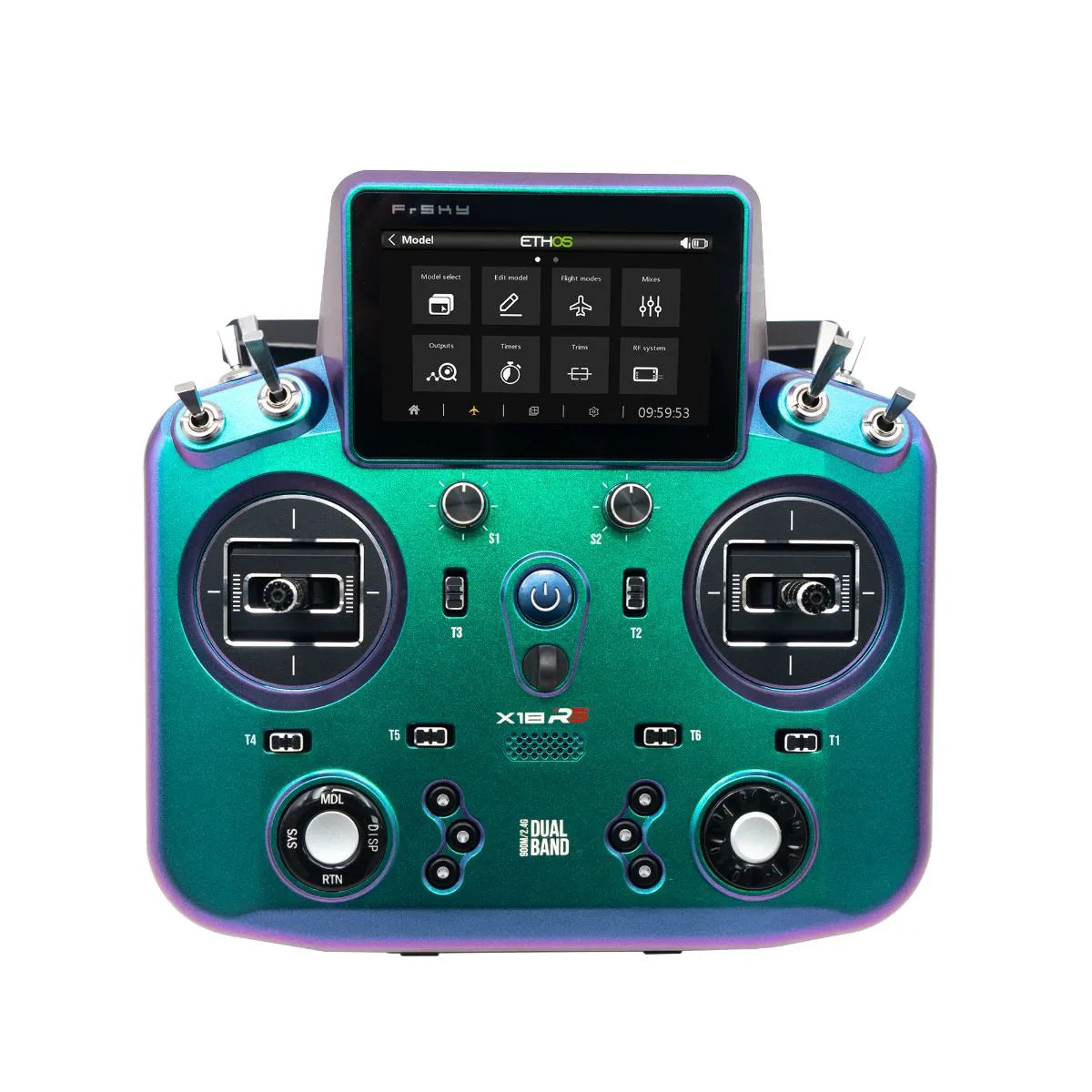

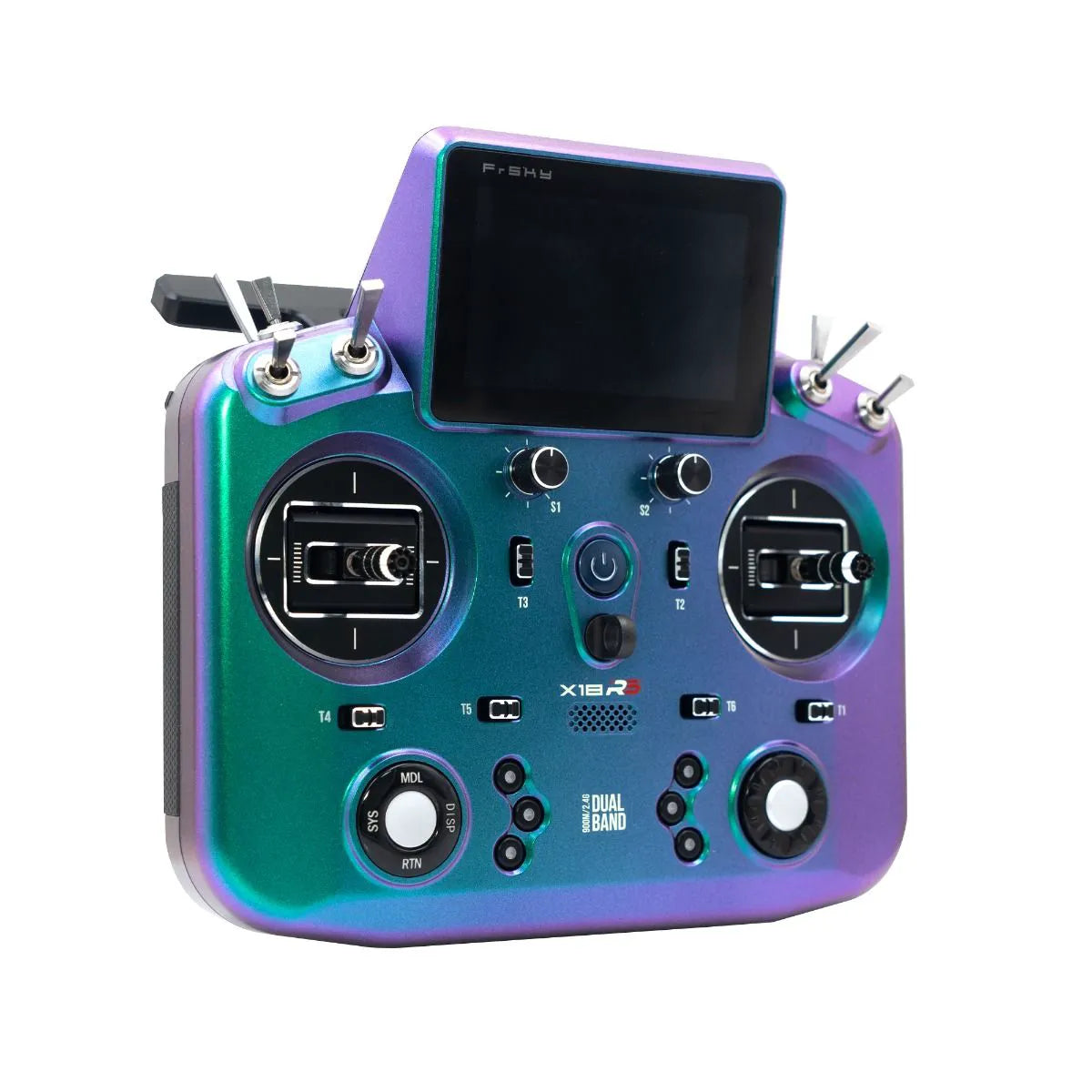

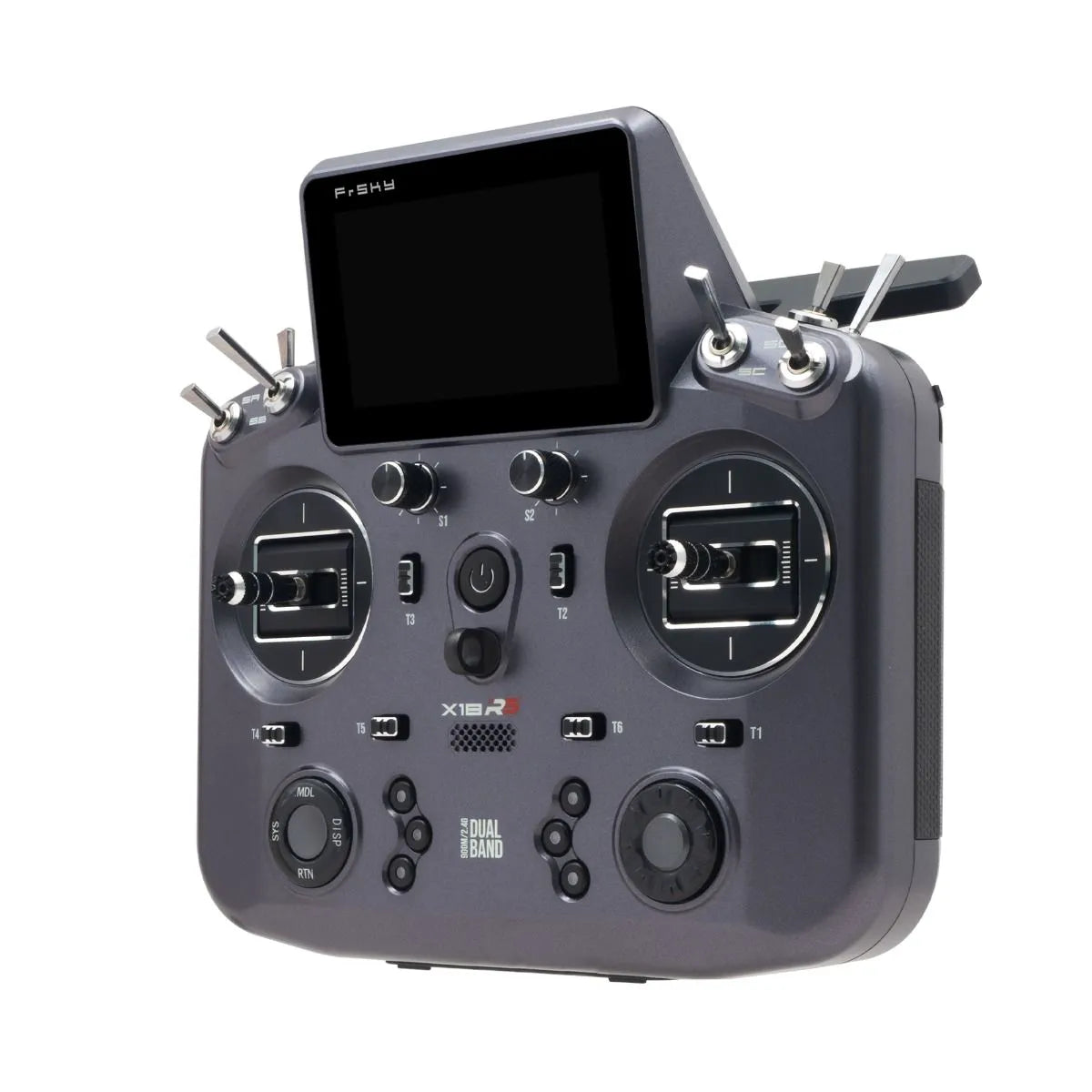

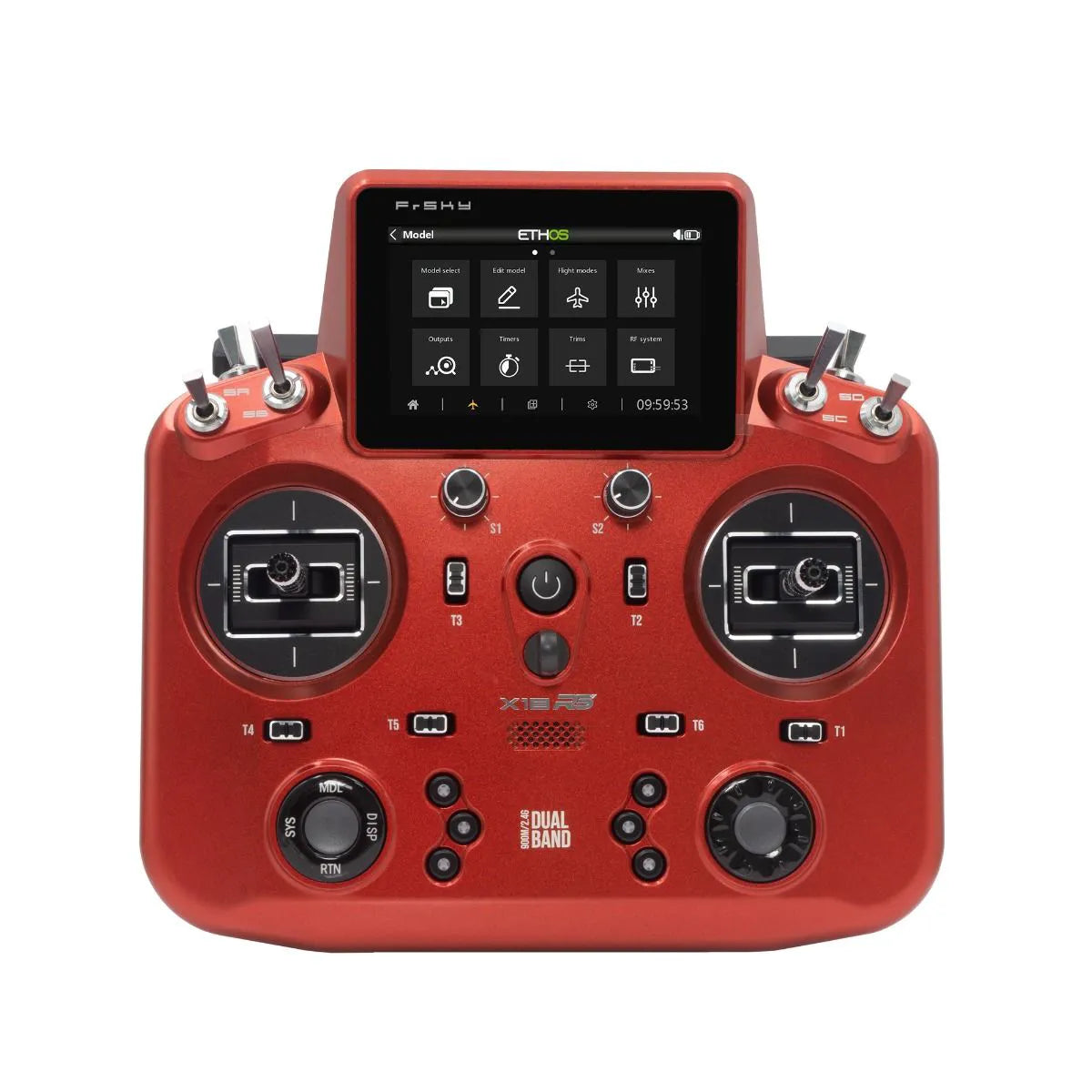

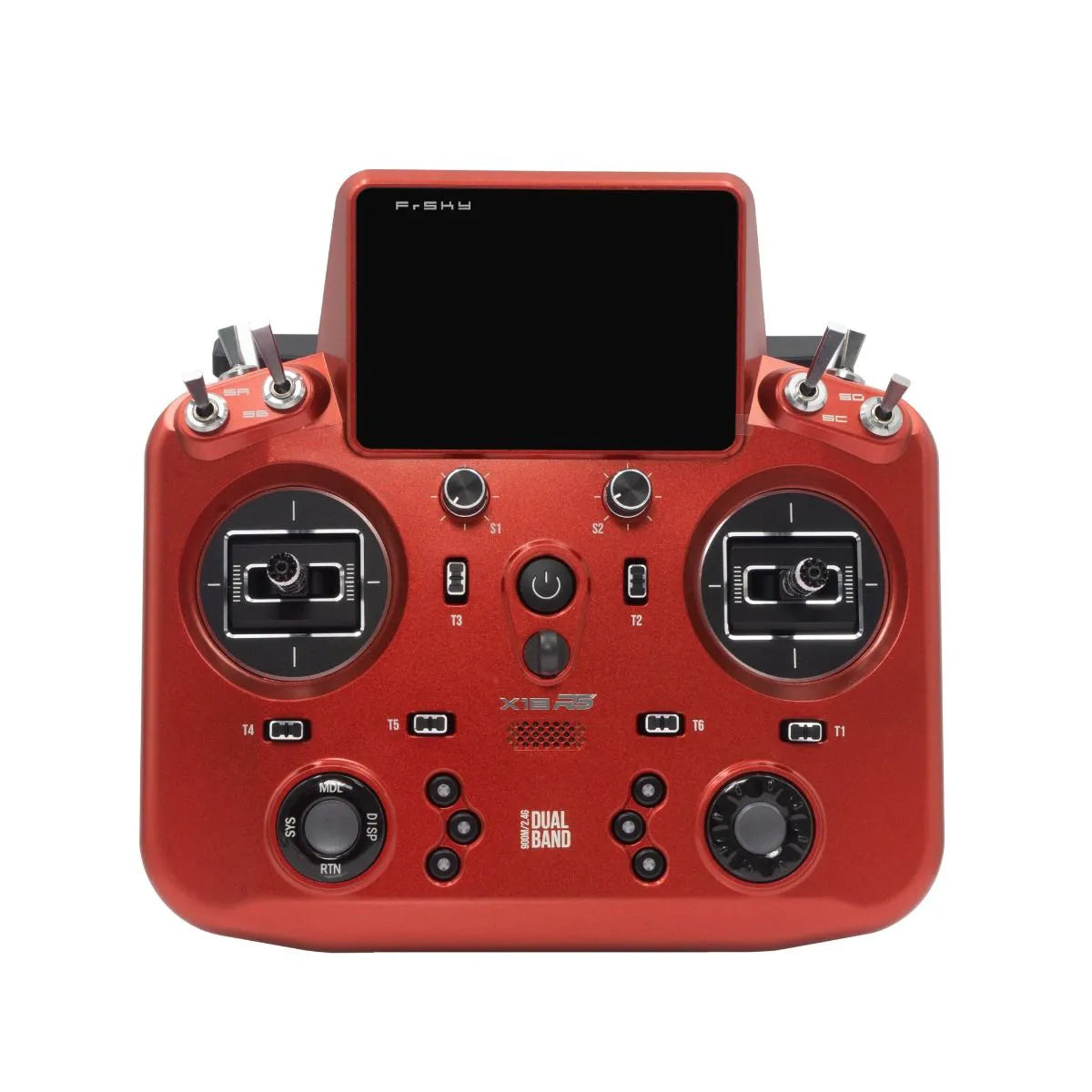

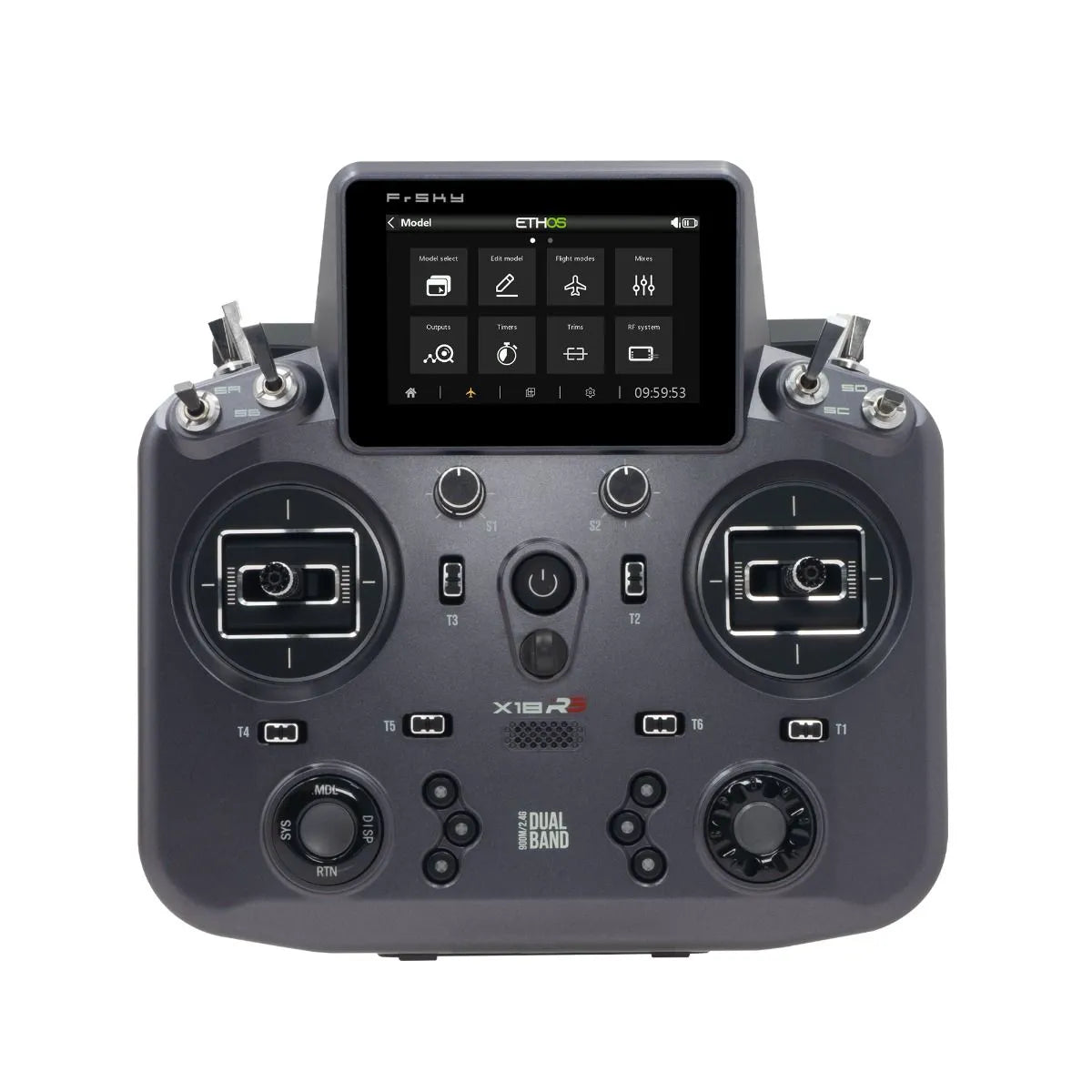

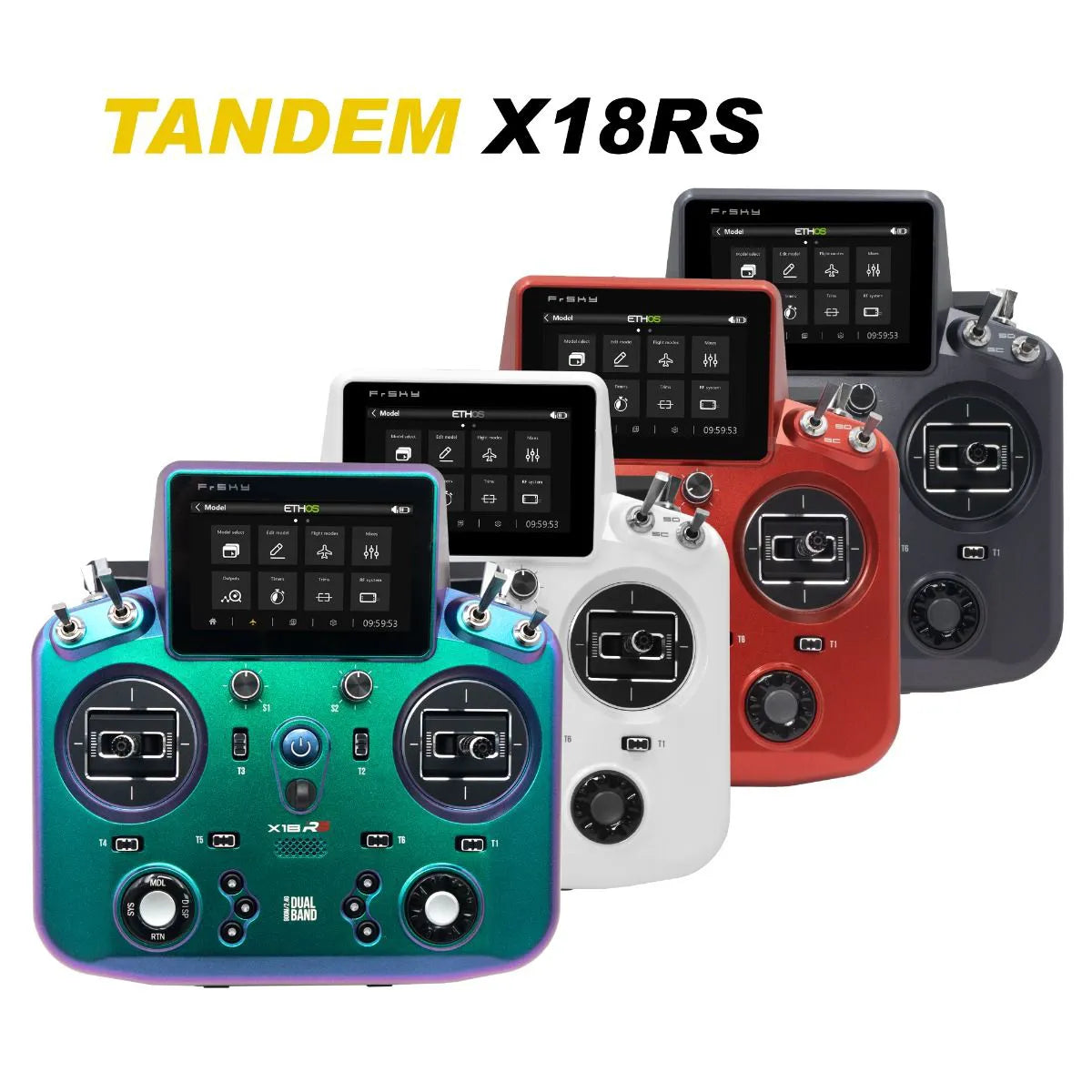

- Color Options: Chameleon/Ruby Red/Meteorite Grey/Porcelain White

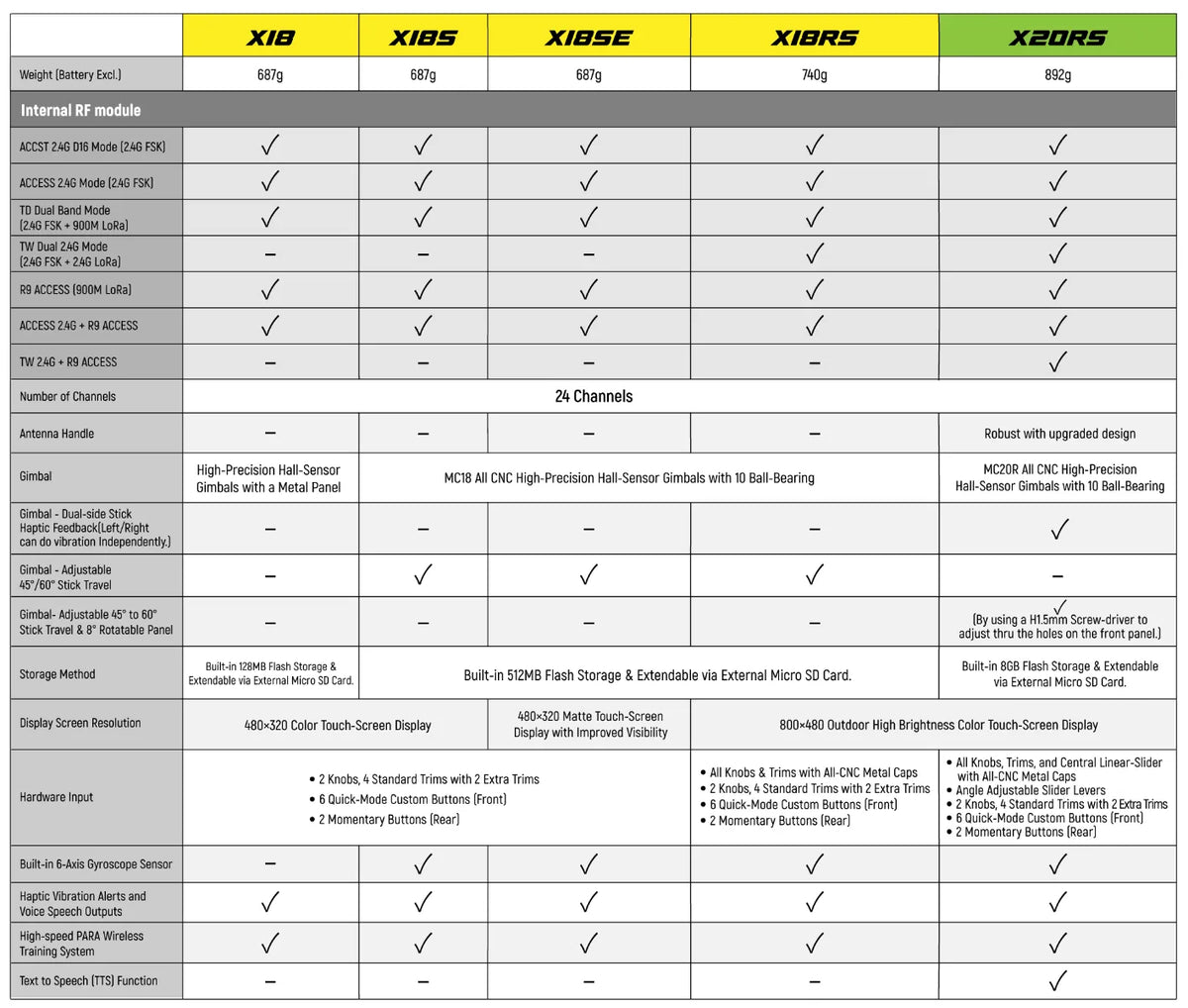

COMPARISON
