RadioMaster Pocket Radio Transmitter (Batteries Included)

RadiomasterSKU: HP0157.0054-M2
1 review

Title: CHARCOAL
Version: ELRS 2.4GHZ
Precio:
Precio de venta$89

Impuestos incluidos Gastos de envío calculados en la caja

Stock:
Agotado

Descripción

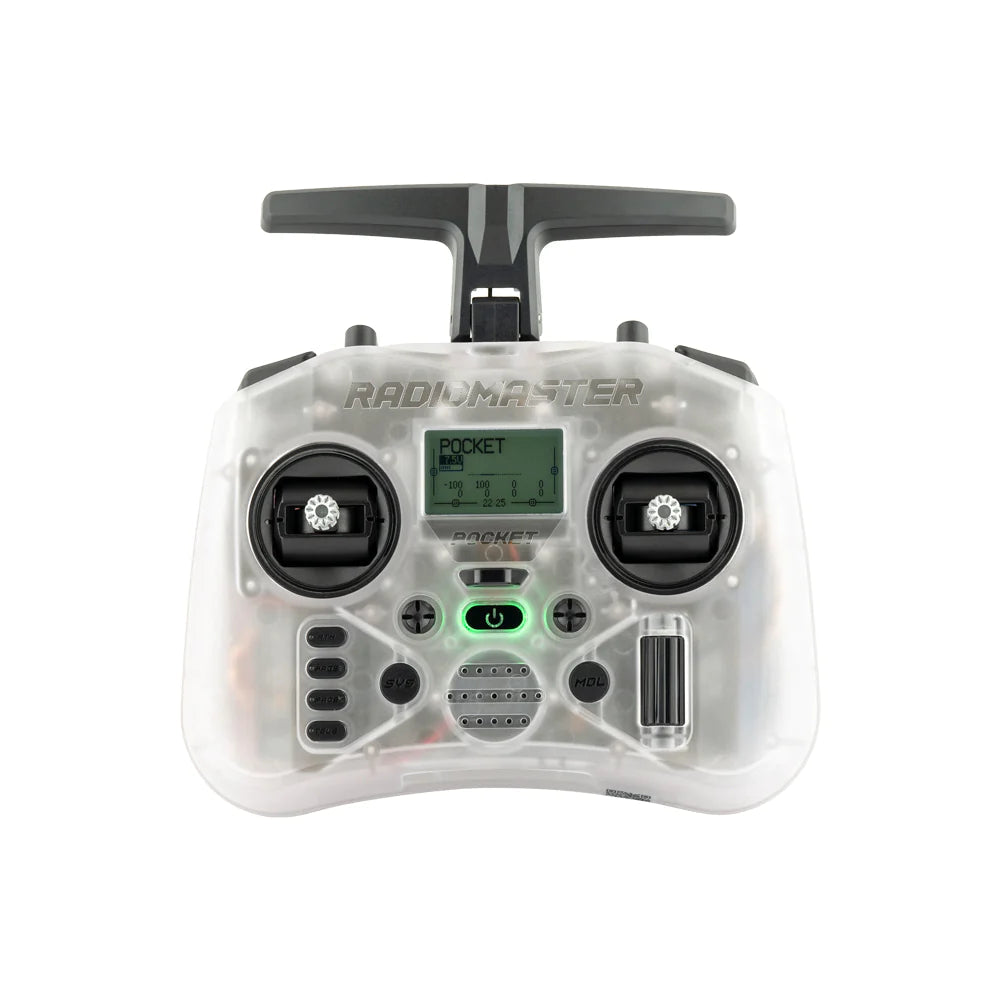

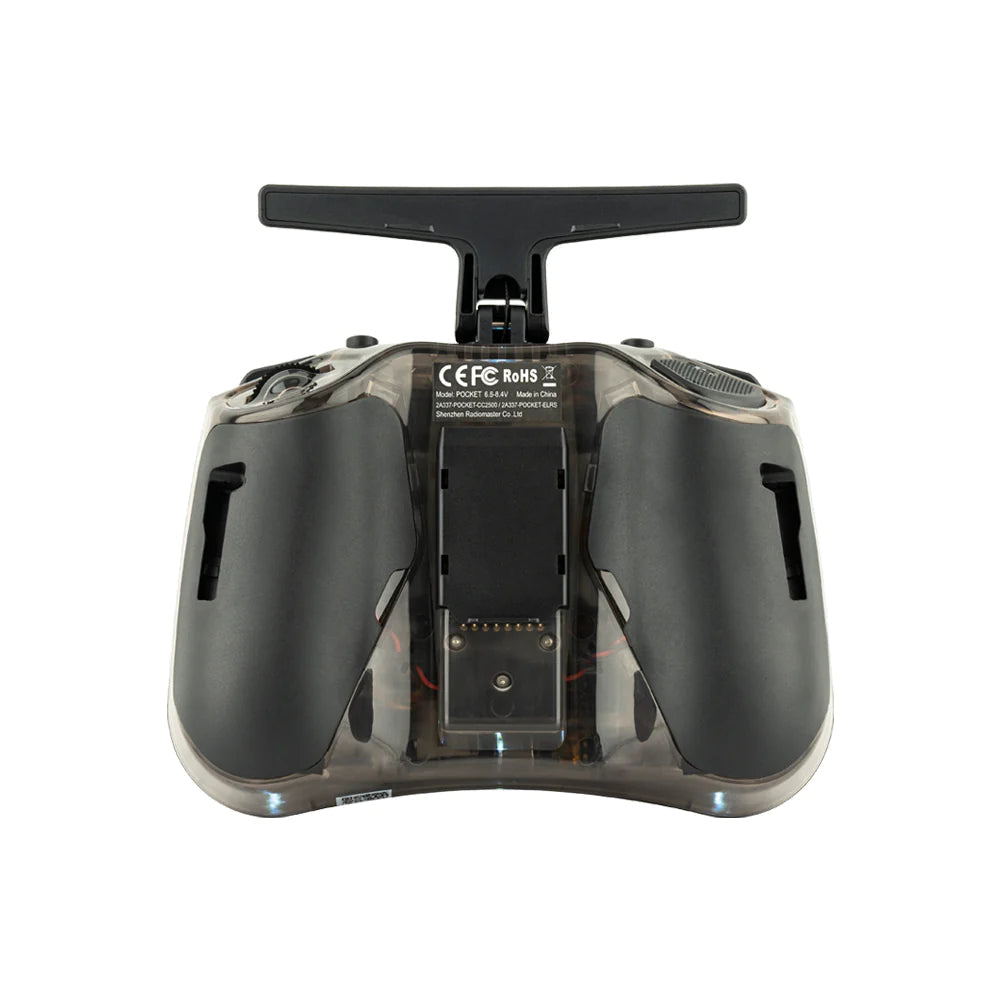

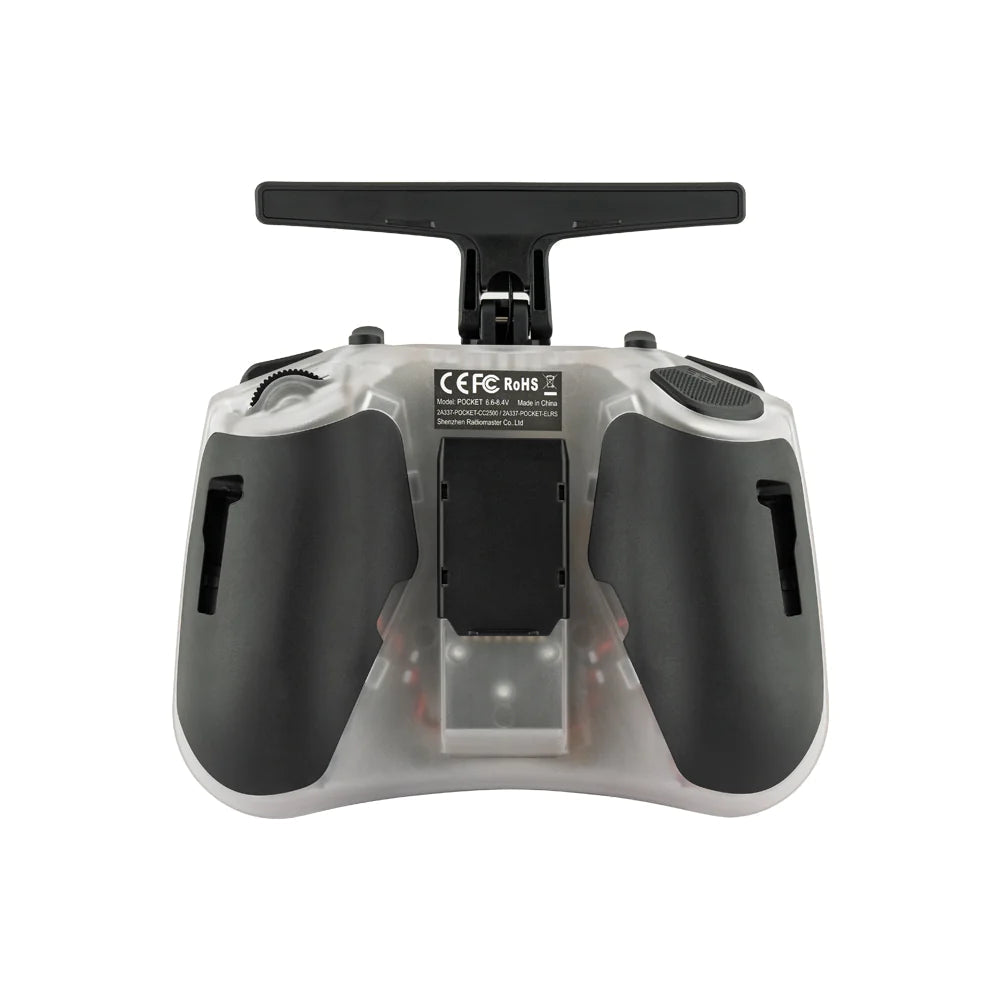

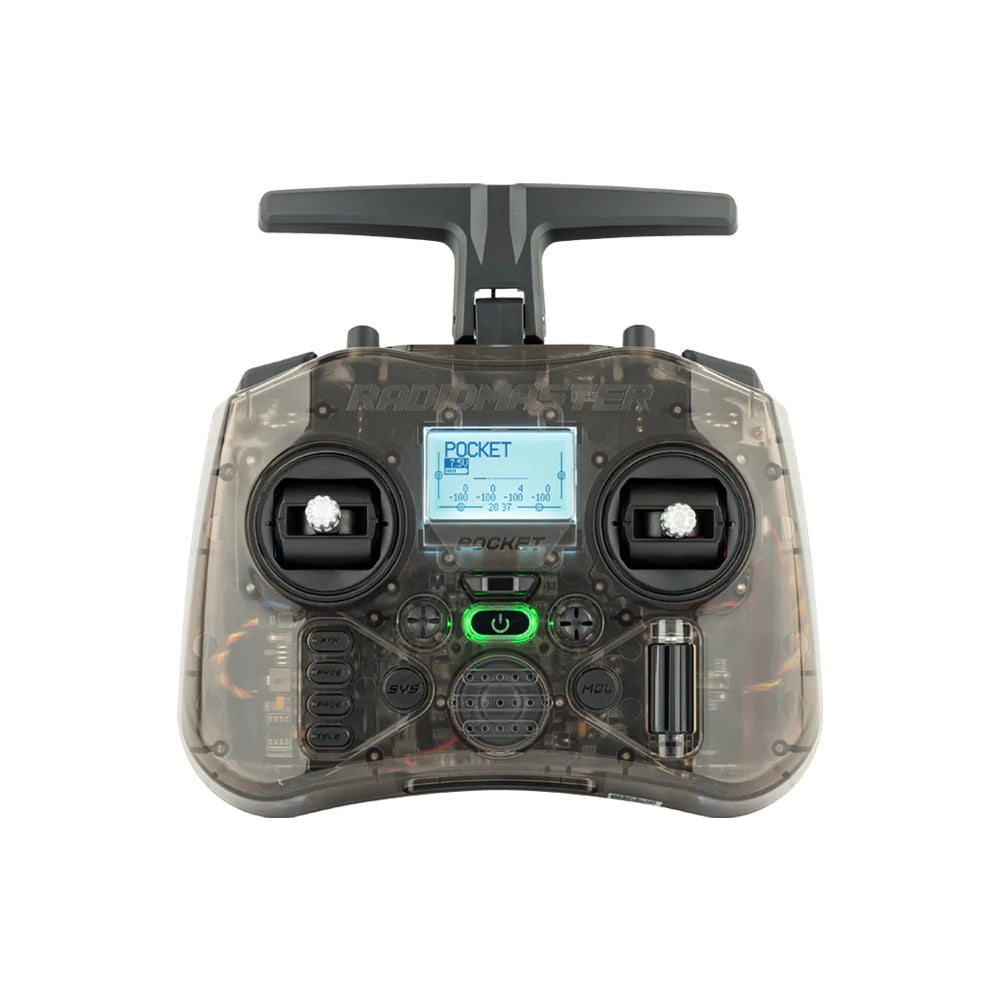

The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.

In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.

The RadioMaster Pocket is a great choice for pilots who are looking for a small, lightweight radio with all the powerful features you have come to expect.

Pocket Radio Controller (M2)

Features

  • Available in ExpressLRS Backpack and MPM CC2500 versions
  • Preinstalled with EdgeTX firmware
  • 18650 Batteries, all the power you need for hours of fun (Batteries not included)

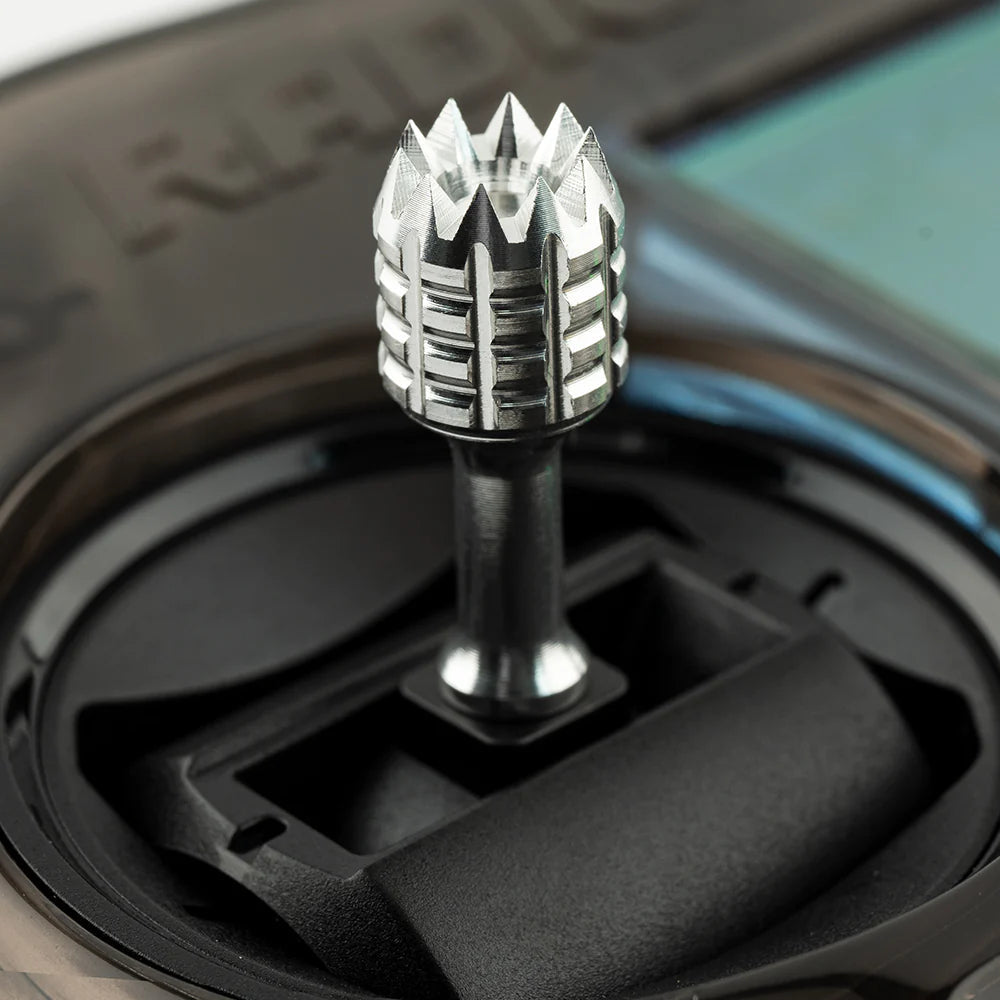

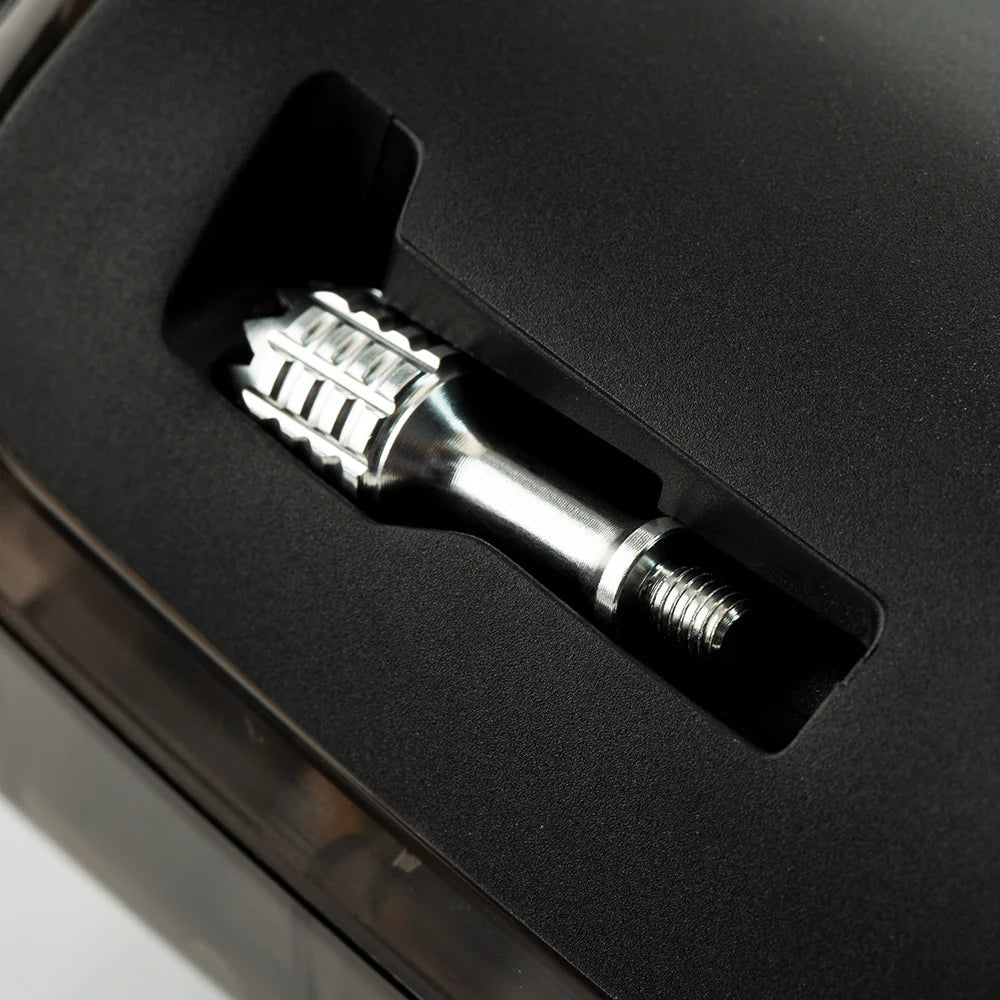

  • Portable and lightweight design with removable stick ends and foldable antenna
  • Features hall effect gimbals as standard for smooth centering & precise response. Upgradable to AG01 NANO CNC Hall effect gimbals

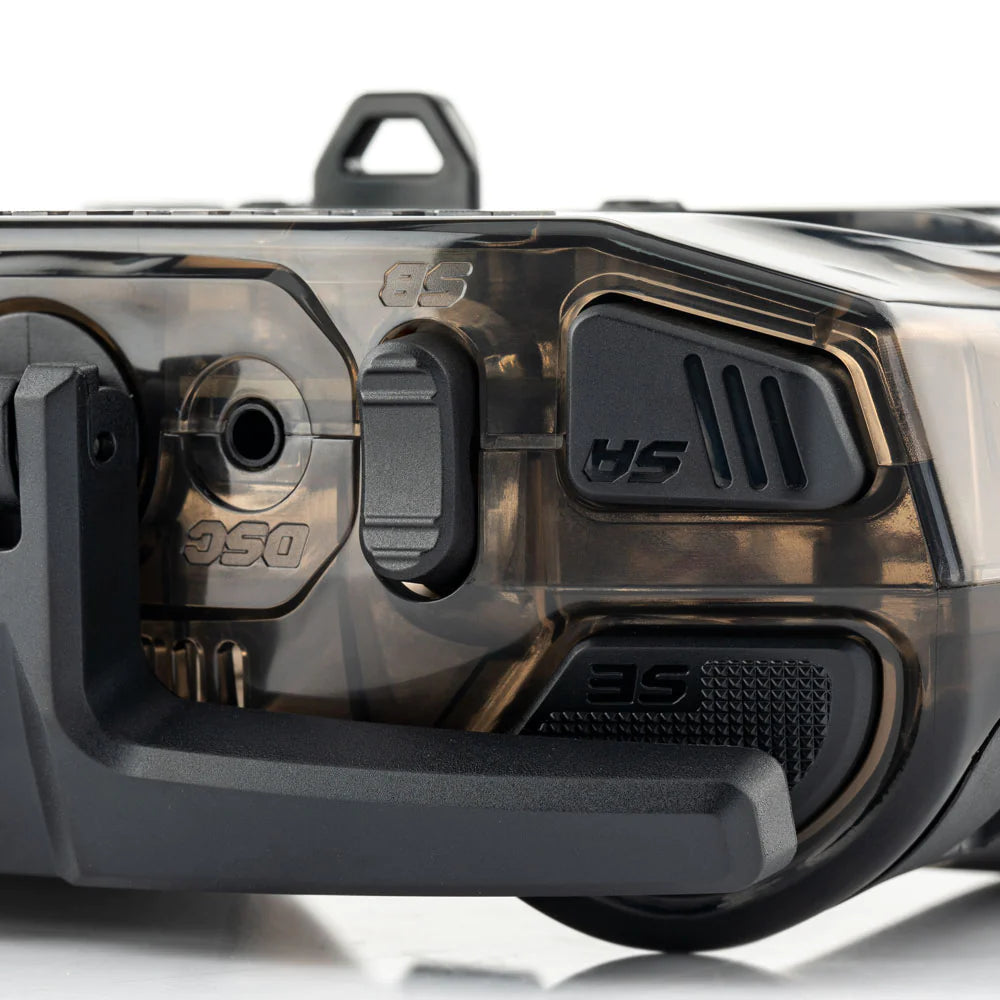

  • Built-in LED lights help visualize your switch positions (SA & SD)
  • Backlit LCD Screen offering a perfect balance of size and functionality
  • Trim buttons for easy channel trimming
  • External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
  • 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style

Specifications

  • Item: Pocket Radio
  • Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size)
  • Weight: 288 grams
  • Operating frequency: 2.400GHz-2.480GHz
  • Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
  • Supported protocols: Module dependent
  • Operational voltage: 6.6-8.4v DC
  • Operating system: EdgeTX
  • Control channels: Maximum 16 (Receiver dependent)
  • Display: 128*64 Monochrome LCD
  • Battery: 2pcs 18650 batteries (included)
  • Charging: Built in USB-C QC3 Charging
  • Upgradable Firmware: Via USB or the included SD card
  • Gimbal: Hall-effect
  • Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Available with ExpressLRS and CC2500 Version

  • CC2500 (standard) Version supports all CC2500 protocols
  • ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)

About LBT version

  • CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
  • ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Pocket Radio Controller (M2)Pocket Radio Controller (M2)Pocket Radio Controller (M2)Pocket Radio Controller (M2)Pocket Radio Controller (M2)Pocket Radio Controller (M2)Pocket Radio Controller (M2)Pocket Radio Controller (M2)

Gimbal Adjustment

A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.

Pocket Radio Gimbal Adjustment

Dimensions

Pocket Dimensions

Radio Overview

Pocket Radio Controller OverviewPocket Radio Controller Overview[Pre-order]Pocket Radio Controller (M2)

Package Includes

  • 1 * Pocket Radio
  • 1 * Custom Carry Pouch
  • 1 * USB-C Cable
  • 1 * Screen Protector
  • 1 * Sticker
  • 4 * Low Tension Springs
  • 1 * Manual
  • 2 * 18650 batteries installed

Pocket Radio Controller Package Including
