Descripción

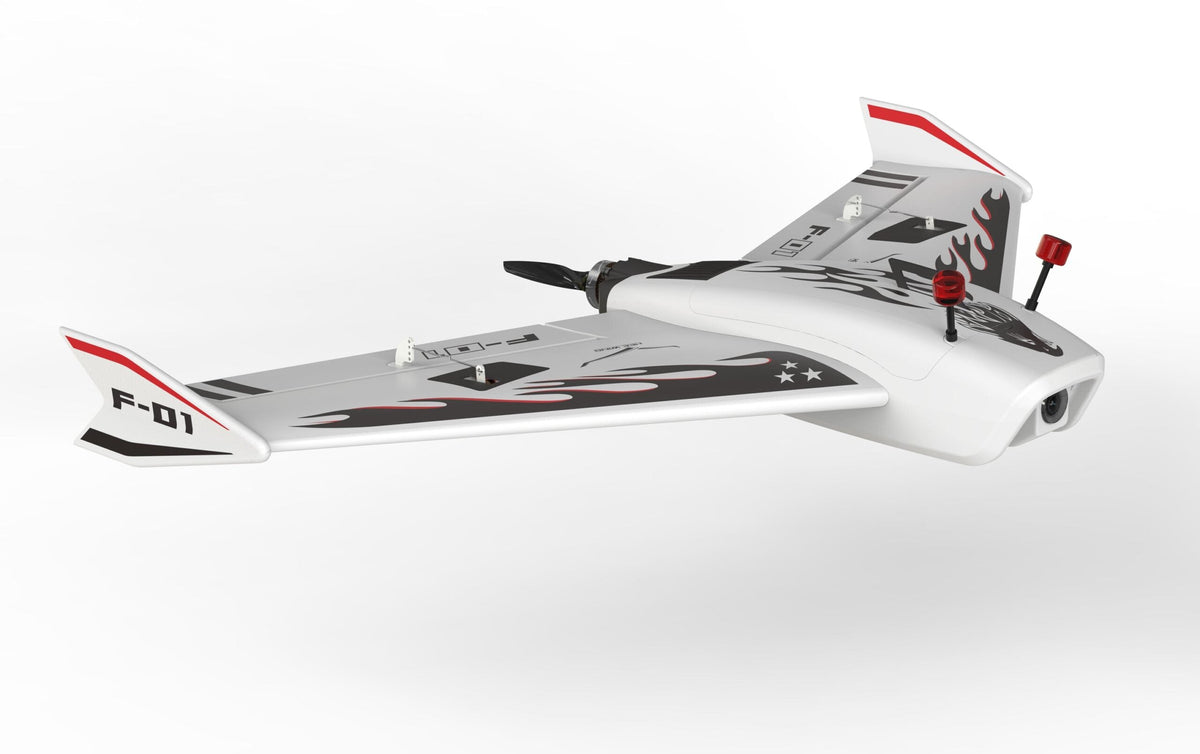

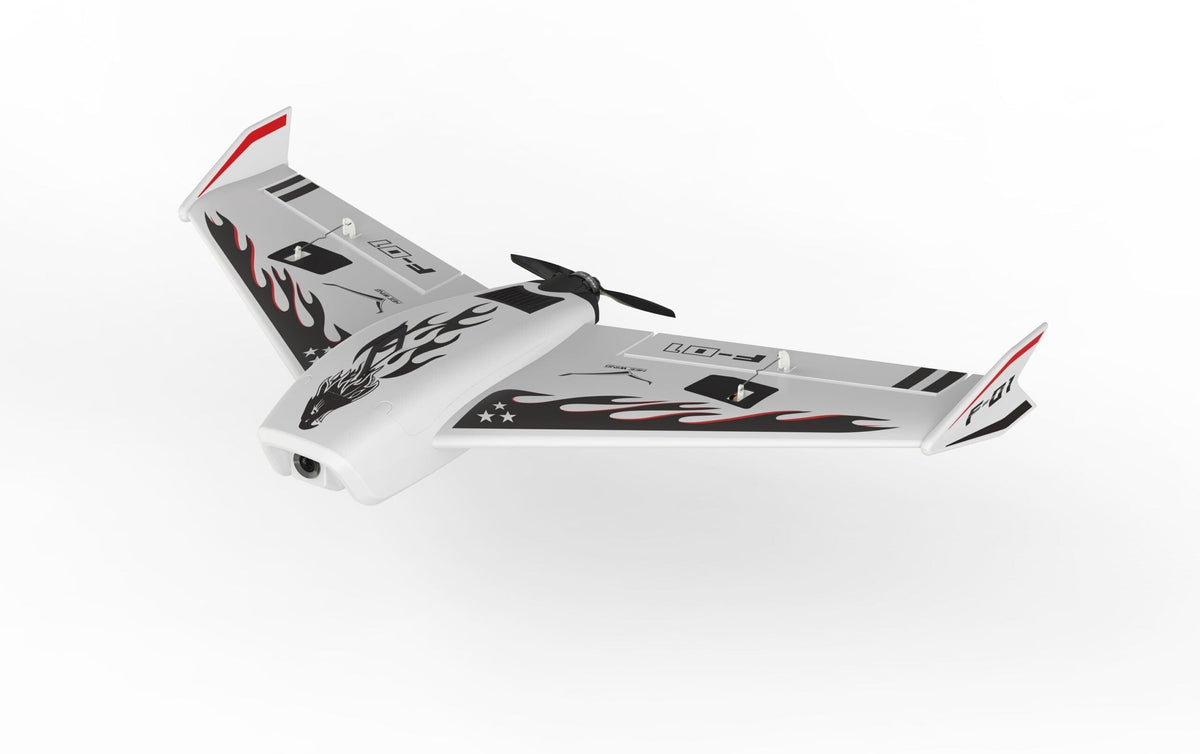

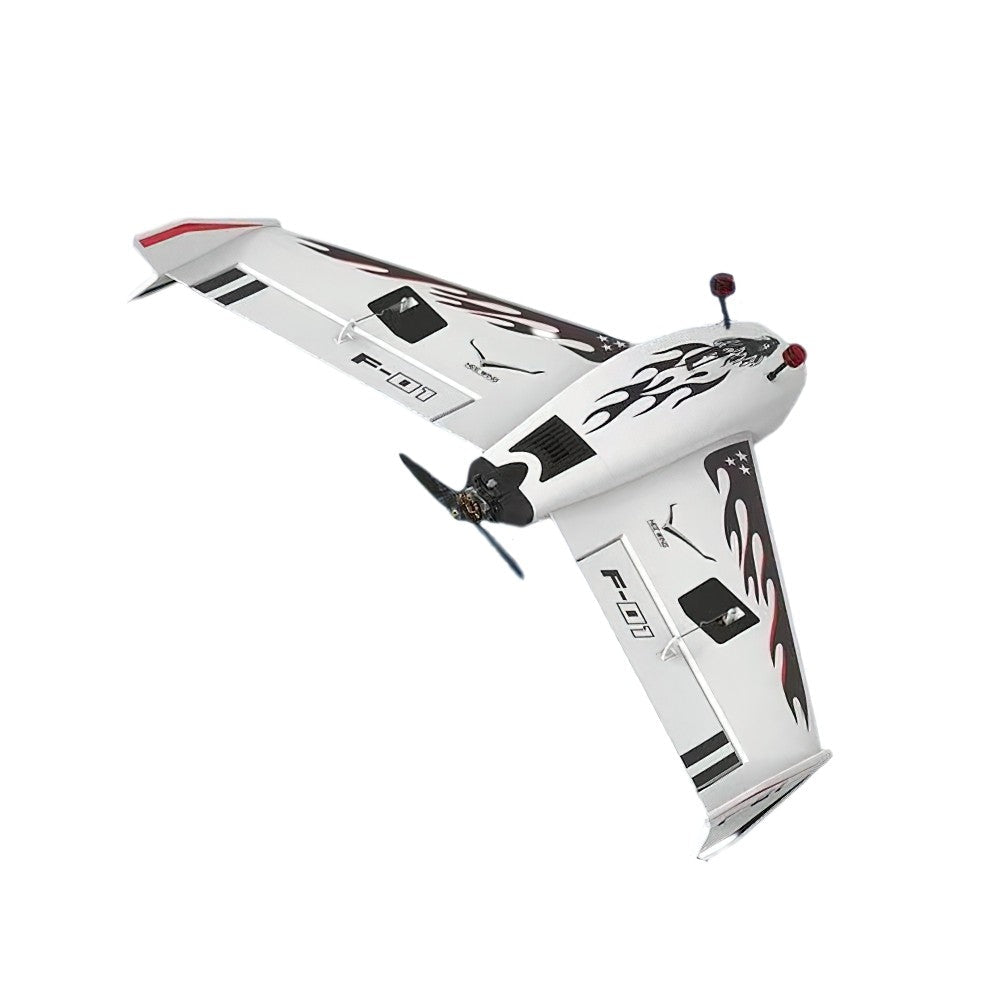

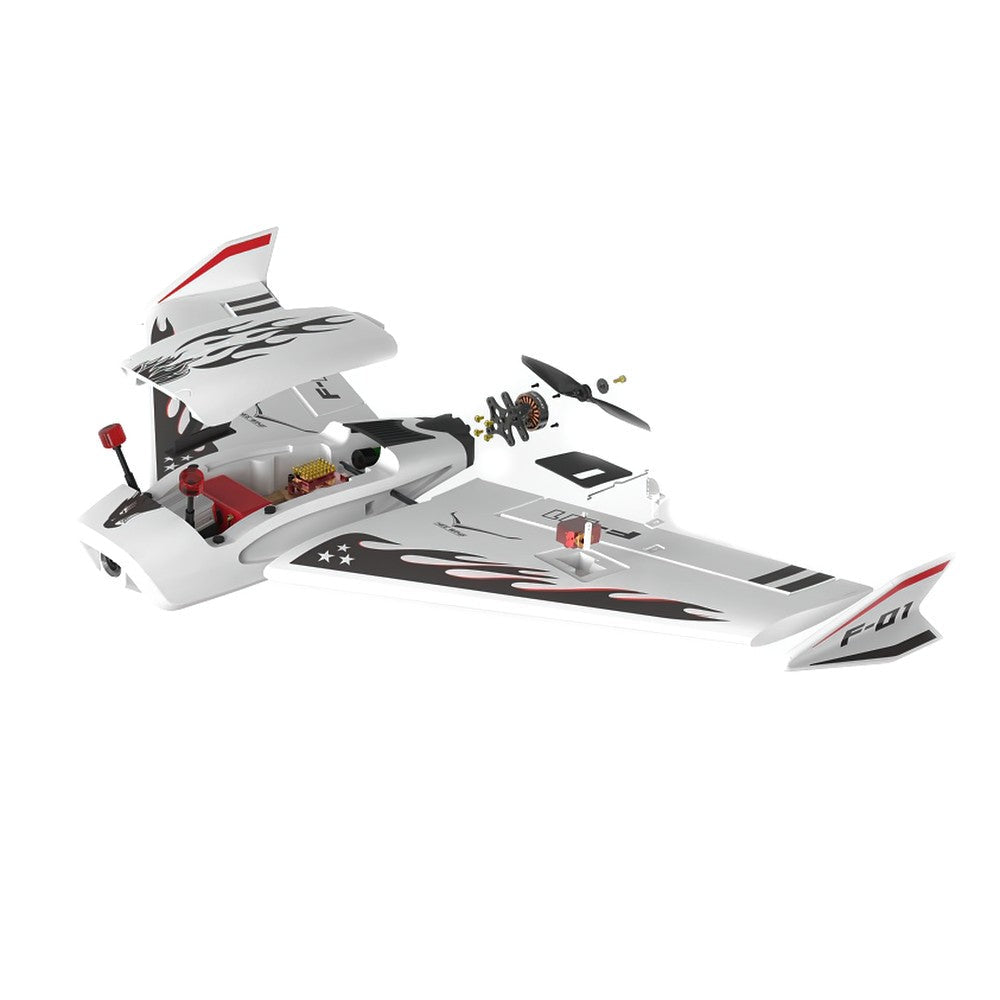

F01 is for the Speed Hunter! 😈 capable of 220km/h! Proper aerodynamic design with wind tunnel testing. Suitable for analog and digital FPV speed flying!
This is a PNP PRO that comes mostly pre-assembled with electronics installed.
Features
What's included
Requires your own/not included
This is a PNP PRO that comes mostly pre-assembled with electronics installed.
Features
- Detachable camera plug for FPV flying or 3rd person view flying
- Built in Carbon Fiber Rod in the main wing

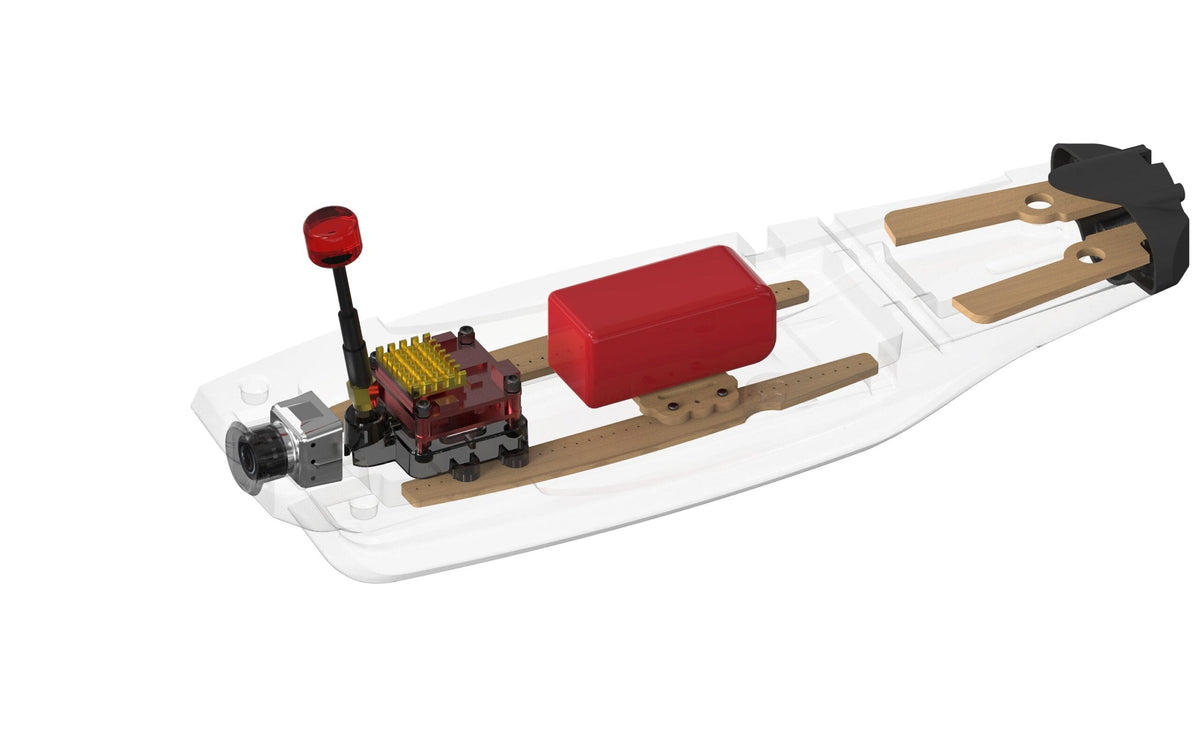

- Large internal for electronics
- Hatch secured with 4 powerful magnets
- New wingtip design allows for vertical take off
- Supports horizontal and vertical battery mounting
- Lens protector provided to protect the FPV camera lens

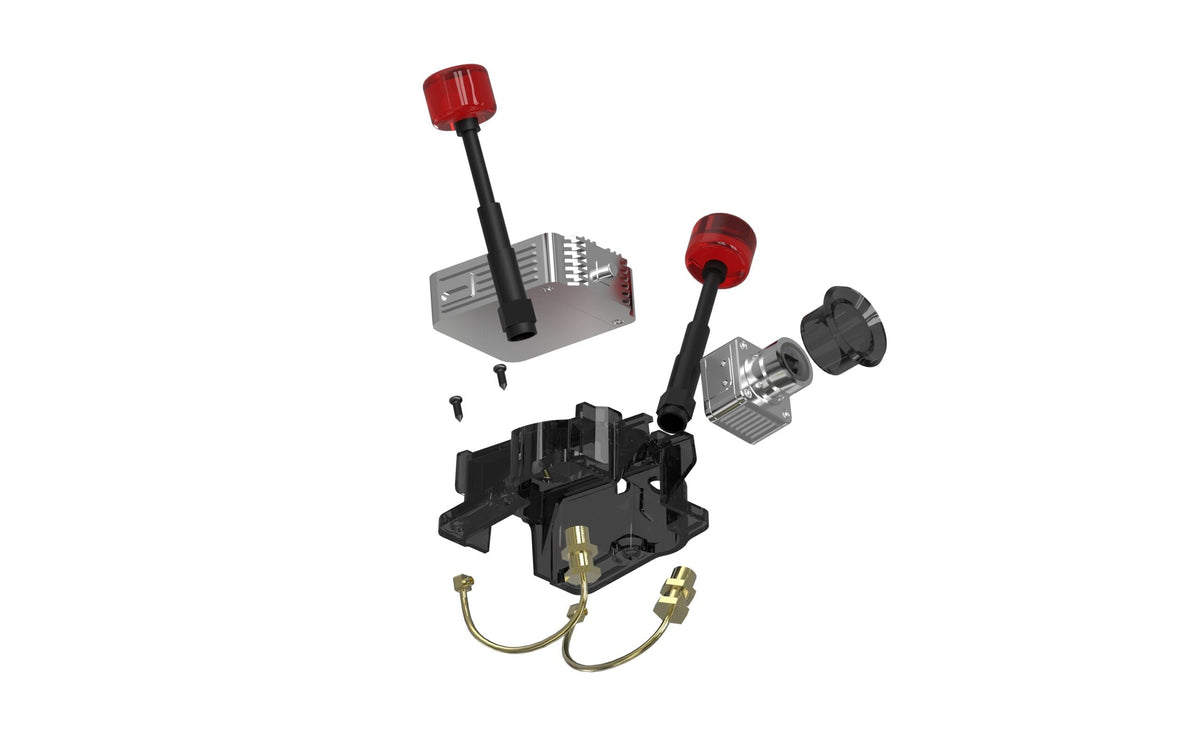

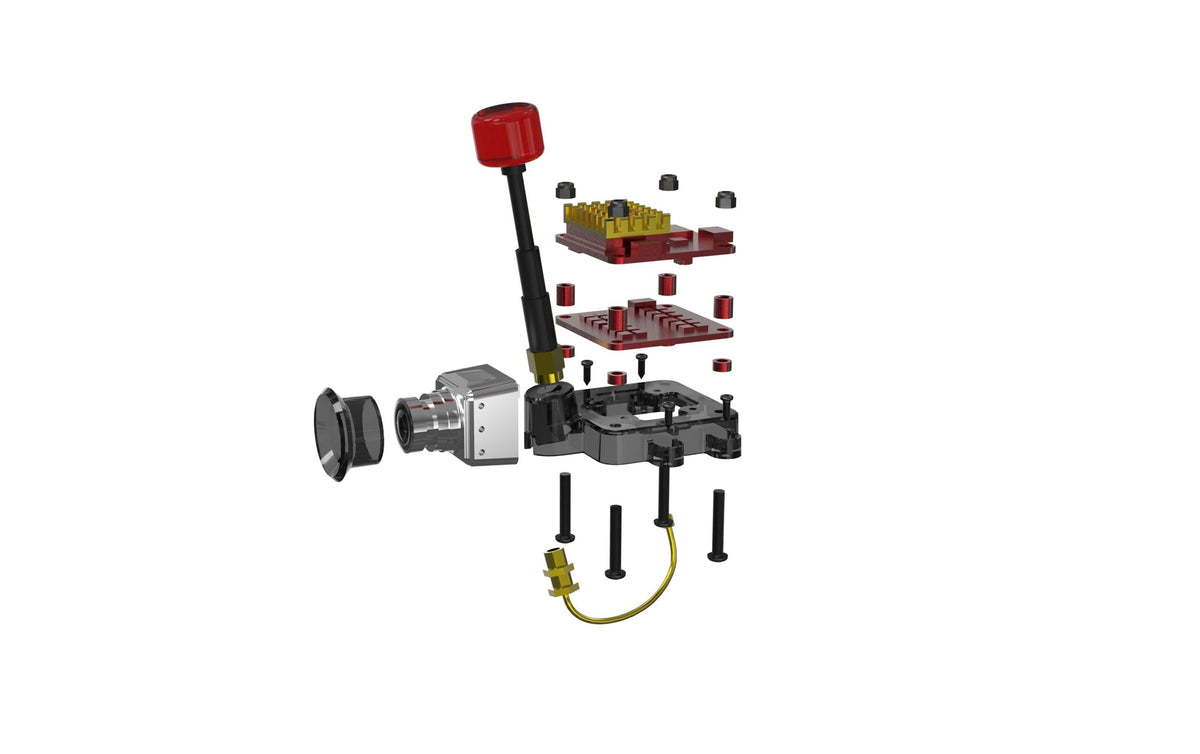

- Mounting designed for Analog & DJI Digital Air Unit
- Wingspan : 690mm
- Material : EPP / ABS / CF
- Dimension : 415mm (L), 88mm(H)
- Battery Space : 175 x 75 x 55mm
- ESC Space : 70 x 38 x 20mm
- Camera Space : 20 x 21 x 30mm
- Lens protector dimension : Outer diameter 17.5mm, Inner diameter 14~15mm, Height 12mm
- Lens Material : ABS
- Weight : 150g
- AUW : 350 - 850g
- Min speed : < 27km/h
- Max speed : > 220km/h
- * when flying above 100km/h, install the camera plug to prevent air pressure from popping the hatch
- Max flight time : > 70mins
- Max flight distance : > 45km
What's included
- 1x F01 PNP Pro
- 1x Accessories bag with VTX mounts, battery strap & hardwares

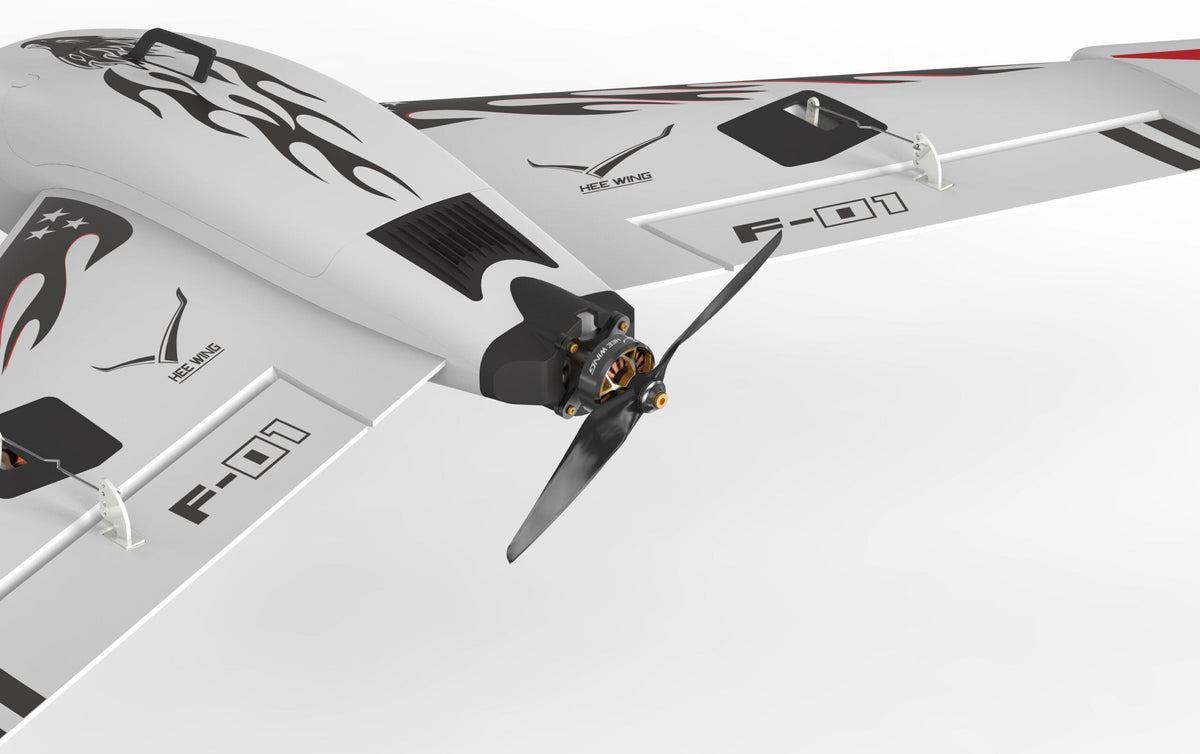

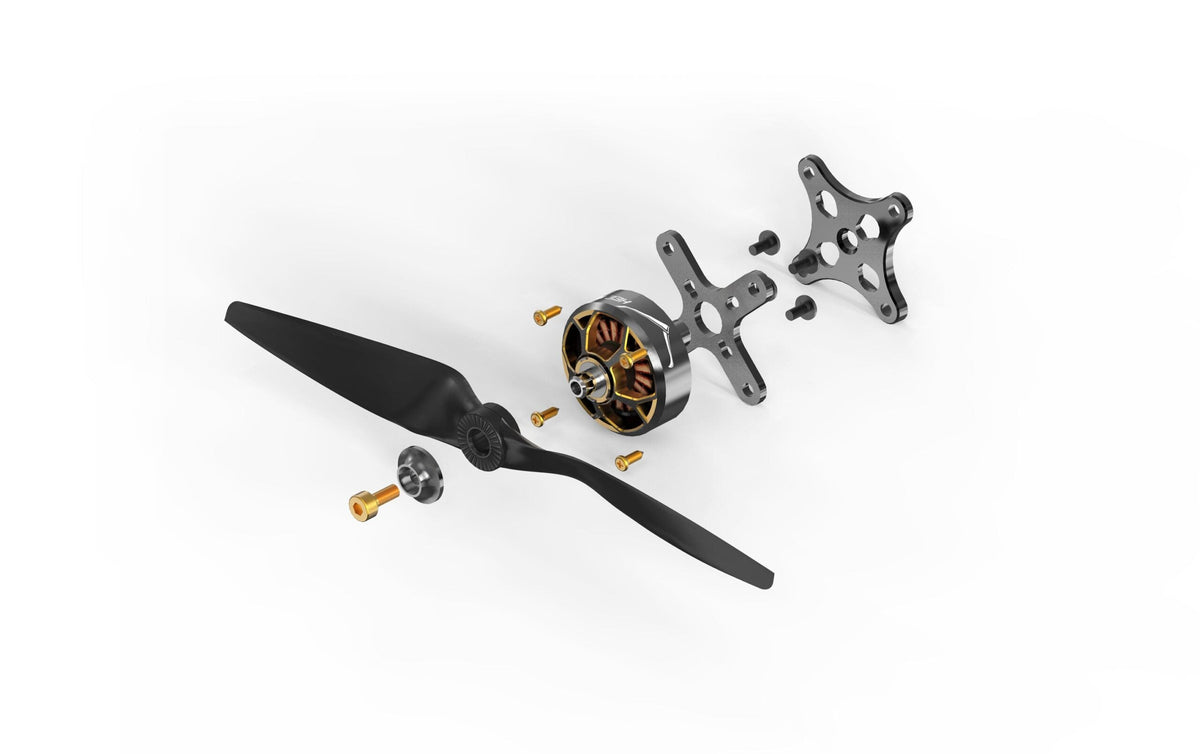

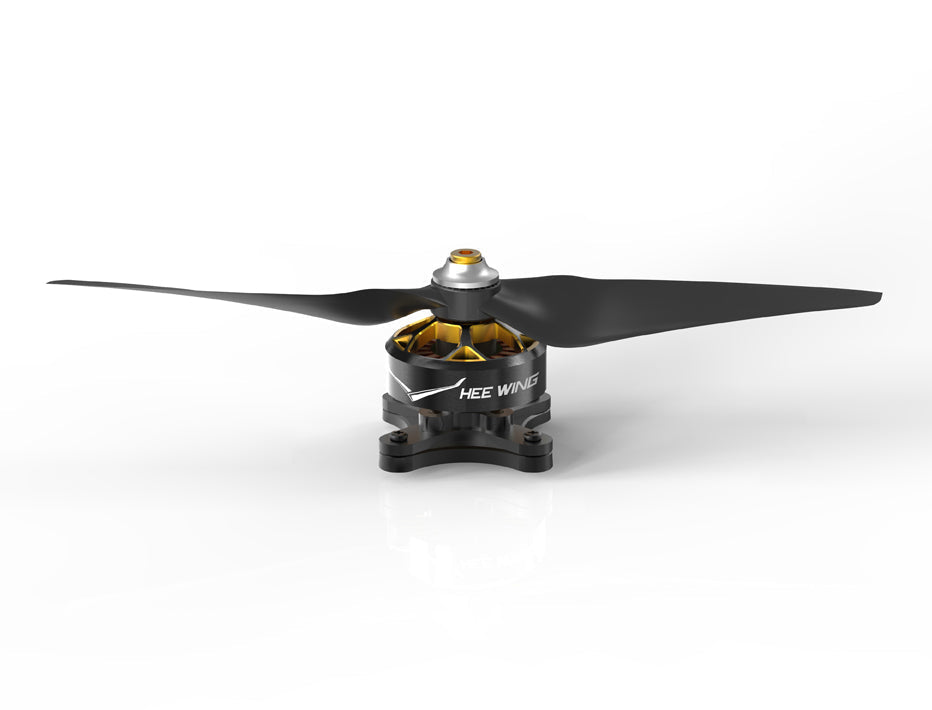

- - Pre-installed with 1x FX-2205 2350KV BL Motor, 1x FX-35A ESC, 5V 2A UBEC, 5x5 or 6x4E propeller, 2x GDW 12g digital metal gear servo & XT60 3.5 Battery Connector.
Requires your own/not included
- Radio - Minimum 3 channels.
- Receiver - Minimum 3 channels.
- Battery : 3-4S 1500-2200mAh or 6S 1300-1550mAh
- Charger : supports 3-4S or up to 6S charging
Recommended Batteries (Li-Ion)
