Descripción
LOOKING TO BUY A MATEK DIGITAL AIRSPEED SENSOR ASPD-DLVR IN AUSTRALIA? YOU'VE COME TO THE RIGHT PLACE. ANY QUESTIONS? PLEASE LIVE CHAT US, WE'RE HERE TO HELP!
CHECK OUT OUR GREAT RANGE OF MATEK PRODUCTS HERE
All sensors DLVR series is the best airspeed sensor ArduPilot currently support.
Specifications & Features
- ArduPilot AP_Periph F303 CAN node
- All sensors DLVR-L10D, Industrial temperature range
- CAN & I2C Interface
- Typical Platforms: Fixed-Wing, QuadPlane, VTOL
- CAN JST-GH connector, UAVCAN Protocol

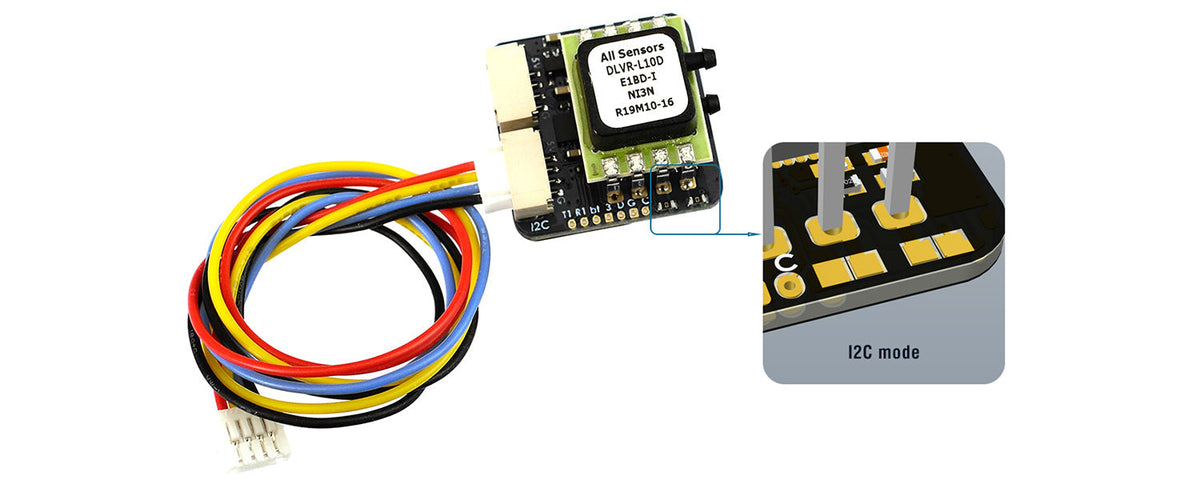

- I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
- UART1, Firmware update
- UART2, Spare for external GPS
- UART3, MSP Protocol (To be supported)
- CAN bootloader LED, Blue
- Fast blinking, No communication between CAN node and Flight Controllers
- Slow blinking, Communicating between CAN node and Flight Controllers
- 3.3V Power LED, Red
- Input voltage range: 4~6V
- Power consumption: 60mA
- Operating Temperatures: -20°C to 85°C
- Pressure Range: 2500Pa (± 10 inH2O)
- Burst Pressure: 75kPa
- Speed Range: ±250 km/h
- 22mm*22mm*12.5mm
- 4g

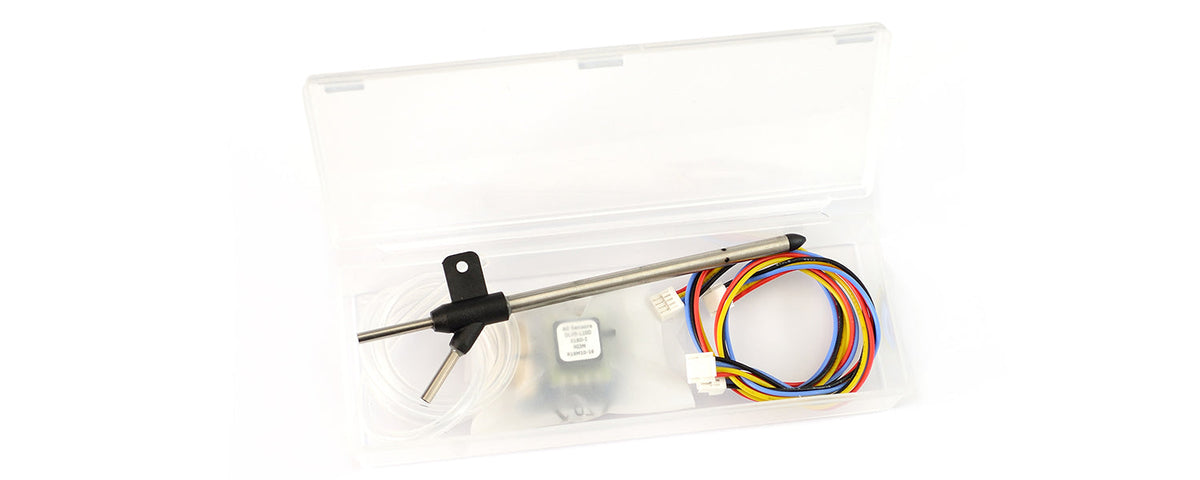

Includes
- 1x ASPD-DLVR
