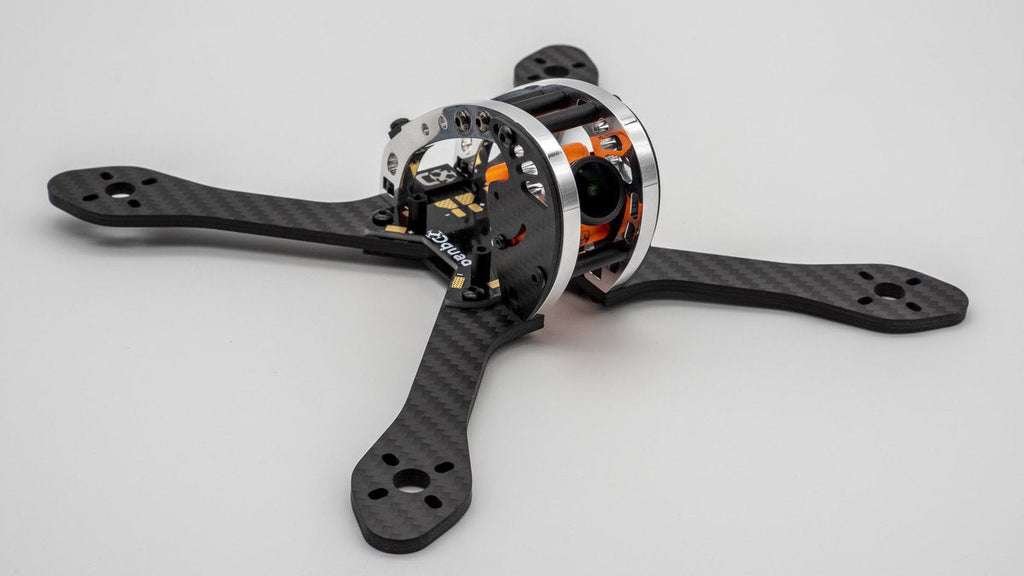

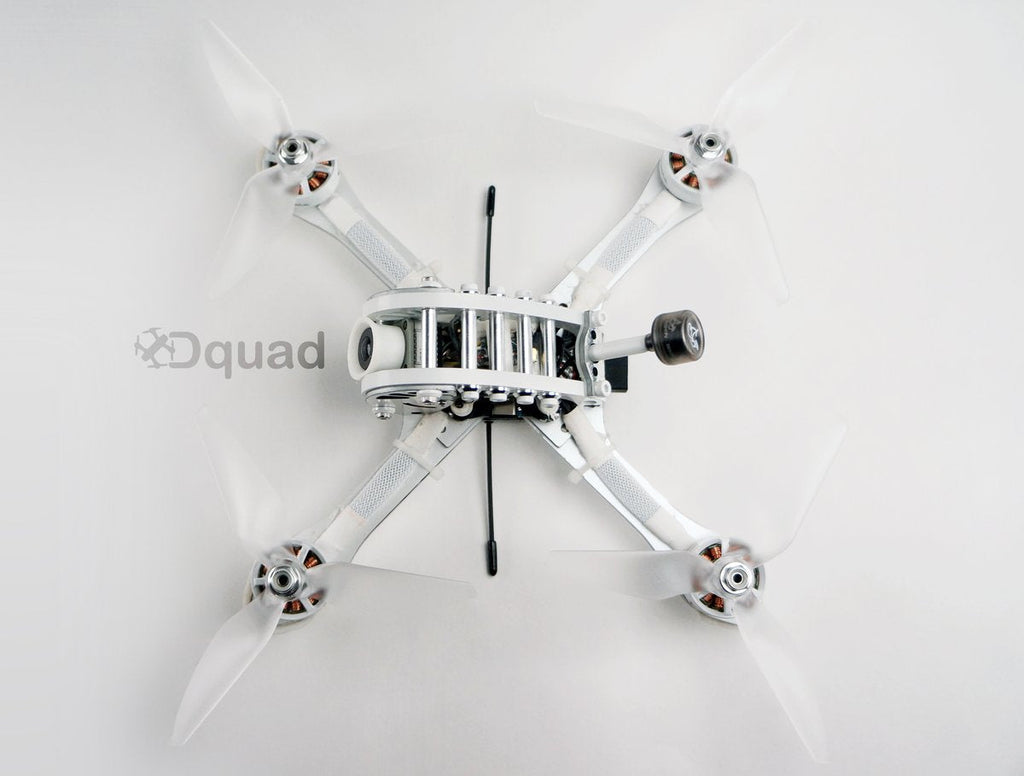

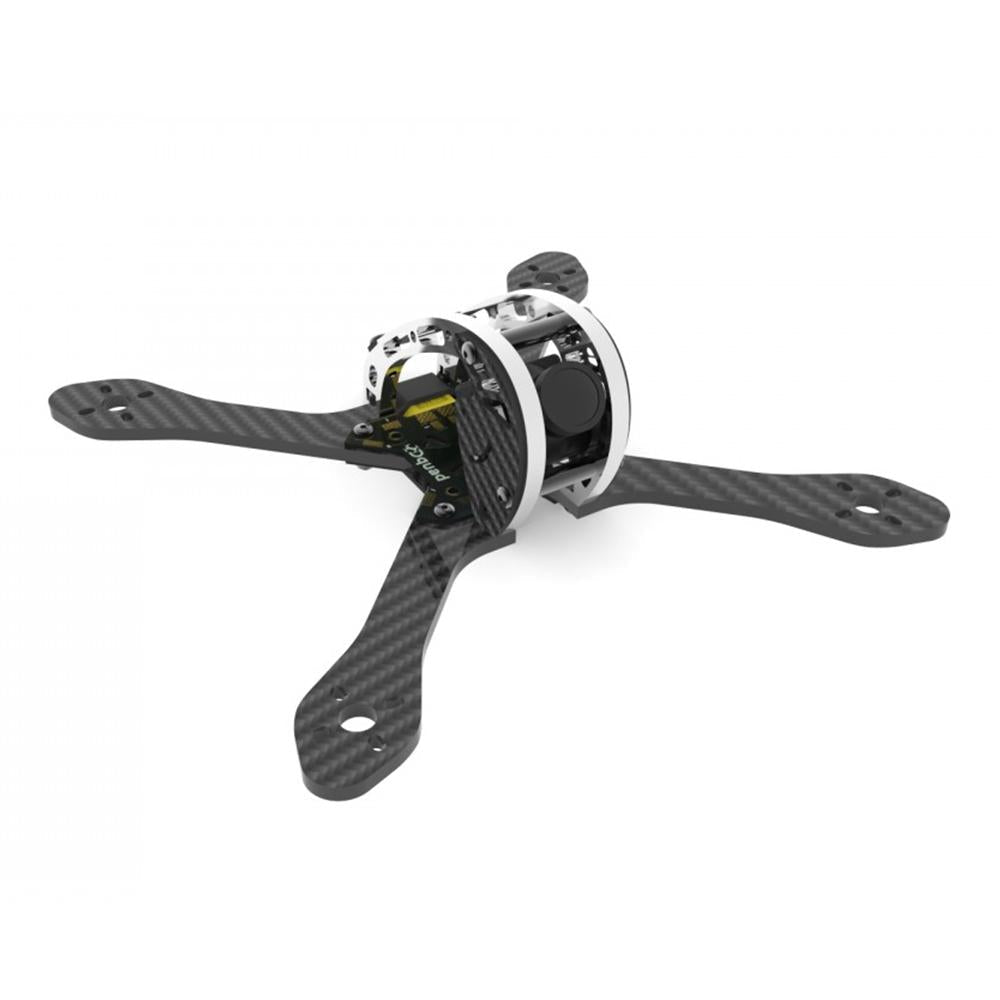

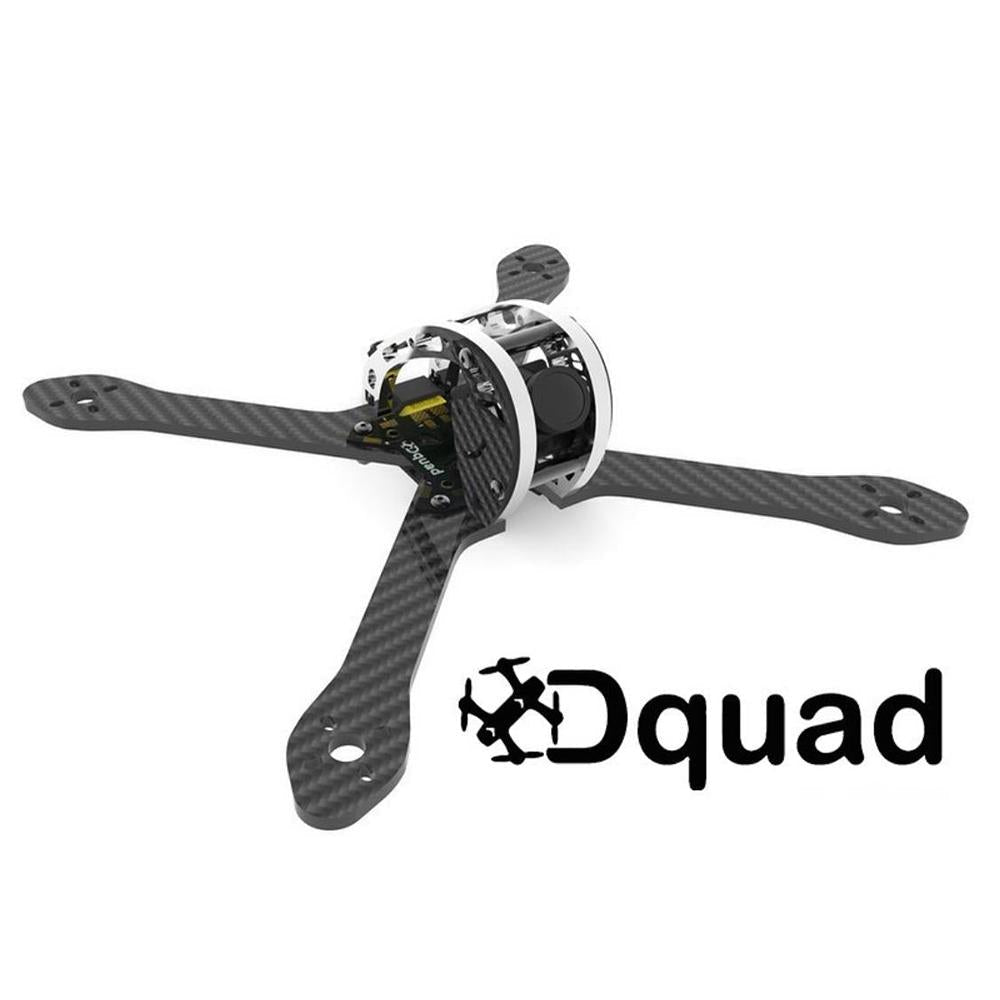

Since its release in 2017 the Dquad Obsession has gained worldwide fame and loved throughout the FPV community. Thanks to the carbon-fiber/aluminum construction the v3 Obsession is a Strong lightweight X quad that is suitable for indoor/outdoor, race/freestyle, advanced/intermediate/beginner.

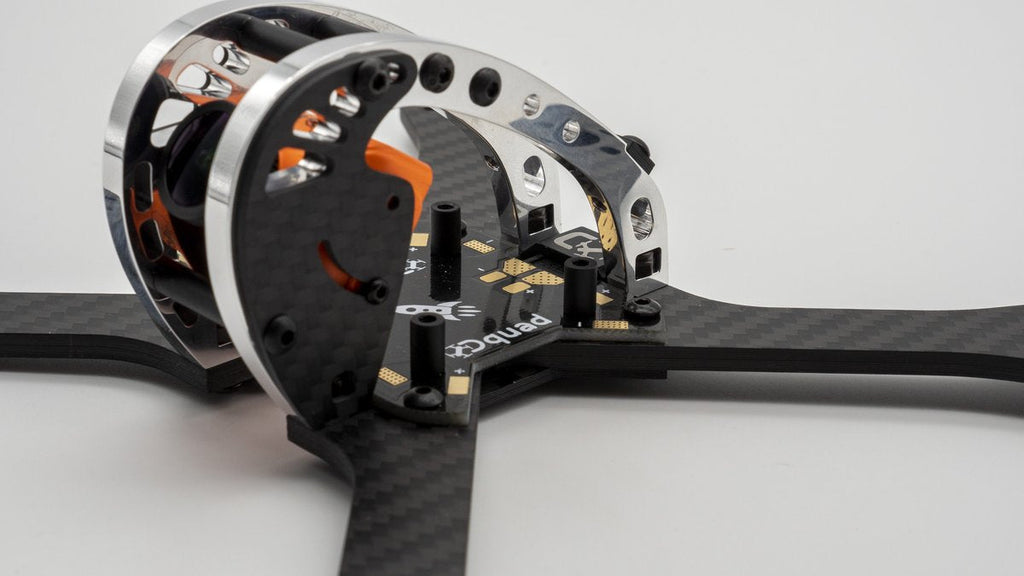

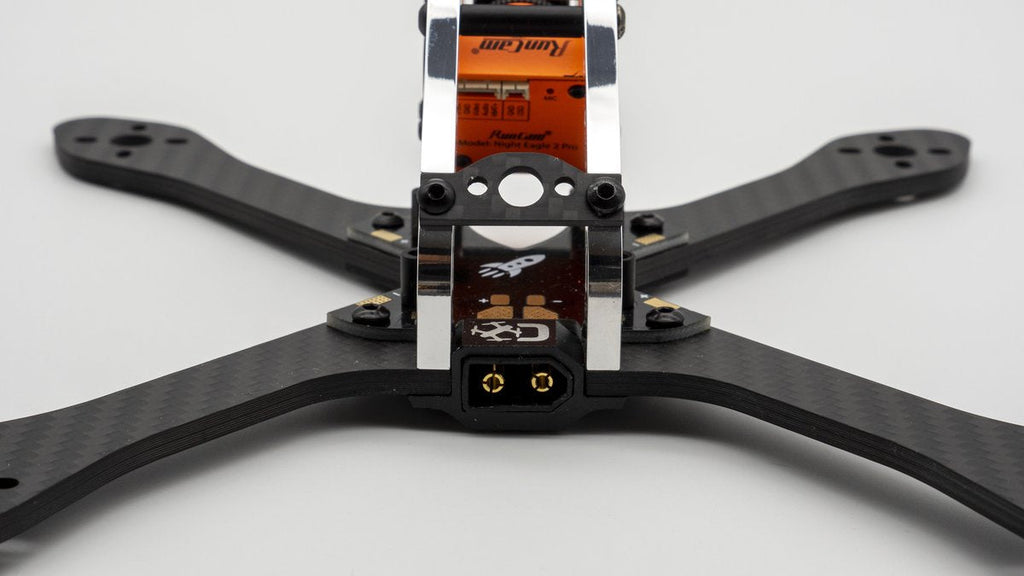

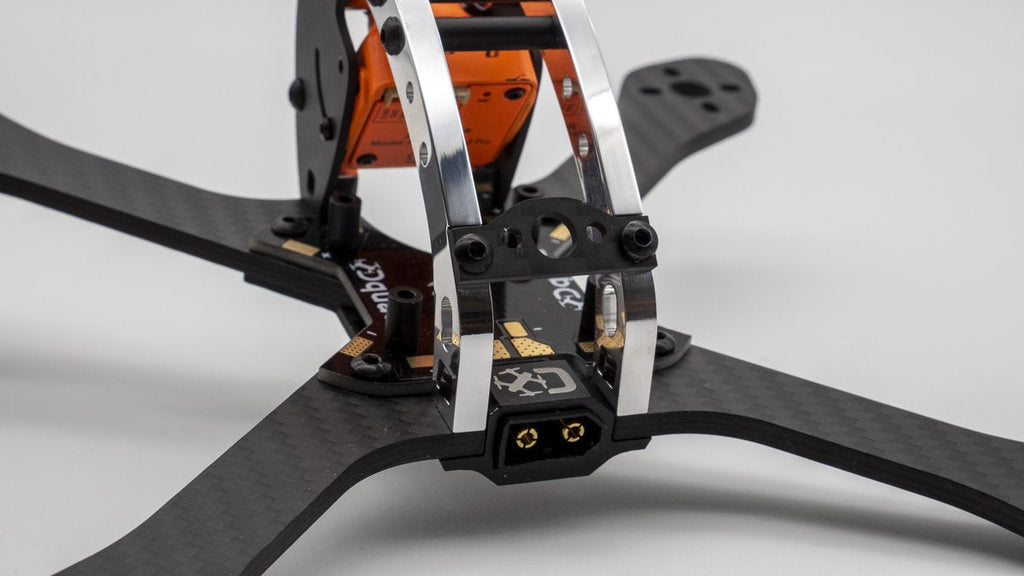

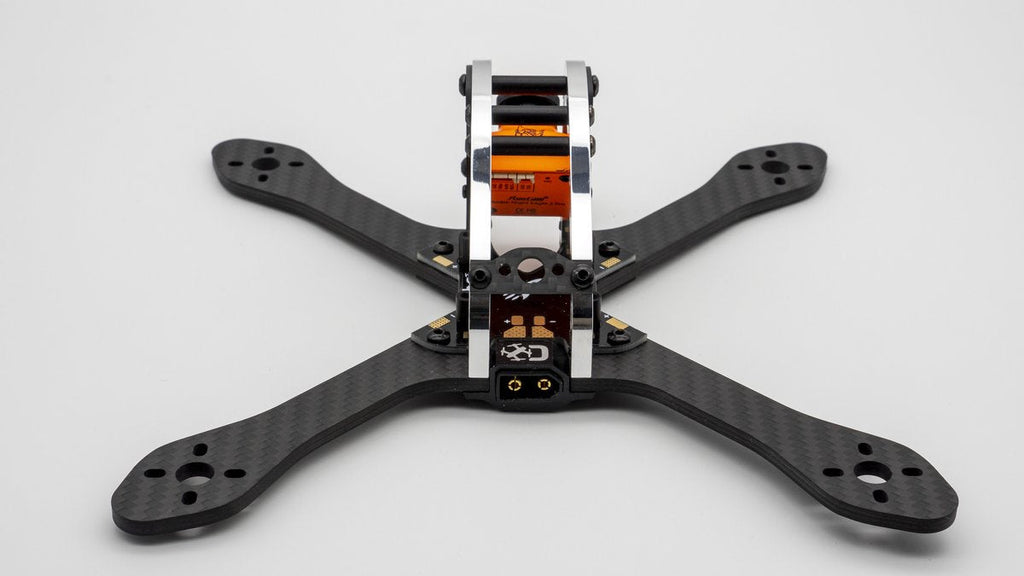

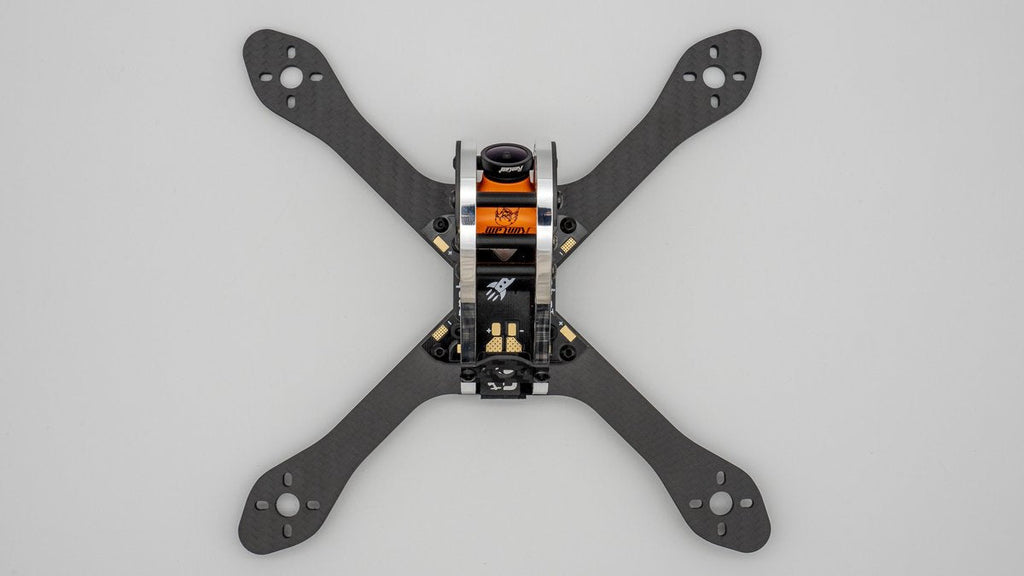

This frame is easy to build and to service when needed. The frame has 4 swappable 4mm carbon arms that come together in the middle without any movement. Why not have a unibody that is 2 gram lighter? That’s because we like to give the pilots an opportunity to get up in the air asap and that’s only possible when you have those nice swappable arms. These 4 arms are held together with a 2.0mm carbon bottom plate and a 2.0mm identical Top plate. The arms are also replaceable without stack bolt removal ensuring quick hassle free arm replacement. It's also possible to build it with the included 2.0mm thick PDB which makes it really nice. The PDB is not one with lots of features on it. We like to keep this clean and simple therefore it has only the + and – on it for the esc’s, power connector, and extra’s. For instance you can use it to power single escs, or you can tap off any + and - to power your aio. On top of the PDB or top plate is enough room to double stack your hardware, like FC, 4in1 esc, VTX, RX, and so on. The xd connector is held in place with a 7075 Aluminum mount which prevents dangling power wires and ensures clean builds.

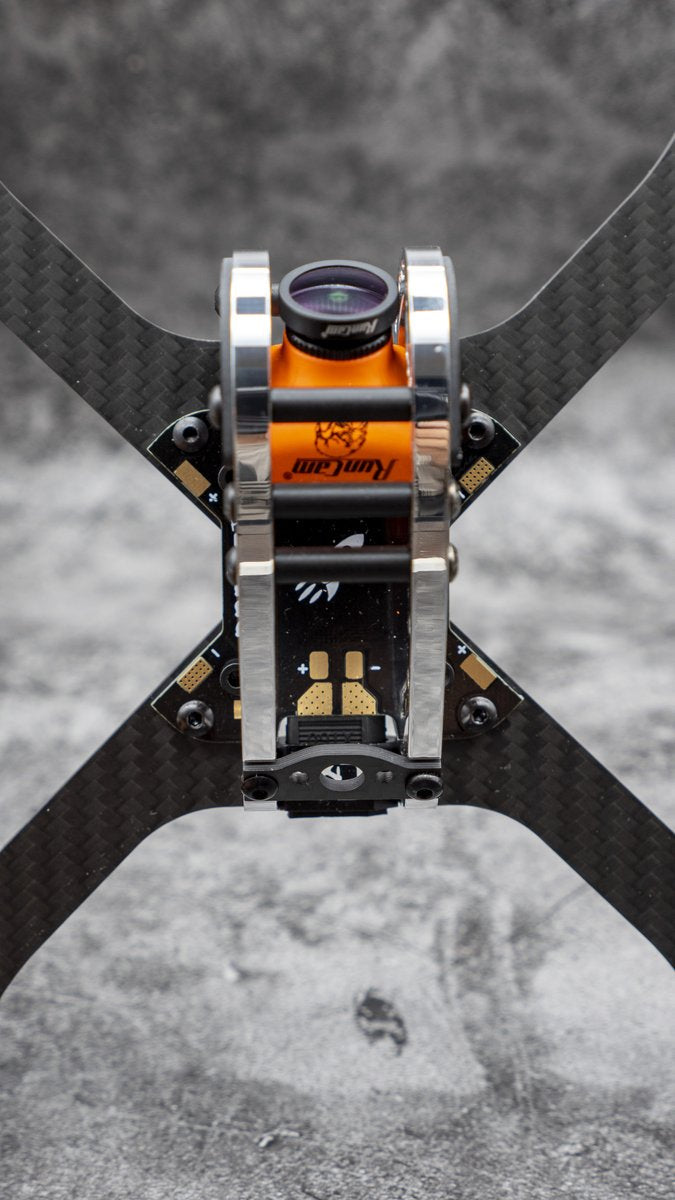

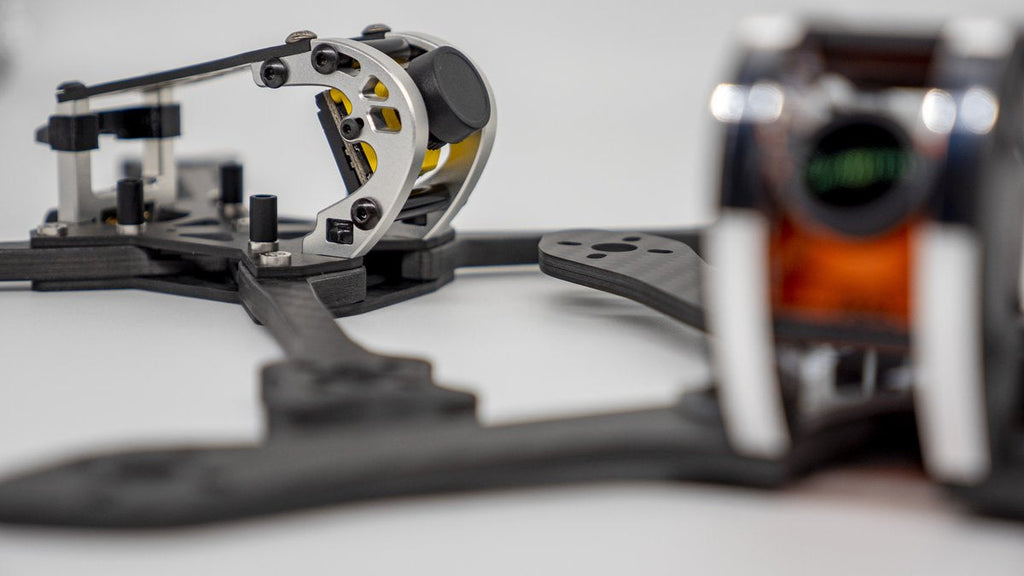

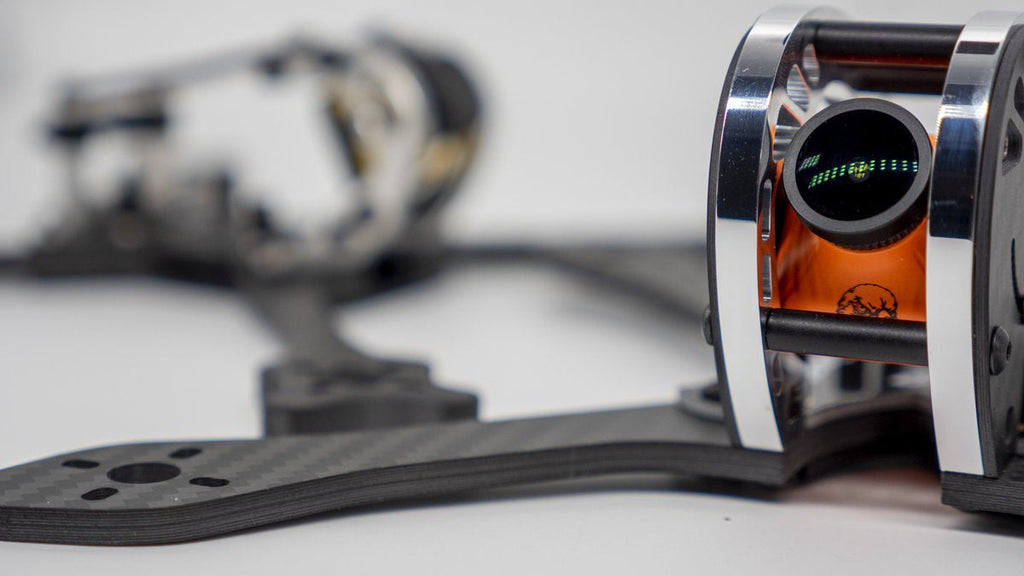

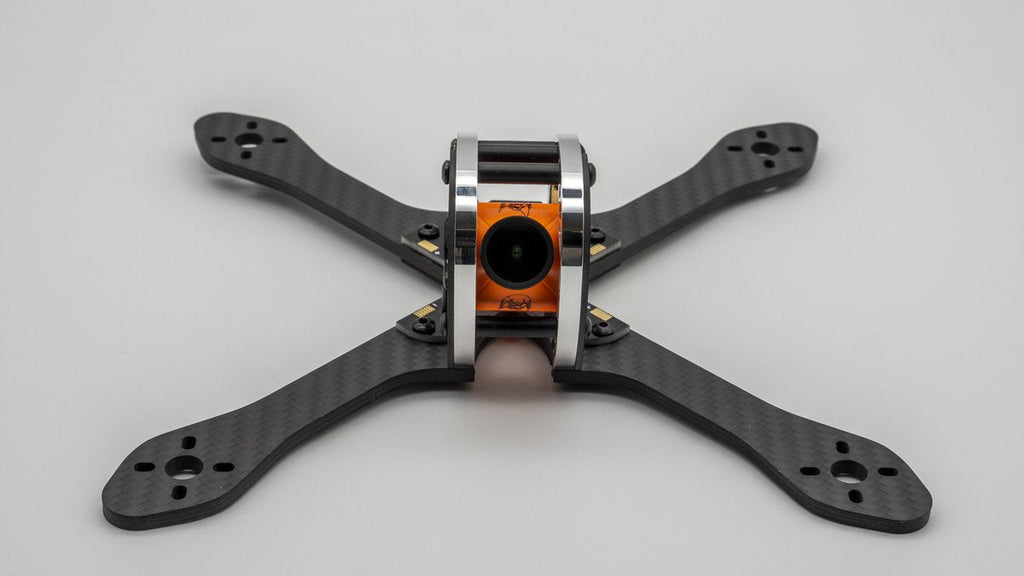

Then we have our 7075 Aluminium roll cage that has two 1.5mm carbon side plates that holds the FPV cam in place. On the backside of the roll cage you will find a 2mm carbon VTX antenna mount. This VTX antenna mount is installed in a 45 degree angle which provides the best signal strength and protects the antenna in the event of a crash. The roll cage also comes equipped with a rigid hd camera mount system which allows for a wide array of gopro mount options.
Check out all our Frames and the rest of our DQuad Products!
SPECIFICATIONS:
- 210mm size 5” true X frame
- Carbon: Armattan high-heat pressed 3k Twill Weave Carbon Fiber
- Supports 30x30 and 20x20 stacks
- Frame weight 105 gram
PACKAGE INCLUDES:
- 4 x 4mm carbon arms replaceable without stack bolt removal.
- 2 x 2.0mm Carbon bottom/top plate
- 1 x 2.0mm PDB
- 2 x 1.5mm FPV side plate
- 2 x 7075 Aircraft Aluminium roll cage Bracket
- 1 x 2mm VTX antenna mount
- 1 x xd connector(black)
- 1 x 7075 aluminum XT60 connector mount
- 1 x Fastener kit
- 1 x battery pad
- 1 x Battery strap
- 1 x sticker
The Dquad obsession is manufactured by Armattan Quads
