JHEMCU UPDATED GHF411-HD AIO F4 OSD FLIGHT CONTROLLER AND BUILT-IN 40A BLUEJAY 3-6S 4IN1 ESC

Name: JHEMCU UPDATED GHF411-HD AIO F4 OSD FLIGHT CONTROLLER AND BUILT-IN 40A BLUEJAY 3-6S 4IN1 ESC
Brand: JHEMCU
SKU: GHF411-HD-AIO
Price: 58.0 USD
Availability: InStock

JHEMCUSKU: GHF411-HD-AIO

Precio:

$58

Impuestos incluidos Gastos de envío calculados en la caja

Stock:

Disponibles (13 unidades), listas para ser enviadas

Cantidad:

Add to Wishlist

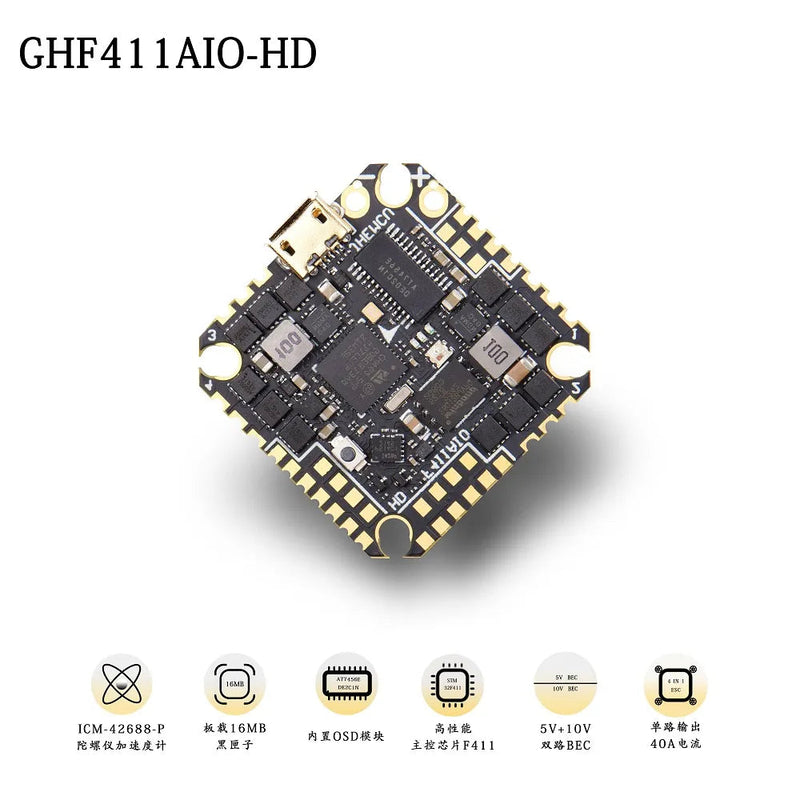

This is the updated version of the GHF411AIO-ICM.

FC Specifications

Brand name： JHEMCU
Model: GHF411AIO-HD
MCU： STM32F411/100MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD： AT7456E
Baro： YES
Blackbox： 16MB
Input voltage: 3S-6S（11.5V-26V）
5V-BEC： 5V/2.5A ±0.1V
10V-BEC: 10V/2A ±0.1V
Receiver： ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass： YES
HD O3： YES
USART: UART1,UART2,Softserial(软串口)
IIC： IIC1
Led_Strip: YES
Buzzer: 5V
ESC signal: Dshot150，Dshot300，Dshot600
USB: Micro USB
Current port： YES
Voltage sensor：YES
DFU button： YES
FC Firmware: betaflight_4.4.2 JHEF411HD.HEX

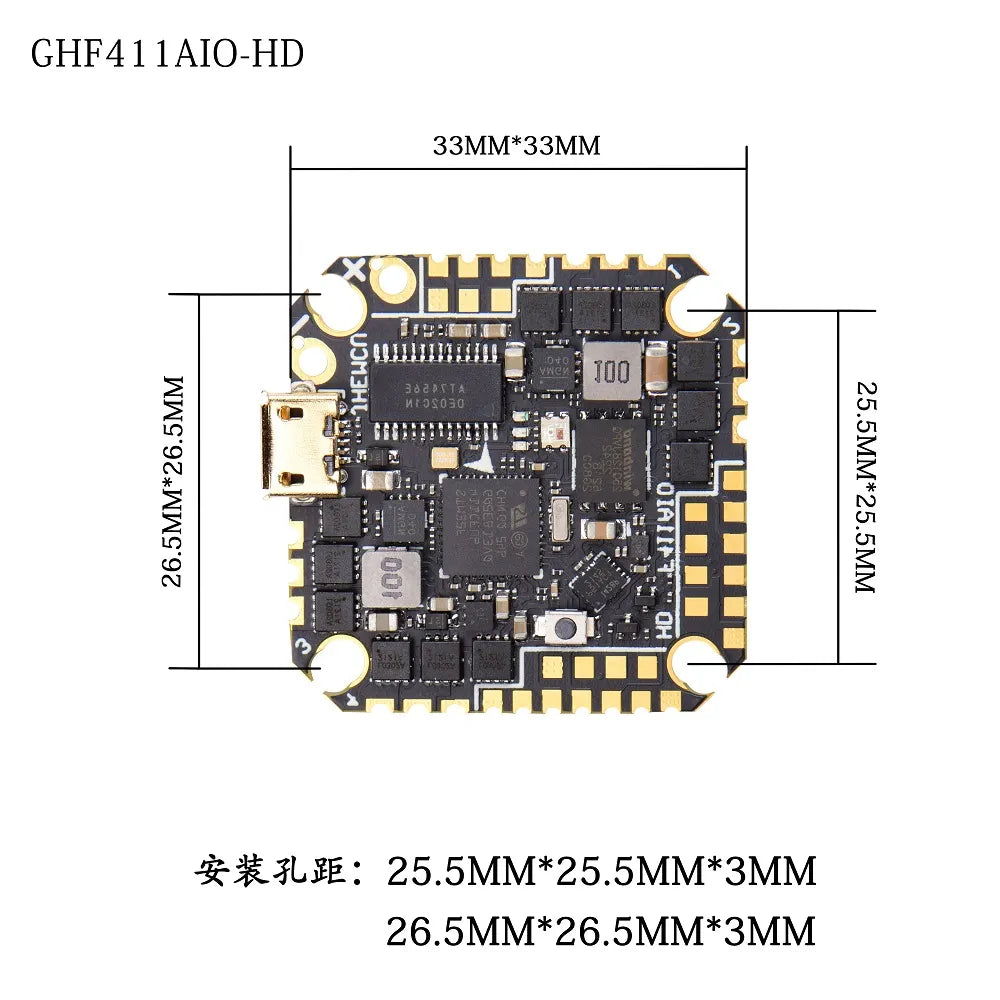

Size: 33*33MM
Mounting Hole:25.5*25.5*3MM
26.5*26.5*3MM
Weight: 7.6g

ESC Specifications

ESC Current: 40A
ESC MCU： EFM8BB21
ESC TYPE: Blheli_S
ESC Firmware: G_H_30_48_v0.19.2.HEX（bluejay）

Packaging List：

GHF411AIO-HD * 1
XT60 * 1
M2 * 6.5MM shock absorber * 4
40A-16AWG wire * 2
O3 connecting line 5P to 6P * 1
470UF/35V capacitor * 1
TYPE-C adapter board * 1
28AWG Wire * 4
Welding practice board * 1
