Descripción

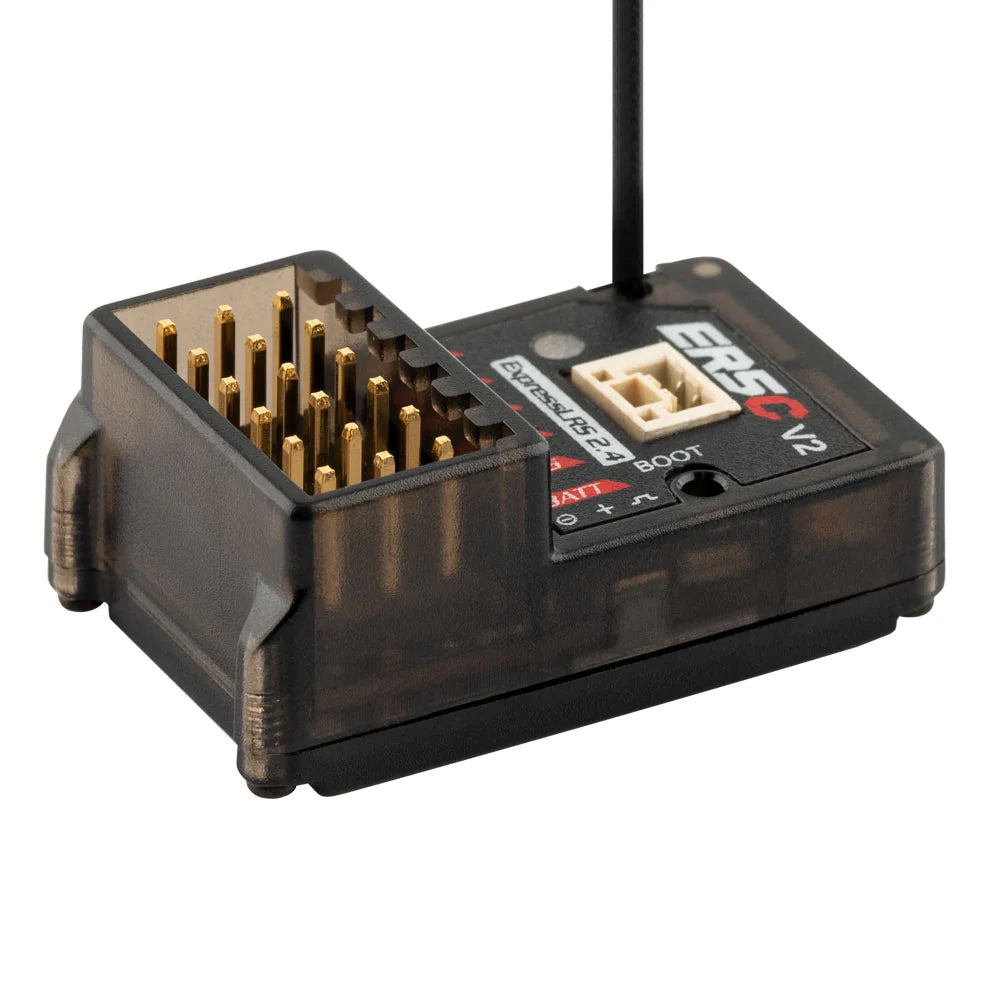

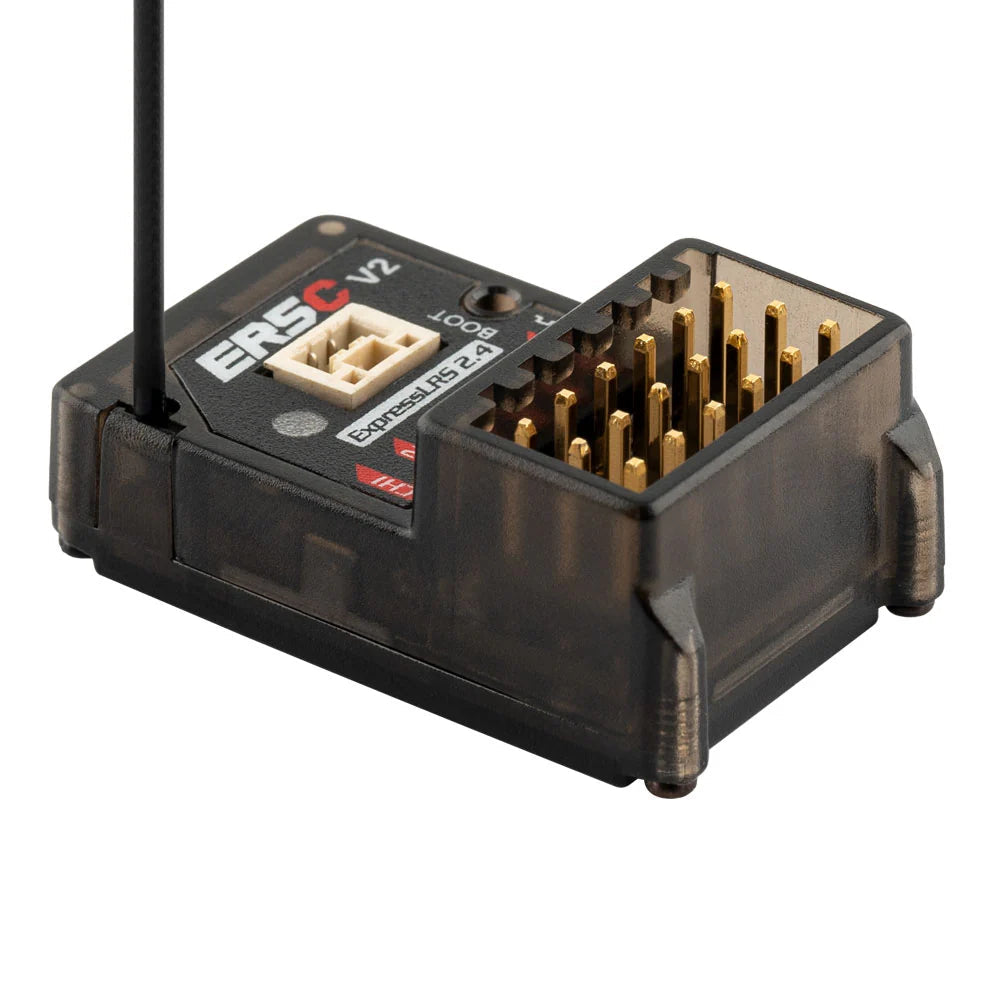

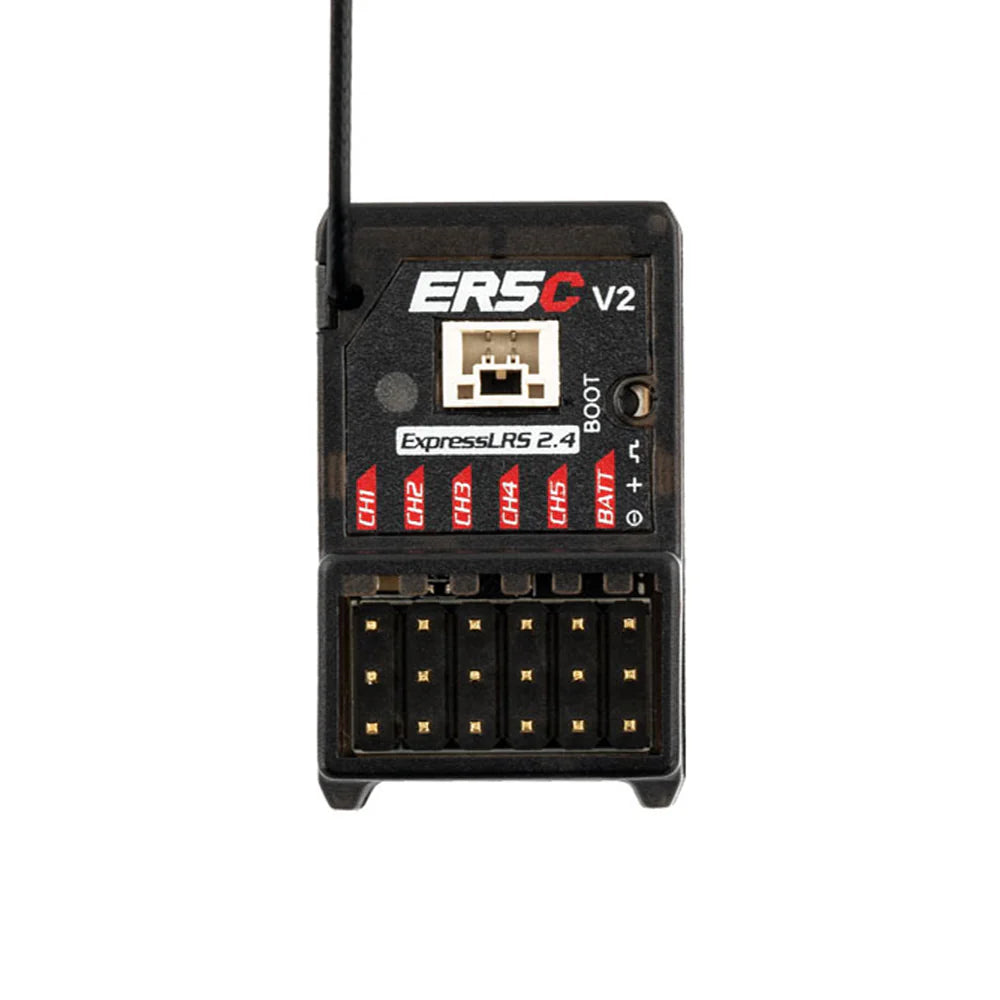

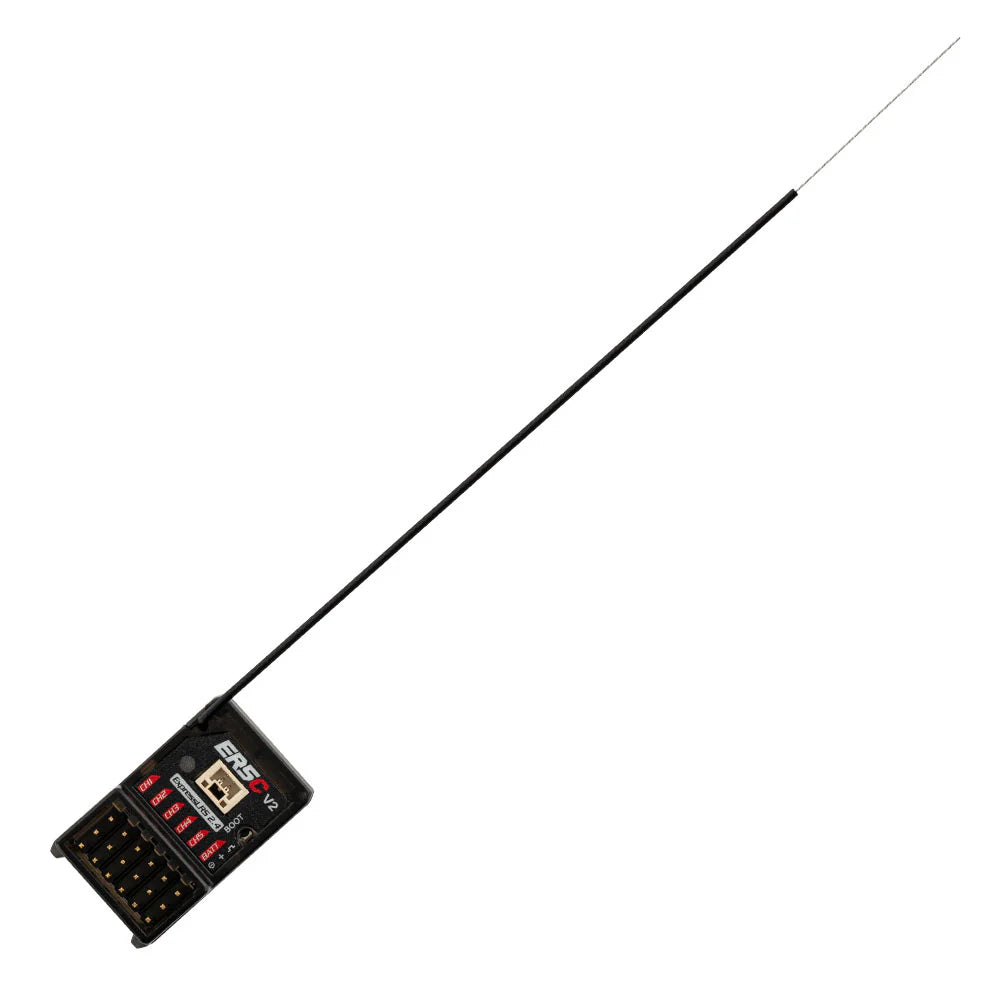

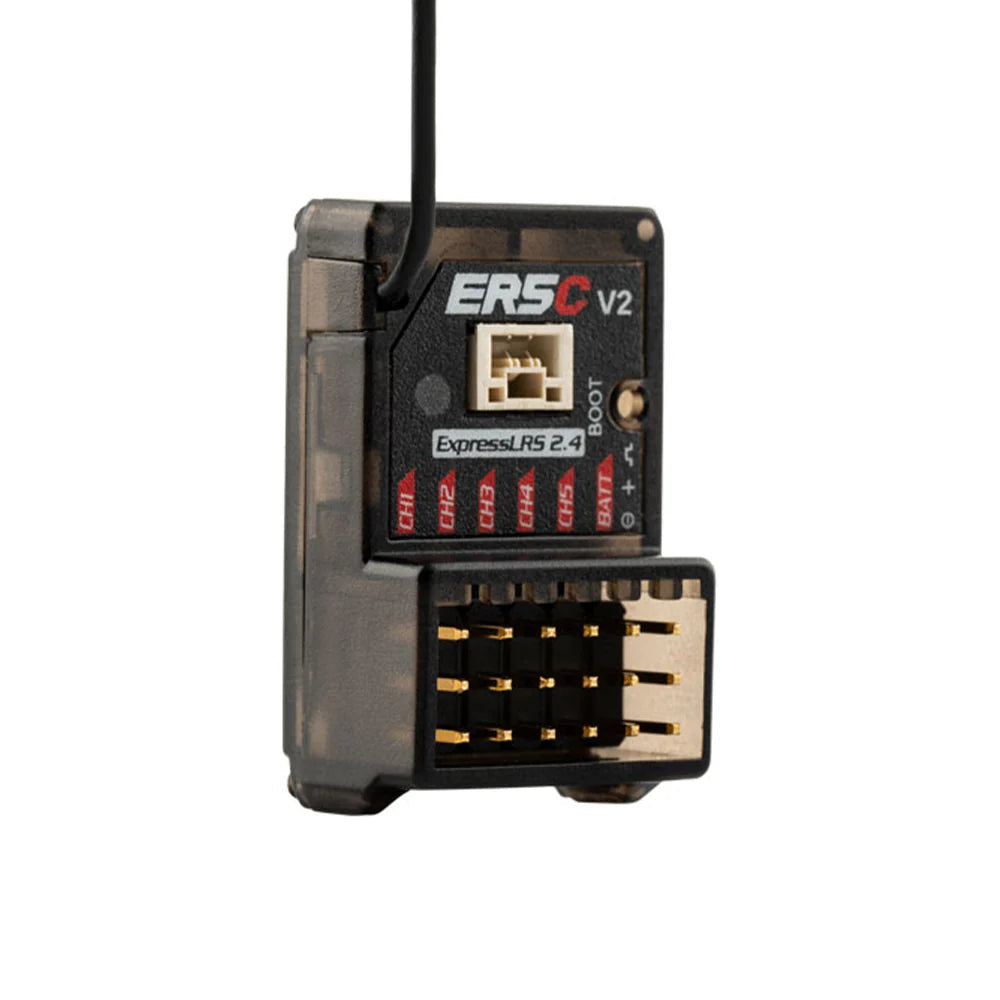

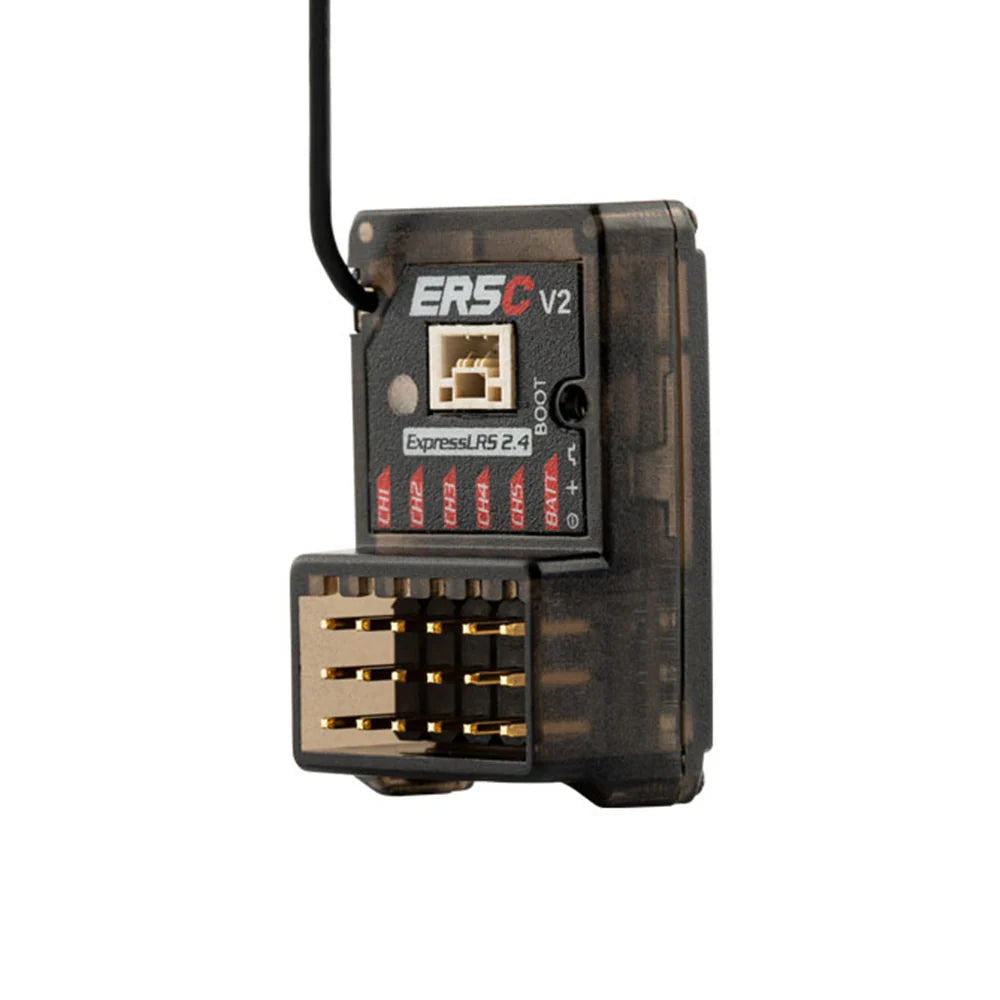

ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.
The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 5 PWM Channels
- Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
- Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
- Optimized ground up PCB design
- Supports Wi-Fi updates and WEBUI configuration
- Compact size, easy to install. Perfect for surface & marine R/C applications
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item: ER5C V2 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5-8.4V
- Antenna type: High-sensitivity antenna
- Wireless Protocol: ELRS 3.3.0 pre-installed
- Channels: 5
- Telemetry Voltage Detection Range: DC 4.0 - 35V
- RF Telemetry: Yes
- Telemetry Power: 10mw
- Weight: 5.7 grams
- Size: 30.0 * 18.5 * 13.0mm
- Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX
Size
Package Includes

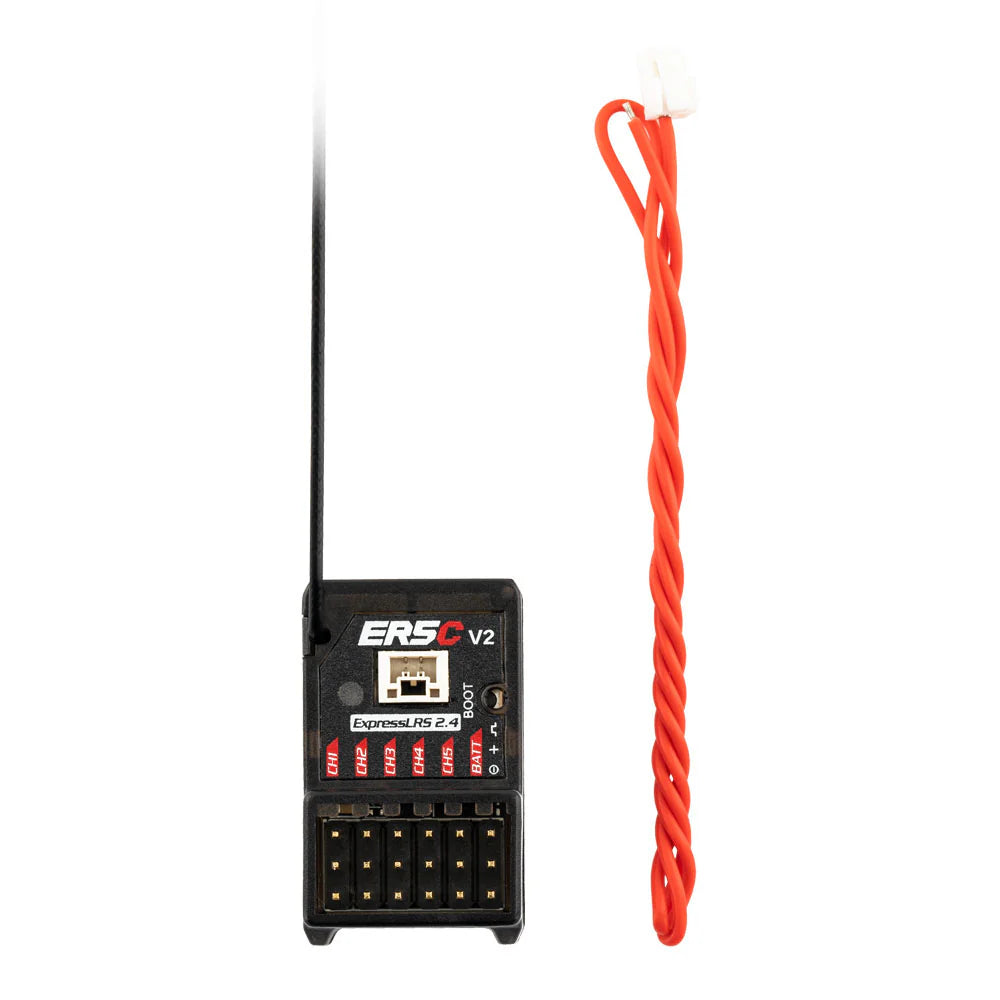

- 1 * ER5C V2 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire
- 1 * User Card
