Description

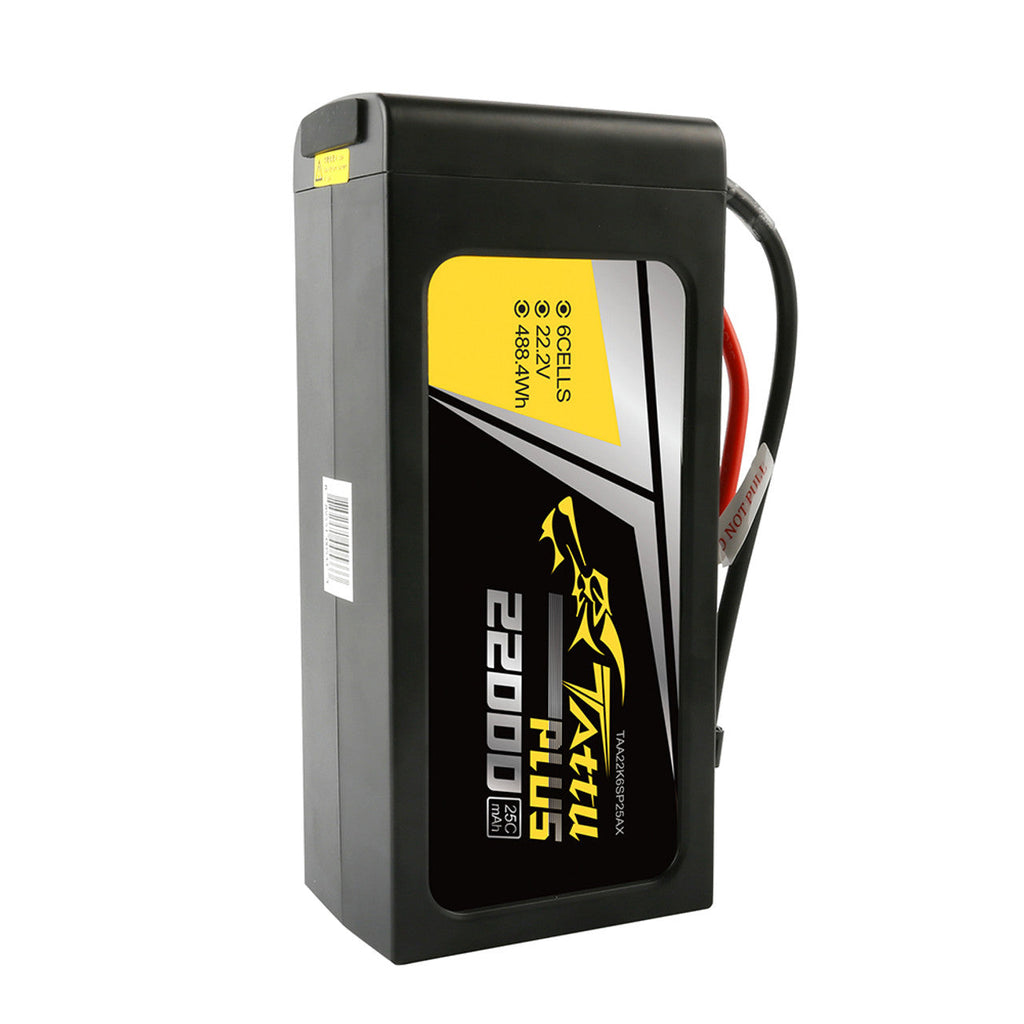

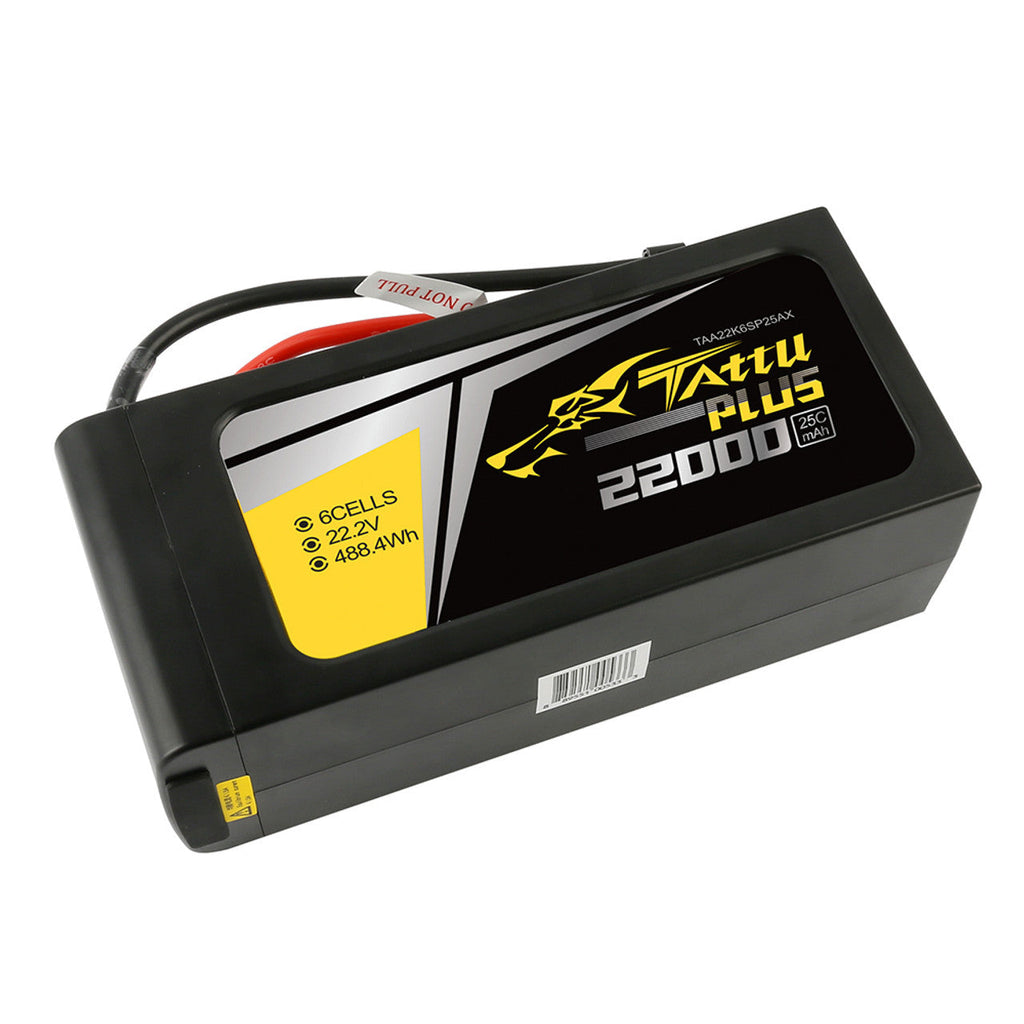

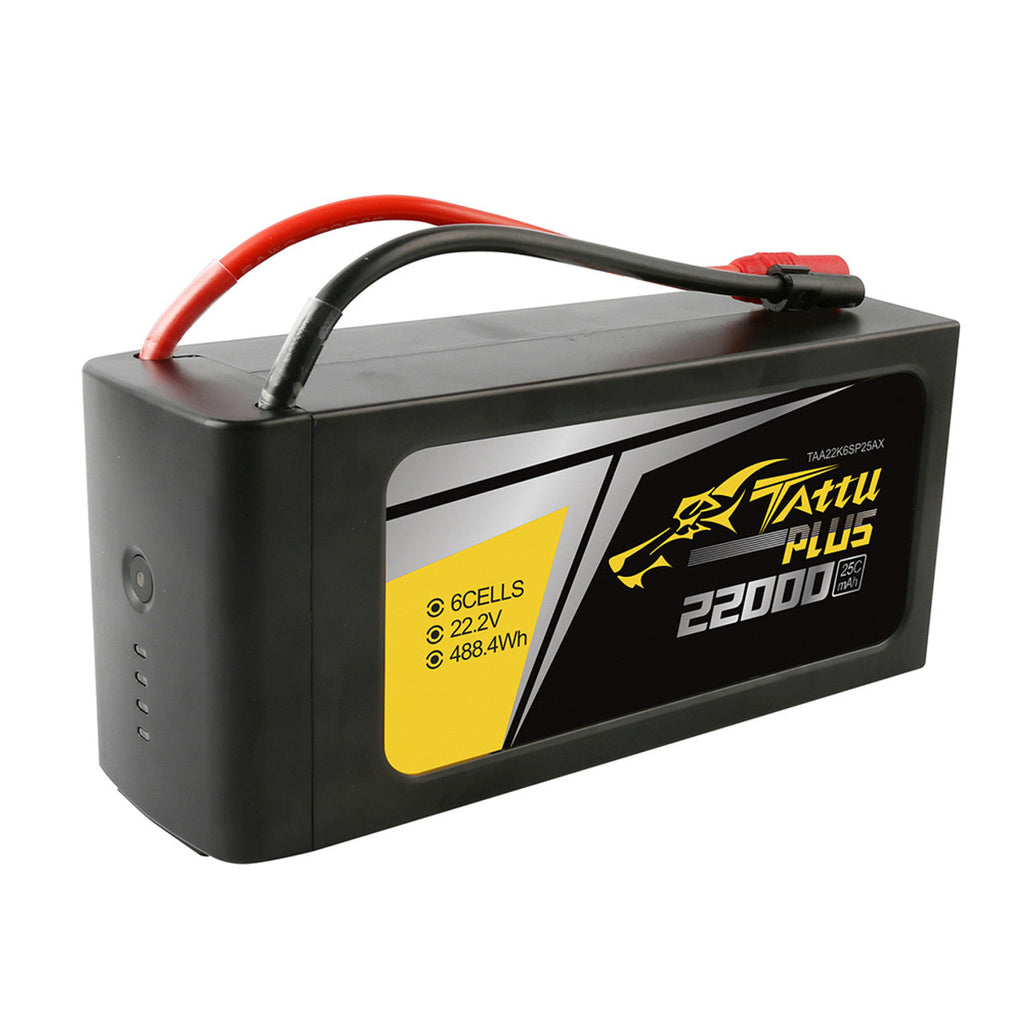

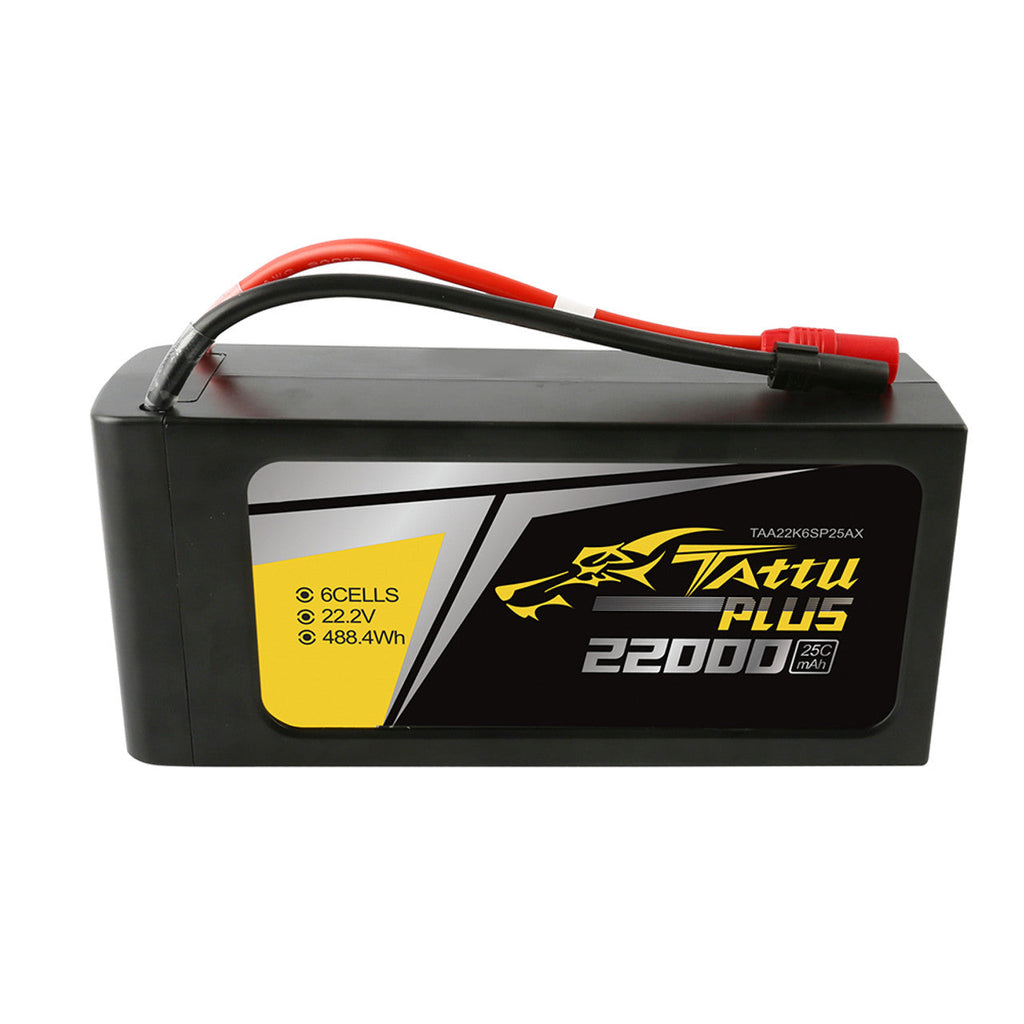

Tattu Plus 22000mah 22.2v 25c 6s1p Lipo Smart Battery Pack with AS150/XT150 Plug
Tattu Plus 22000mAh 22.2V 25C 6S1P Lipo Battery Pack is best suited to DJI S1000/S1000+/OnyxStar FOX-C8-HD/Gryphon Dynamics X8/Gryphon Dynamics-12 DODECA/Gryphon Dynamics-8, etc.
Note: Please do not choose expedited shipping unless you live in greater Sydney as batteries cannot be shipped by Air.
Tattu Plus, a smart battery specially designed for UAV. Protective casing give these batteries extra safety during the flight. Power lead is also longer then normal tattu batteries. Indication LED lights of the batteries can let you know how full of the capacity the batteries have when charging. Warning lights to give you indications of the temperature, over/under the charge and cells balance healthy level. These lipo batteries will also go into an intelligent storage mode when you fully charge the batteries and decided to store away. The batteries itself will discharge in the storage mode to keep the voltage at a certain level for storage. The amazing battery management system (BMS) will smartly manage your battery and extend your battery life. This BMS is a trend of Lipo batteries, it's the new generation of UAV batteries.
Features
- Battery status indicate function
- Storage & self-discharge function
- Over voltage and under voltage alert function
- Over Temperature and low-temperature alert function
- Cell abnormal alert function
- Difference of cell voltage fault + temperature fault warning function
Specification
- Capacity: 22000mAh
- Voltage: 22.2V
- Max Continuous Discharge: 25C
- Max Burst Discharge: 50C
- Weight: 2650g
- Dimensions: 213*96*69 mm
- Balance Plug: Micro USB & JST-XHR
- Discharge Plug: AS150+XT150
Lipo Battery Safety
- Batteries should NEVER be left unattended while charging.
- Be absolutely sure that the Lithium Polymer charger settings are correct for the battery pack being charged – both voltage and current settings.
- Lithium Polymer must be CHARGED and STORED in a fire-safe container like a Lipo Sack.
- Do not charge batteries near flammable items or liquids.
- Keep a dry fire extinguisher nearby or a large bucket of dry sand, which is a cheap and effective extinguisher.
- Never charge inside an automobile even when parked.
- KEEP BATTERIES AWAY from children and pets at ALL times.
- Never discharge below 3.5V per cell as it may cause permanent damage and void warranty
- The battery may explode if damaged or disposed of in fire
- Never leave batteries inside a car on a hot day or any other place where the temperature may exceed 140F / 60C.
- Although environmentally friendly, lithium polymer cells must be FULLY discharged before disposal. Use a resistor setup (light bulbs, for example) to accomplish this, to avoid the possibility of a short-induced fire after disposal.
- Immediately discharge damaged batteries at 1/2 C rate and dispose
- Do not put the loose cells in a pocket, bag, or drawer where they could short-circuit against other items, or the battery tabs could be pressed against each other.
- Take care that the cells are not punctured, especially by metallic objects like hobby knives.
- If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention for this, or for burns.
