Description
hello graphics
On top of the normal Betaflight OSD, RADIX LI on-screen-display gives you extra features you can't get anywhere else. Proudly show off your pilot and team logo using our logo customizer with just a click of a button. Extra features also include a graphical barometer scale, artificial horizon, gyro spectograph, RC stick display, 3D OSD support and more!
hello features
There are WAY MORE features than customizing your logo on the splash screen. Features you cannot get with the normal Betaflight OSD. You have heard about the graphical features of our OSD. But what exactly are they, and how do I use them? Find out about all the cool features and how to enable them here: HOW TO PIMP YOUR BRAINFPV OSD
hello stacking

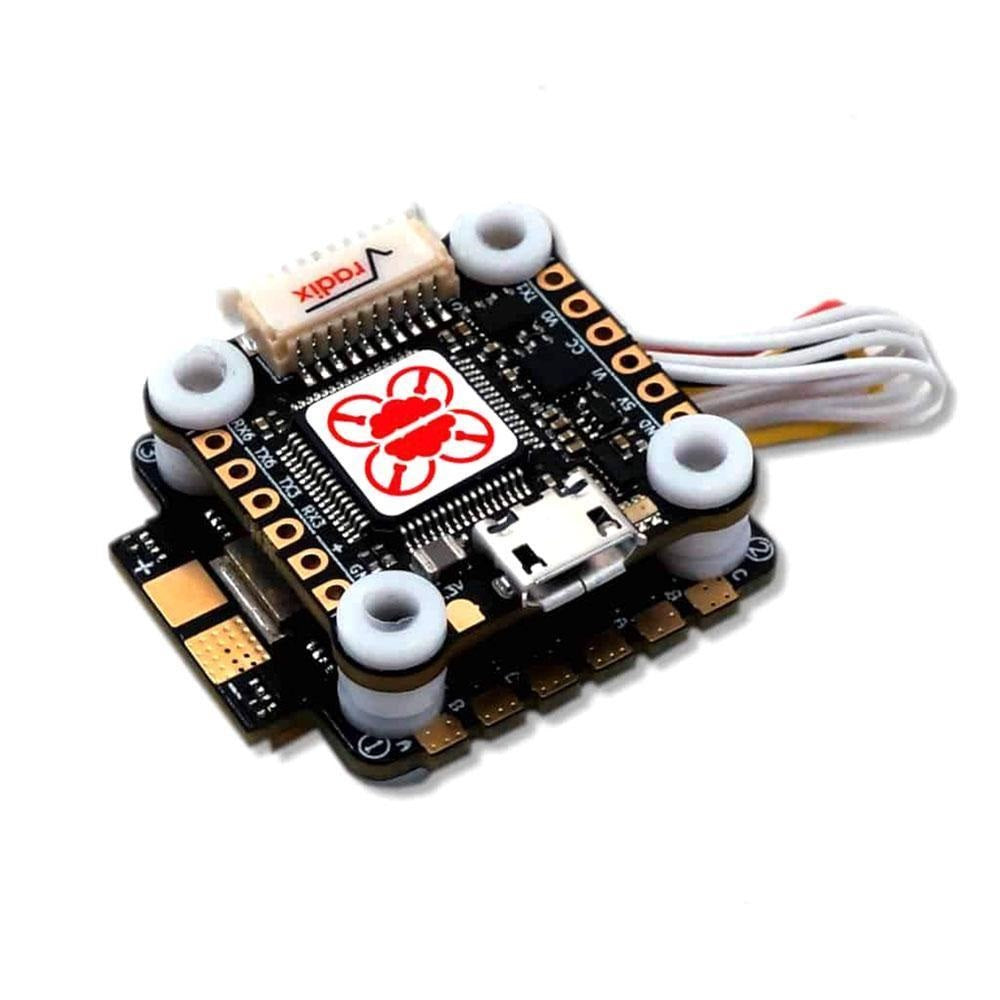

RADIX LI can be used with any 4-in-1 ESC on the market. It comes with cables and connectors to easily make your own wiring harness. To make things even easier, we have a RADIX LI & Spedix IS25 4-in-1 combo that is truly plug-and-play.

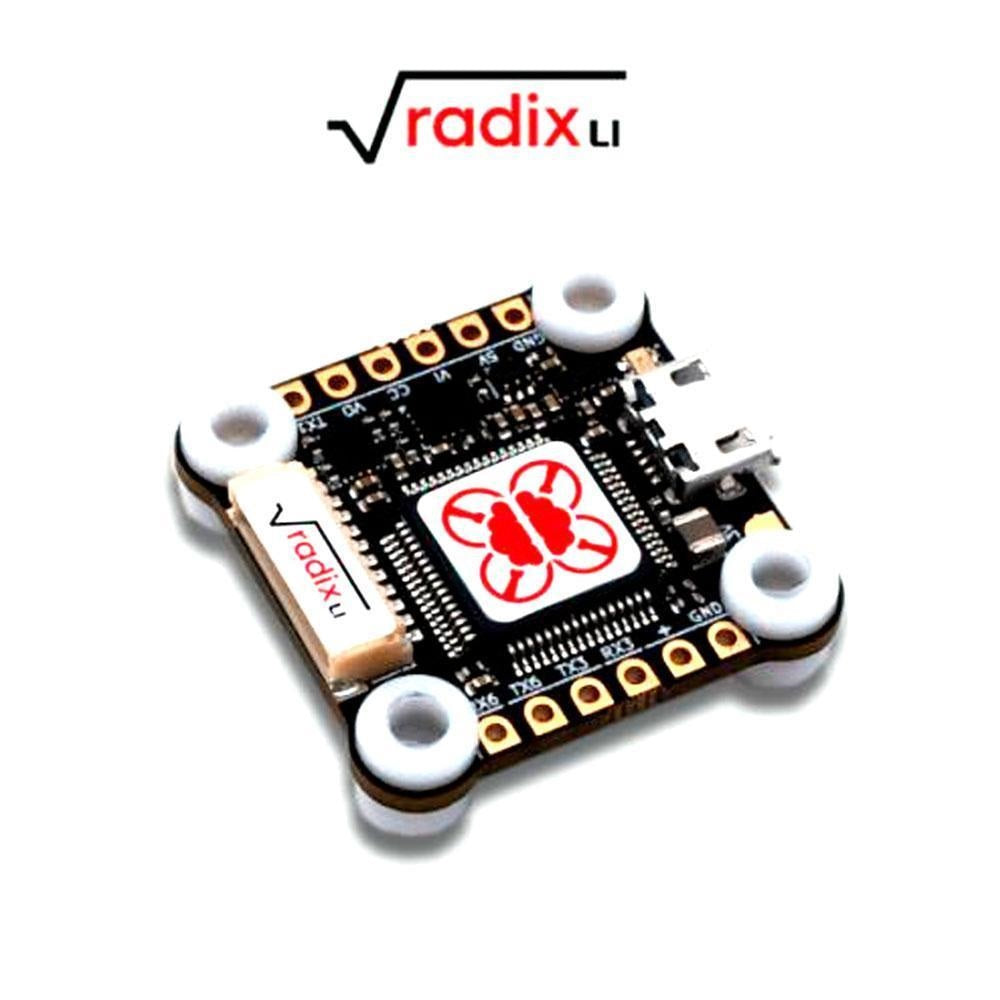

Compared to the RADIX, the RADIX LI:
SMALLER
(duh): 20mm hole spacing, 26.5mm x 26.5mm outside dimensions
HAS 5V REGULATOR
Can be powered directly from a 3S - 6S LiPo battery (500mA BEC built-in)
NO BARO
You can attach a GPS to it if you want to know how high you are
NO MICRO SD SLOT
Who needs blackbox if you can use the custom BrainFPV OSD spectrograph for tuning?
NO ANALOG RSSI INPUT
Using RSSI or LQ over an RC channel is more common and more accurate anyways.
SO RIDICULOUSLY CUTE
It is just cuter. Nothing more to say.
NOTE: 4 IN1 ESC IS NOT INCLUDED
Includes:
- RADIX LI flight controller
- Silicone anti-vibration grommets 4x
- BrainFPV 4-in-1 ESC cable kit (cables and connectors to make a cable that works with any 4-in-1 ESC with a JST-SH 7 pin, 8 pin, or 10 pin connector)
Important Notes:
- Before soldering or mounting any flight controller, connect it to your PC and verify operation
- Incorrect soldering techniques will damage this board and void warranty. Please use the correct sized tip, temperature and technique. Temp controlled soldering irons (such as the TS100) are available for under $100 and will make soldering much easier.
- Lifted pads are a result of incorrect soldering techniques or excess mechanical pressure and will not be covered under warranty.
- USB ports must be handled with care, breakage of usb ports are not covered under warranty
- Always use a smoke stopper before powering your build for the first time.
