Description

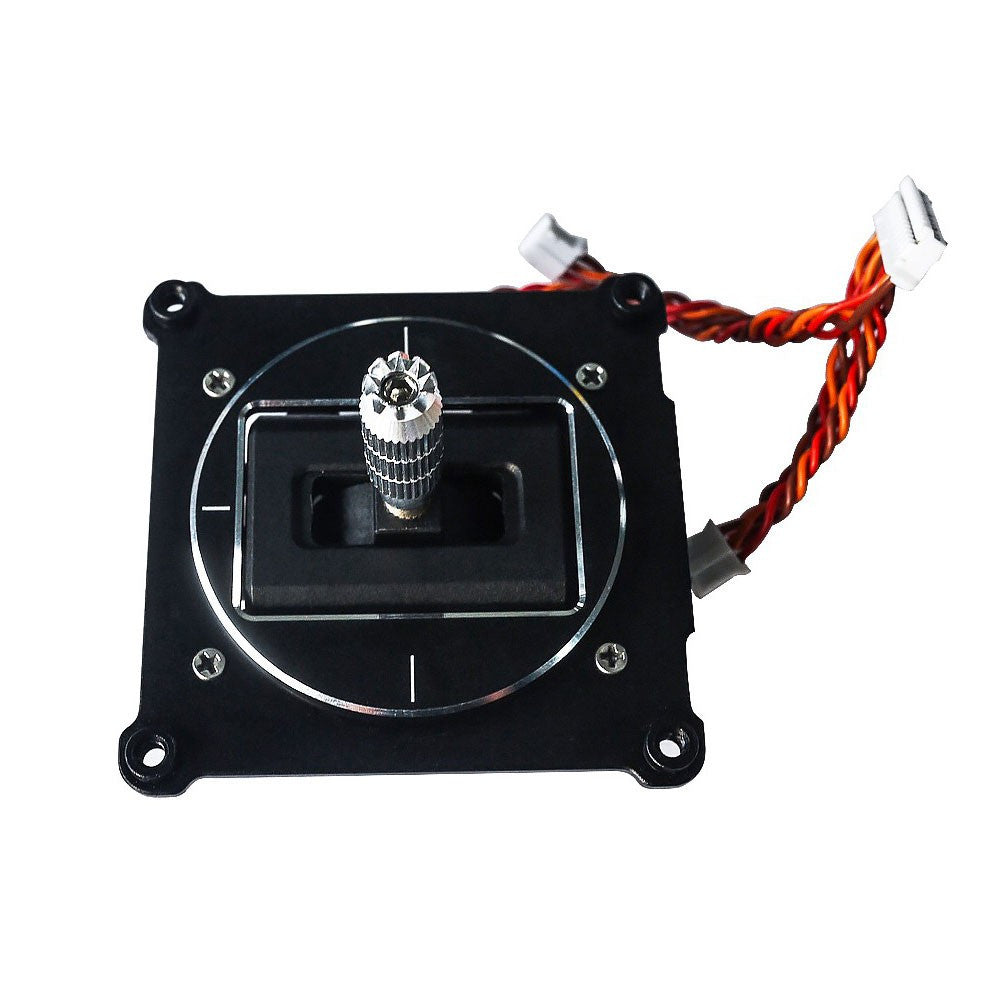

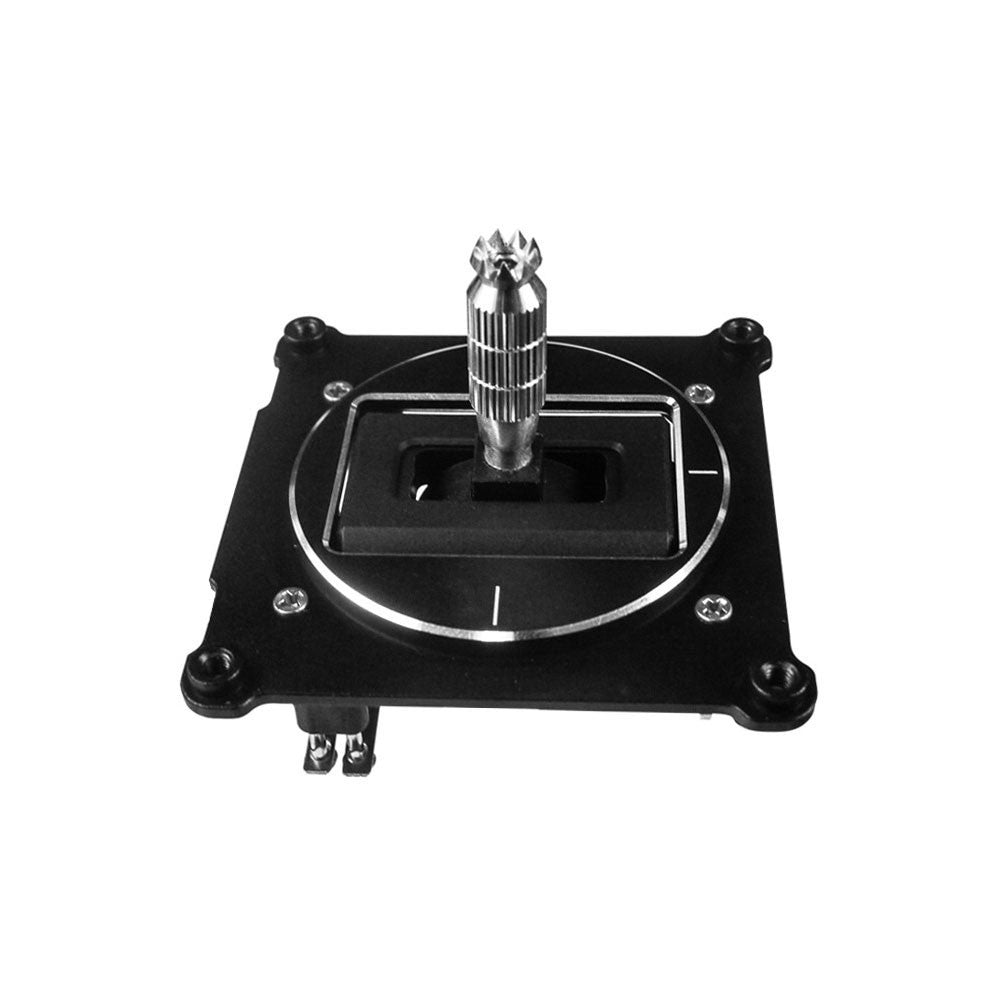

Upgrade your Taranis X9D with this plug-n-play high resolution M9 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.
Please note: Purchase is for 1 x Gimbal
Features;
- Hall sensor
- 4 ball-bearings
- Adjustable tension
- Can be enable or disable self centering on both axis and ratcheting on the Y axis
Specifications;
- Supply Voltage (VCC): DC 3.0 ~ ±0.5V
- Sensitivity: 2.50 mV/G
- Linear Output Voltage Range:
- 0.1 ~ ( VCC +0.1) V
- Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
- Noise (no load): ≤40mVpp
