Description

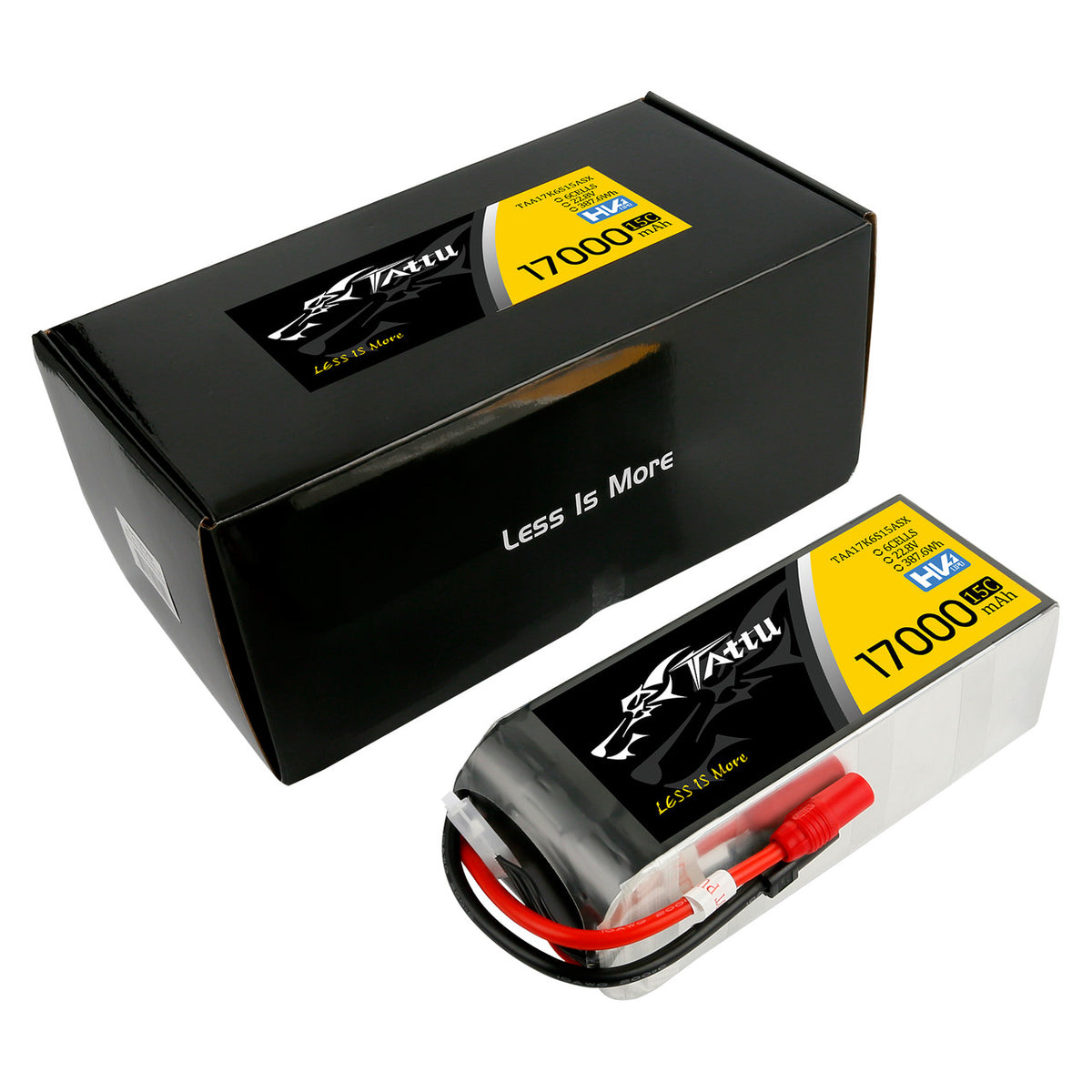

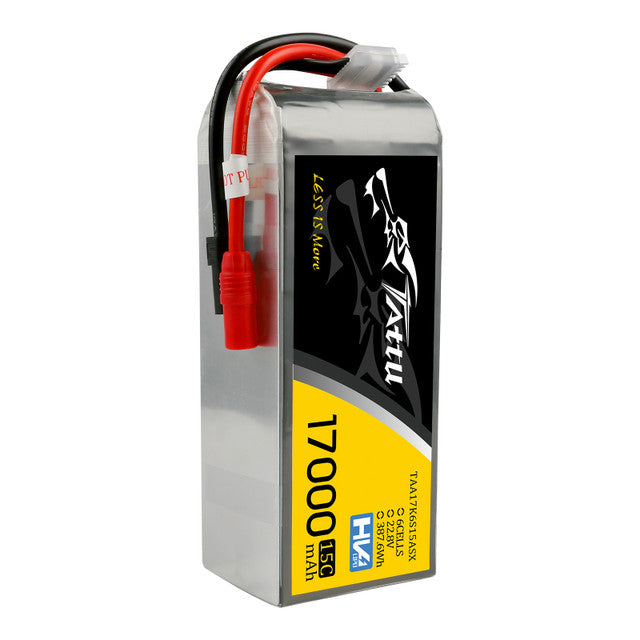

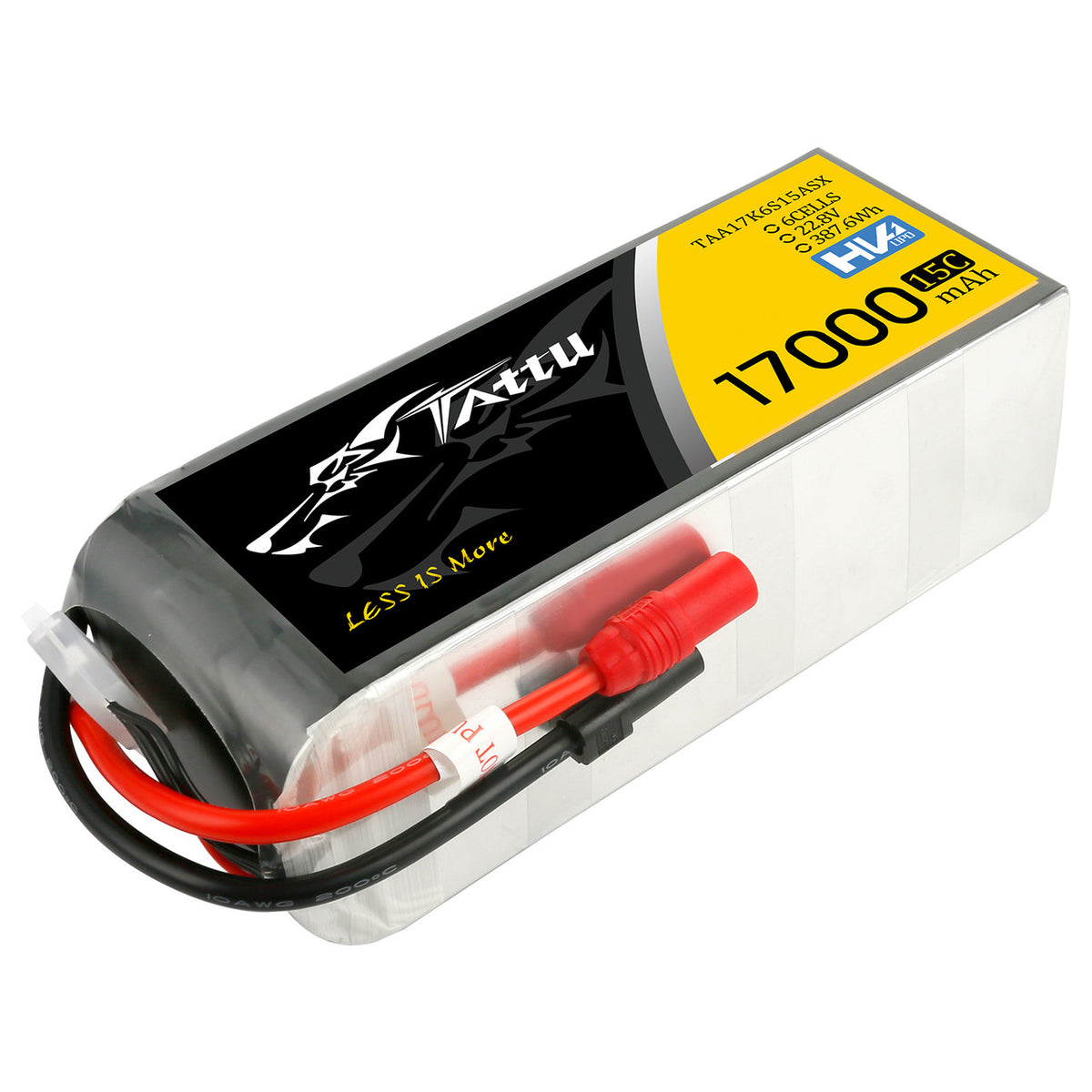

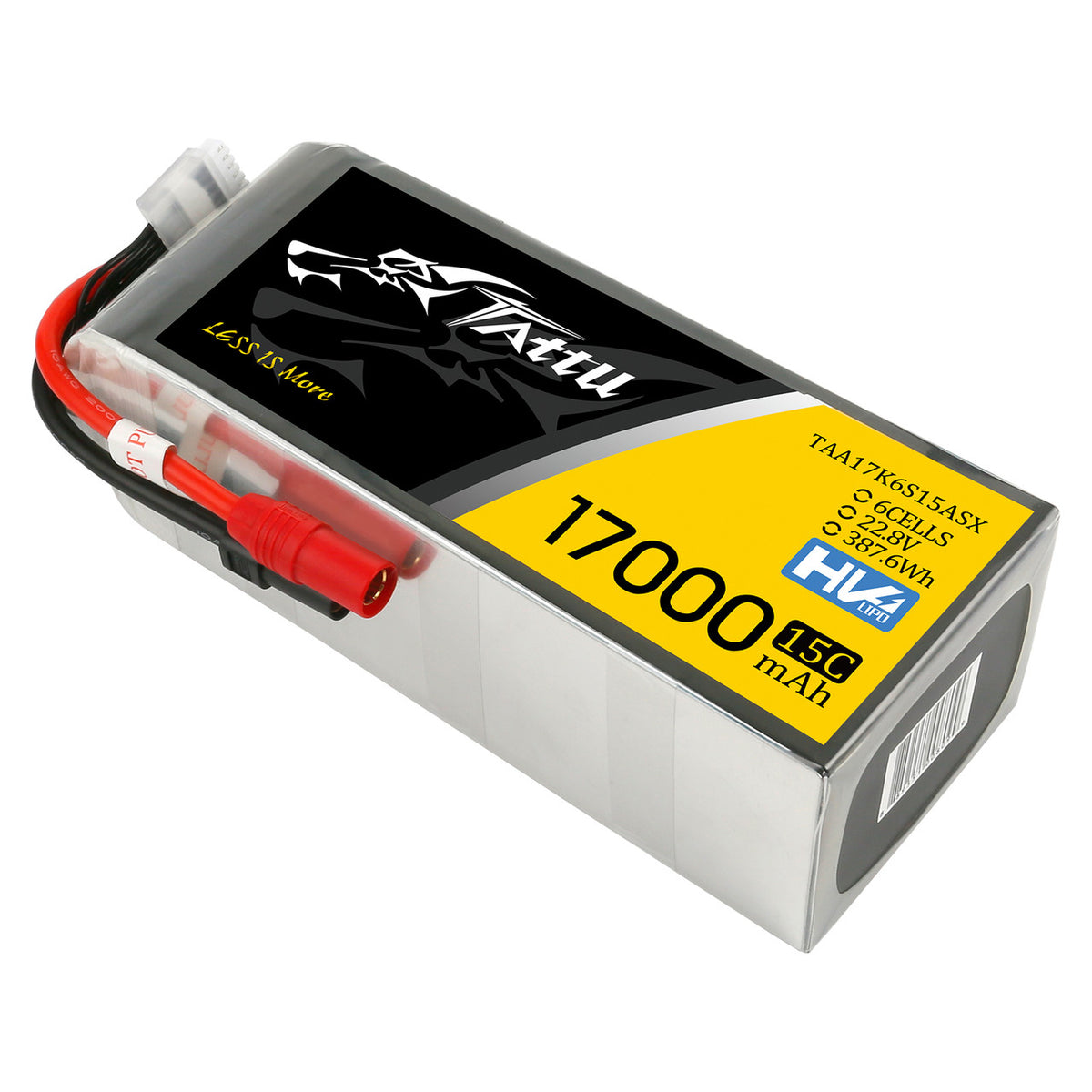

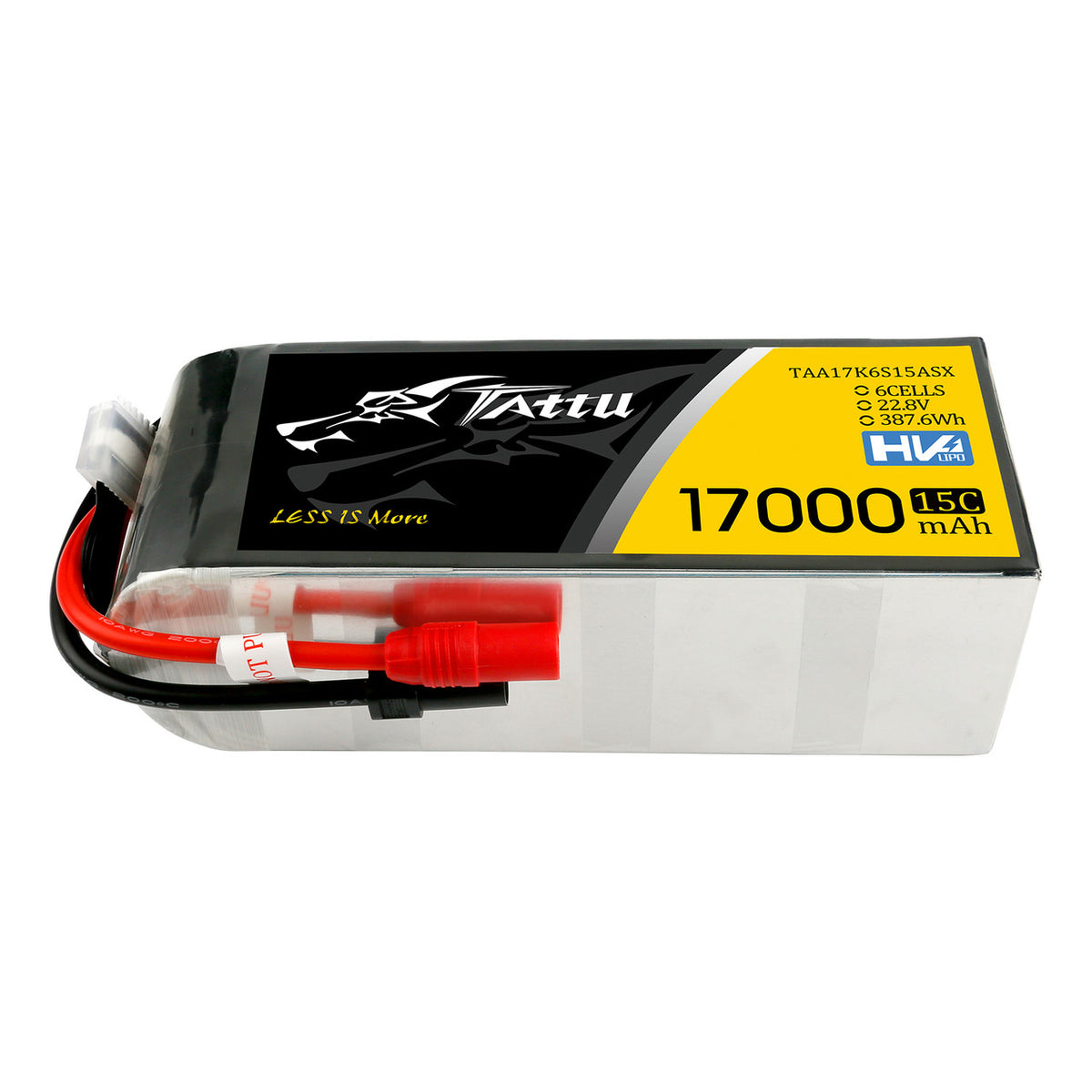

TATTU is a popular battery for drones, The Tattu 17000mAh 6S 22.8V 15C LiPO battery pack with AS150+XT150 plug professional aerial photography equipment and VTOLs. Less is more as the slogan: the single cell is 16000mAh, each cell connected in series, it is less in the whole industry, but TATTU is committed to providing more clients the perfect flight experience, no matter in the field of aerial photography, transport delivery, surveying and mapping, rescue, underwater, aerial inspections, agriculture, etc.
The battery is embedded with a G-Tech chip, enabling automatic identification, communication, and charging with the G-Tech Eco Smart Charger. It can also be charged regularly with a standard charger.
Note: Please do not choose expedited shipping unless you live in greater Sydney as batteries cannot be shipped by Air.
Features:
- Stable automatically stacking technology makes the single cell capacity can reach 17000mAh
- The most strict single cell capacity, voltage, resistance, discharge curve matching process.
- Superior Japan and Korea Lithium Polymer raw materials.
- Almost 200Wh/kg energy density.
Specifications:
- Minimum Capacity: 17000mAh
- Configuration: 6S1P / 22.8V / 6 cells
- Discharge Rate: 15C
- Max Burst Discharge Rate: 30C
- Net Weight(±20g): 1857g
- Dimensions: 192mm Length x 77mm Width x 60mm Height
- Balancer Connector Type:JST-XHR-7P
- Balancer Connector Type: JST-XHR-7P
Lipo Battery Safety
- Batteries should NEVER be left unattended while charging.
- Be absolutely sure that the Lithium Polymer charger settings are correct for the battery pack being charged – both voltage and current settings.
- Lithium Polymer must be CHARGED and STORED in a fire-safe container like a Lipo Sack.
- Do not charge batteries near flammable items or liquids.
- Keep a dry fire extinguisher nearby or a large bucket of dry sand, which is a cheap and effective extinguisher.
- Never charge inside an automobile even when parked.
- KEEP BATTERIES AWAY from children and pets at ALL times.
- Never discharge below 3.5V per cell as it may cause permanent damage and void warranty
- Battery may explode if damaged or disposed of in fire
- Never leave batteries inside a car on a hot day or any other place where the temperature may exceed 140F / 60C.
- Although environmentally friendly, lithium polymer cells must be FULLY discharged before disposal. Use a resistor setup (light bulbs, for example) to accomplish this, to avoid the possibility of a short-induced fire after disposal.
- Immediately discharge damaged batteries at 1/2 C rate and dispose
- Do not put the loose cells in a pocket, bag, or drawer where they could short-circuit against other items, or the battery tabs could be pressed against each other.
- Take care that the cells are not punctured, especially by metallic objects like hobby knives.
- If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention for this, or for burns.
