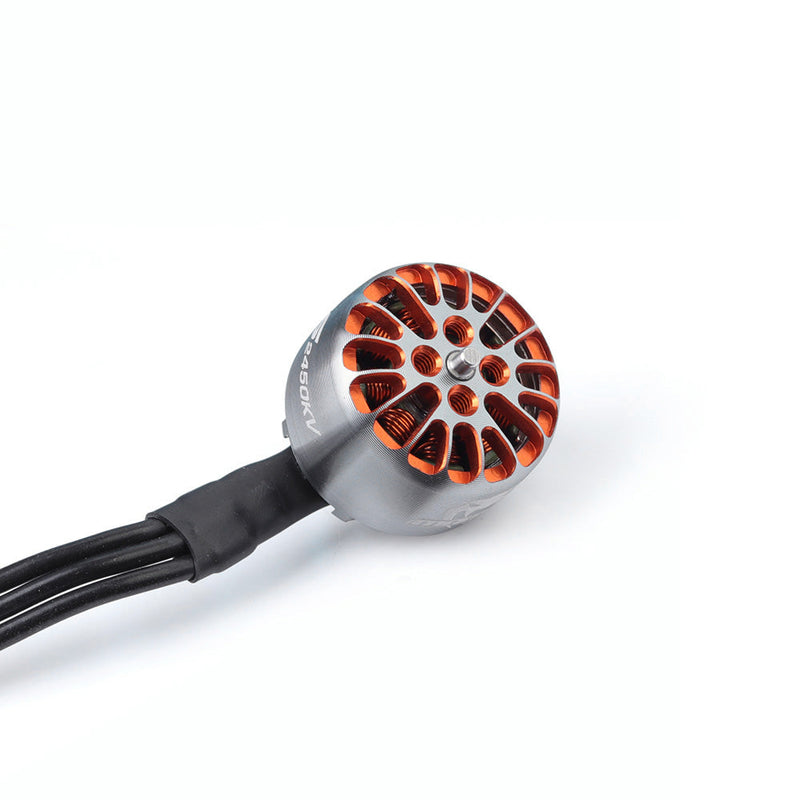

DIATONE MAMBA TOKA 1206 SERIES RACING MOTOR

Name: DIATONE MAMBA TOKA 1206 SERIES RACING MOTOR
Brand: DIATONE
SKU: JH60179
Price: 16.0 USD
Availability: OutOfStock

DIATONESKU: JH60179

KV: 3600KV

Variant

Price:

$16

Shipping calculated at checkout

Stock:

Quantity:

Add to Wishlist

Motor Performance Table

MAMBA TOKA 1206 2450KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 2inch~3inch
Bearing：5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 5.8A
ldle Current：6V/0.4A
Maximum Power: 160W
Internal Resistance：456Ω

MAMBA TOKA 1206 3600KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing：5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 10A
ldle Current：6V/0.4A
Maximum Power: 160W
Internal Resistance：236Ω

MAMBA TOKA 1206 4500KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 10.7A
ldle Current：6V/0.6A
Maximum Power: 128W
Internal Resistance：168Ω

MAMBA TOKA 1206 6000KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:2~3S (8.4V~12.6V)
Peak Current: 14.5A
ldle Current：5V/0.7A
Maximum Power: 174W
Internal Resistance：168Ω

MAMBA TOKA 1206 7500 KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:2~3S (8.4~12.6V)
Peak Current: 14.3A
ldle Current：4V/0.95A
Maximum Power: 114W
Internal Resistance：76Ω
