Description
Specifications

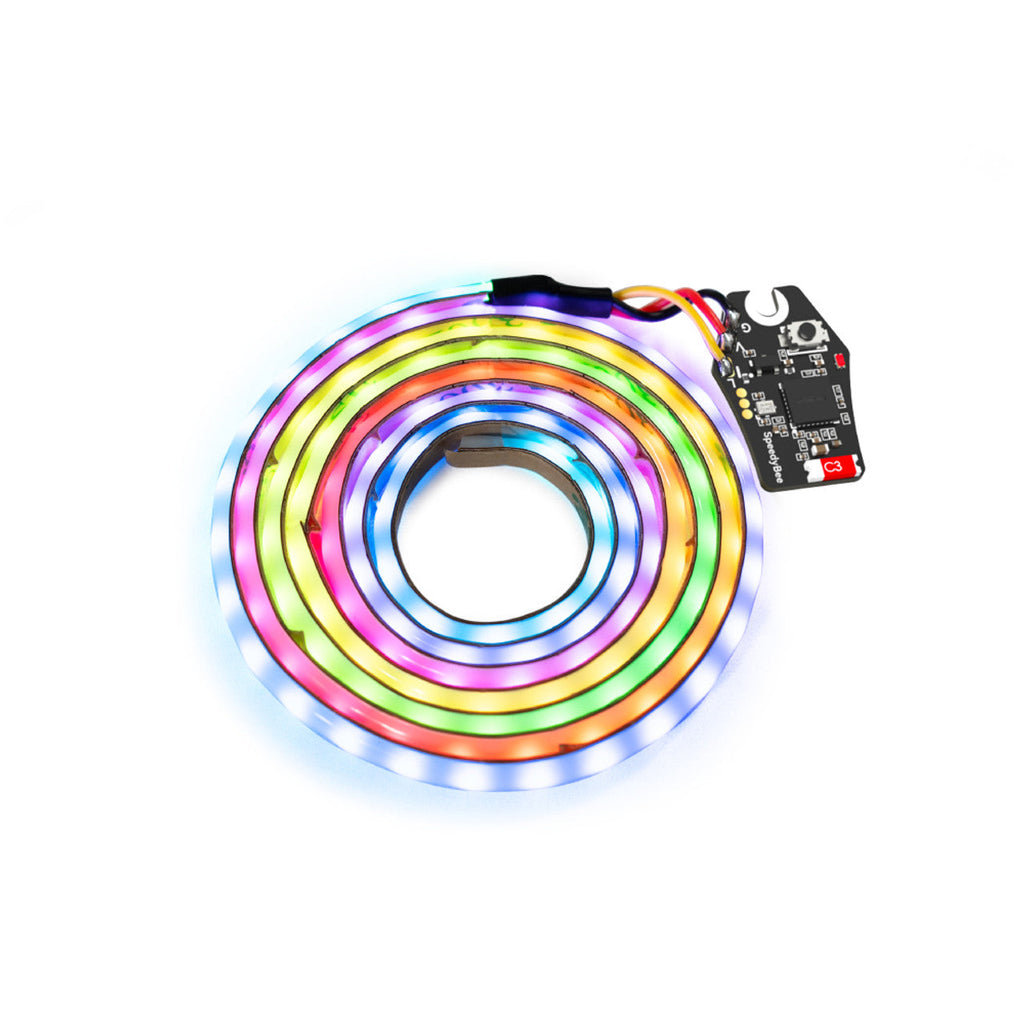

BEC Module
- Input Voltage 7.4V-25.2V
- Output Voltage 4.0V-4.5V
- Operating Current Max ~2A (5V)
- Bluetooth Supported
- WiFi Supported, activated automatically only when updating the module's firmware
- Communication Interface Serial (UART)
- Baudrate 115200
- Power Indicator Red light stays on indicating the module is powered
- Button Function Power on/off, switch effects
- Dimensions 23 x 15 x 6.3 mm (excluding screws and fittings)
- Weight 2g

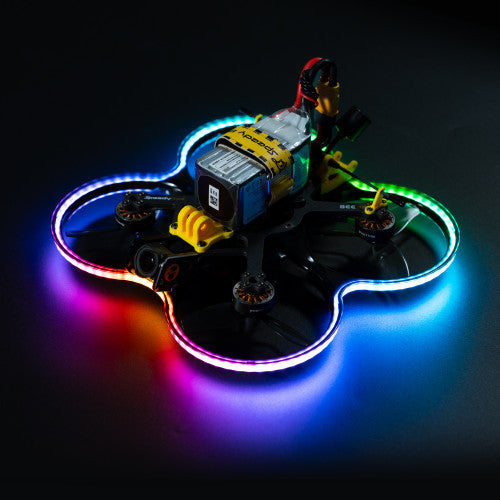

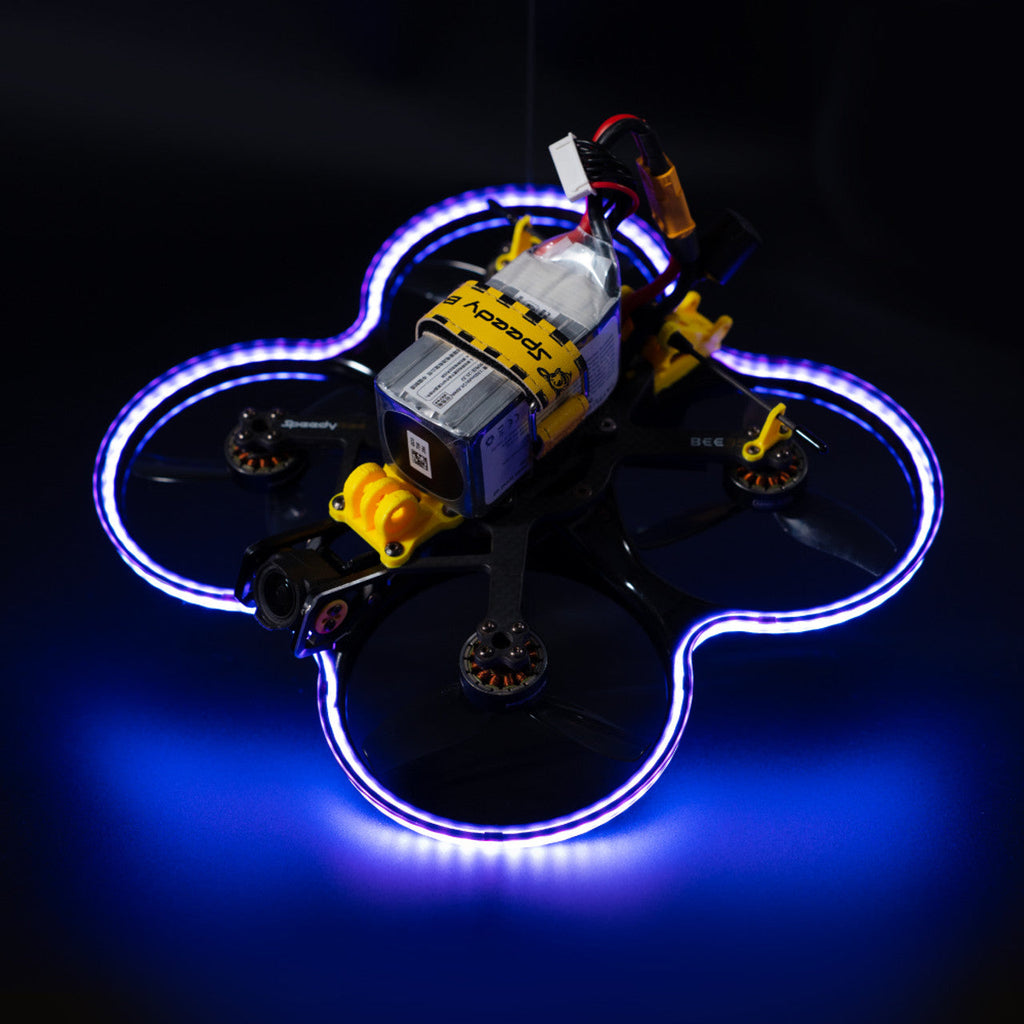

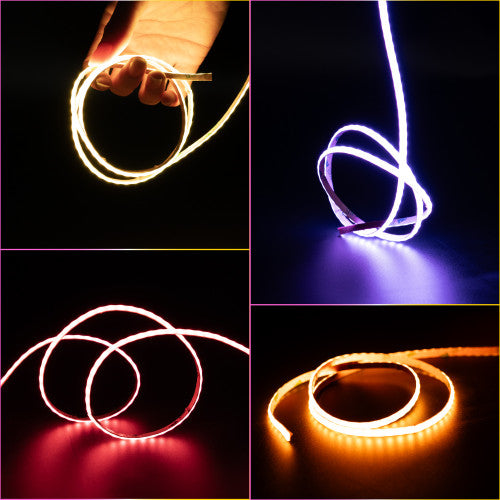

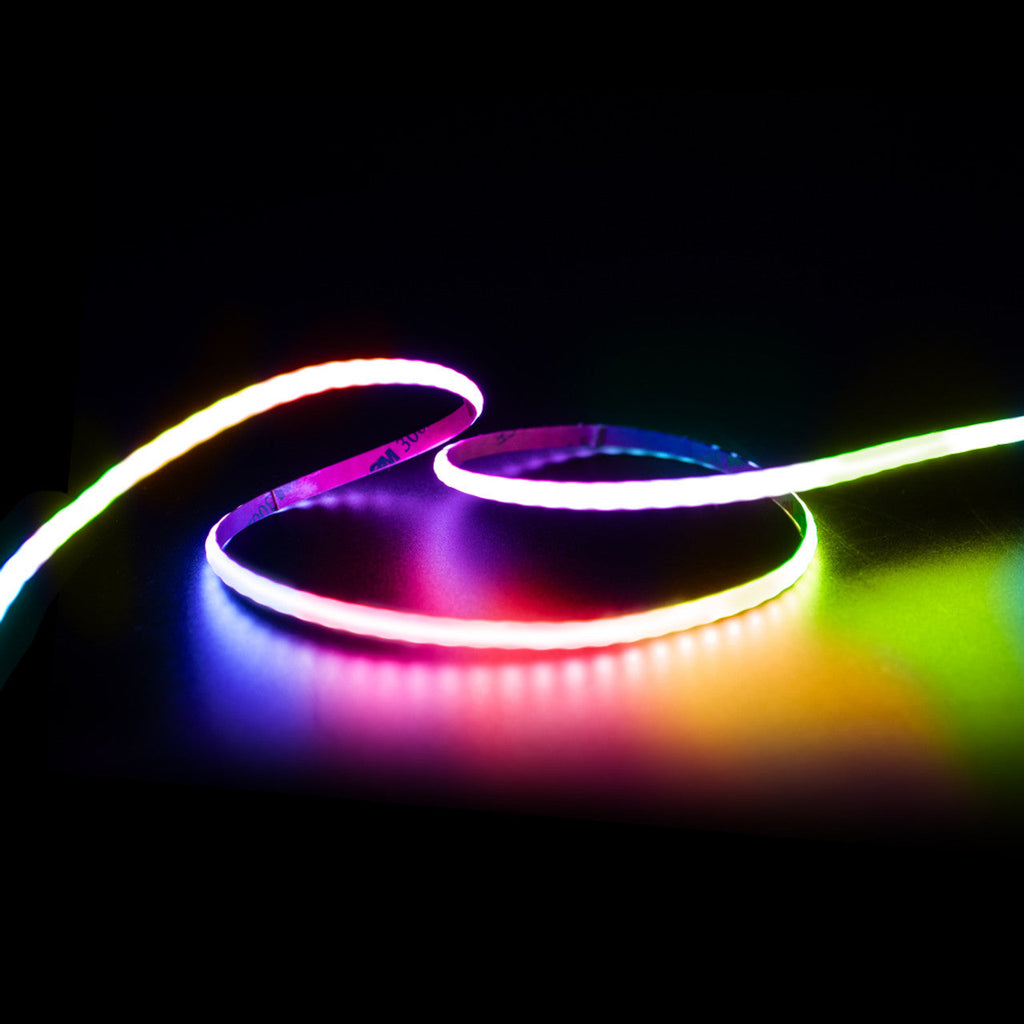

Meteor LED
- Length Suitable for Model SpeedyBee BEE35
- Number of LEDs 126
- Adhesive Backing Yes
- Input Voltage 4.0V-4.5V
- Operating Current Max ~1.7A (5V)
- Dimensions 785 x 5 x 2 mm
- Weight 10.5g
Manual
